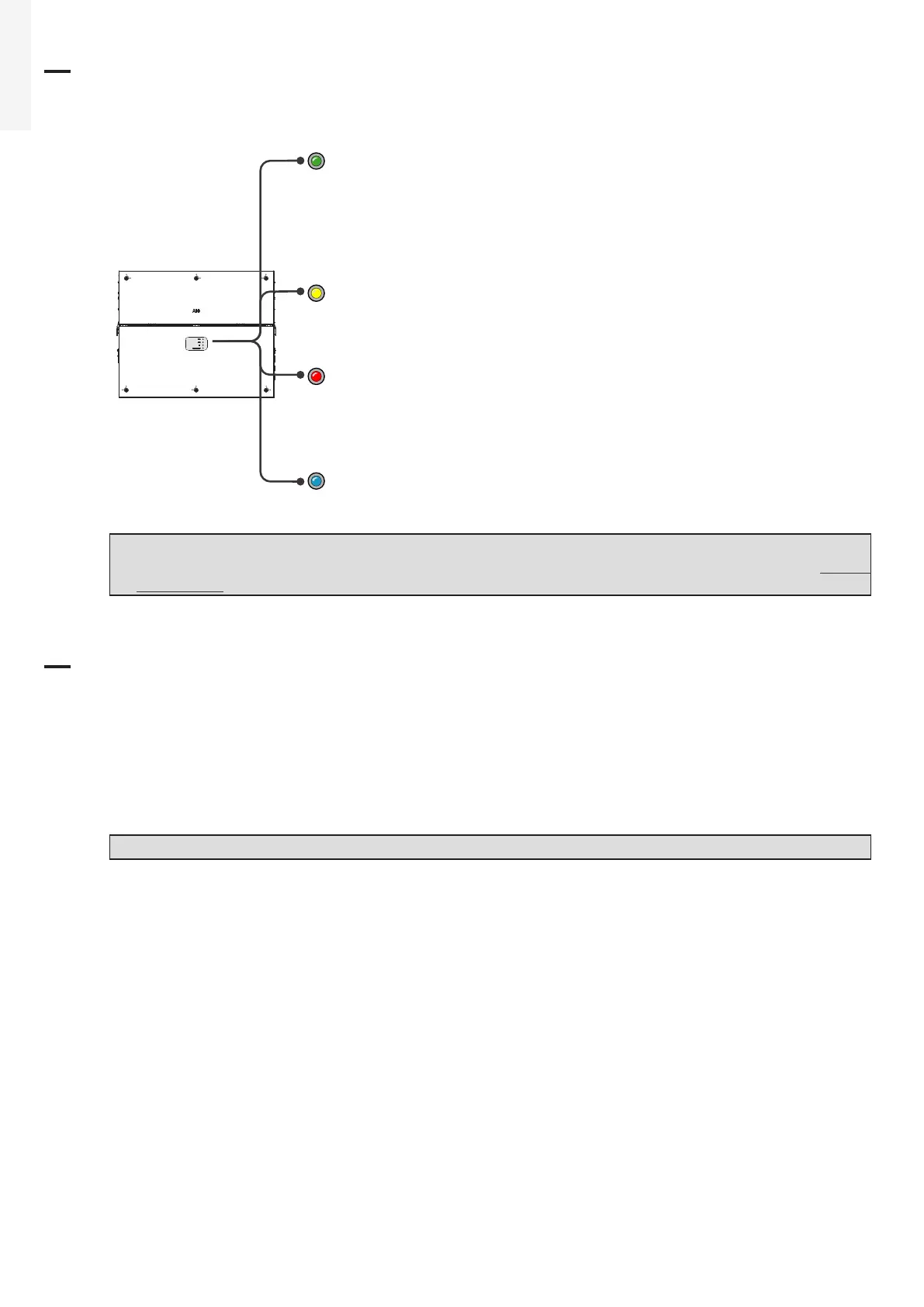

6.2 Description of the LED panel
PVS-175
POWER
Indicates that the inverter is functioning correctly.
When the unit is commissioned, while the grid is checked, this LED
blinks. If a valid grid voltage is detected, the LED remains
continuously lit, as long as there is sufficient sunlight to activate the
unit. Otherwise, the LED will continue to blink until the sunlight is
sufficient for activation.
ALARM
Indicates that the inverter has detected an anomaly. This type of
problem is highlighted in the Web User Interface and ABB Installer
for Solar Inverters APP.
GFI
The “GFI” (ground fault) LED indicates that the inverter has detected
a ground fault in the DC side photovoltaic generator. When this fault
is detected, the inverter immediately disconnects from the grid.
WLAN/LAN
Indicates the status of the Wireless or ETHERNET communication
lines.
NOTE – D The LEDs, in various multiple available combinations, can signal multiple conditions
other than the original single condition; see the various descriptions explained in the “LEDs
behaviour” paragraphs on this manual.
6.3 User interface
6.3.1 ABB Installer for Solar Inverters
ABB Installer for Solar Inverters APP allows to:
• Commission multiple inverters and set the system parameters.
• Update the inverter firmware.
NOTE – D Compatible with Android devices only.
6.3.2 Integrated Web User Interface
The integrated Web UI is accessible via wireless channel by using any WLAN enabled standard device (PC,
smartphone, tabled,….) and allow to:
• Commission a single inverter and to set the system parameters.
• Update the inverter firmware.
6.3.3 Aurora Vision Plant Management Platform
In addition to the local user interfaces, the inverter could be remote monitored and managed via Aurora
Vision Plant Management Platform cloud. Aurora Vision offert includes:
• Plant Portfolio Manager: web portal for solar professional.
• Plant Viewer: single web page for casual user.
• Plant Viewer for Mobile: mobile application for plant monitoring.
• ABB Ability™ for solar plants - Energy Viewer: mobile application for plant monitoring.
• Kiosk view: single HTML5 page for public visualization of plant data.
• API: web based tool for enabling the sharing of the data with a third party data.
