tor. The numerator is identical to the extended thermal capacity of the motor for trip-
ping and only allowed for a very short time duration..
4.4.1 Setting parameters
For operation purposes, the parameters need to be set as shown below:

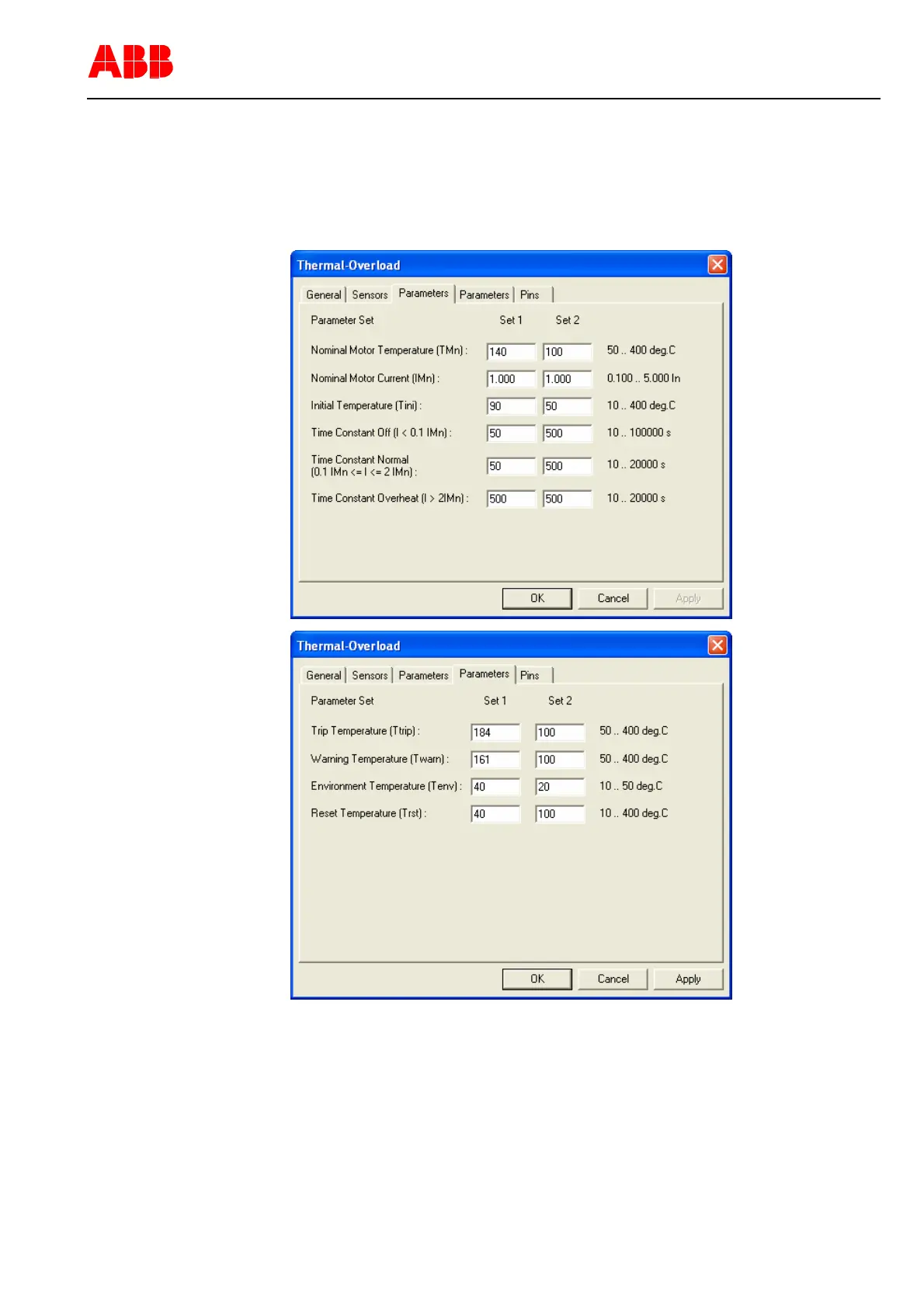

Figure 7: Setting parameters for thermal protection
1VTA100114-Rev. 04 en PTMV, 19.01.05 Motorprotection 20 / 66
