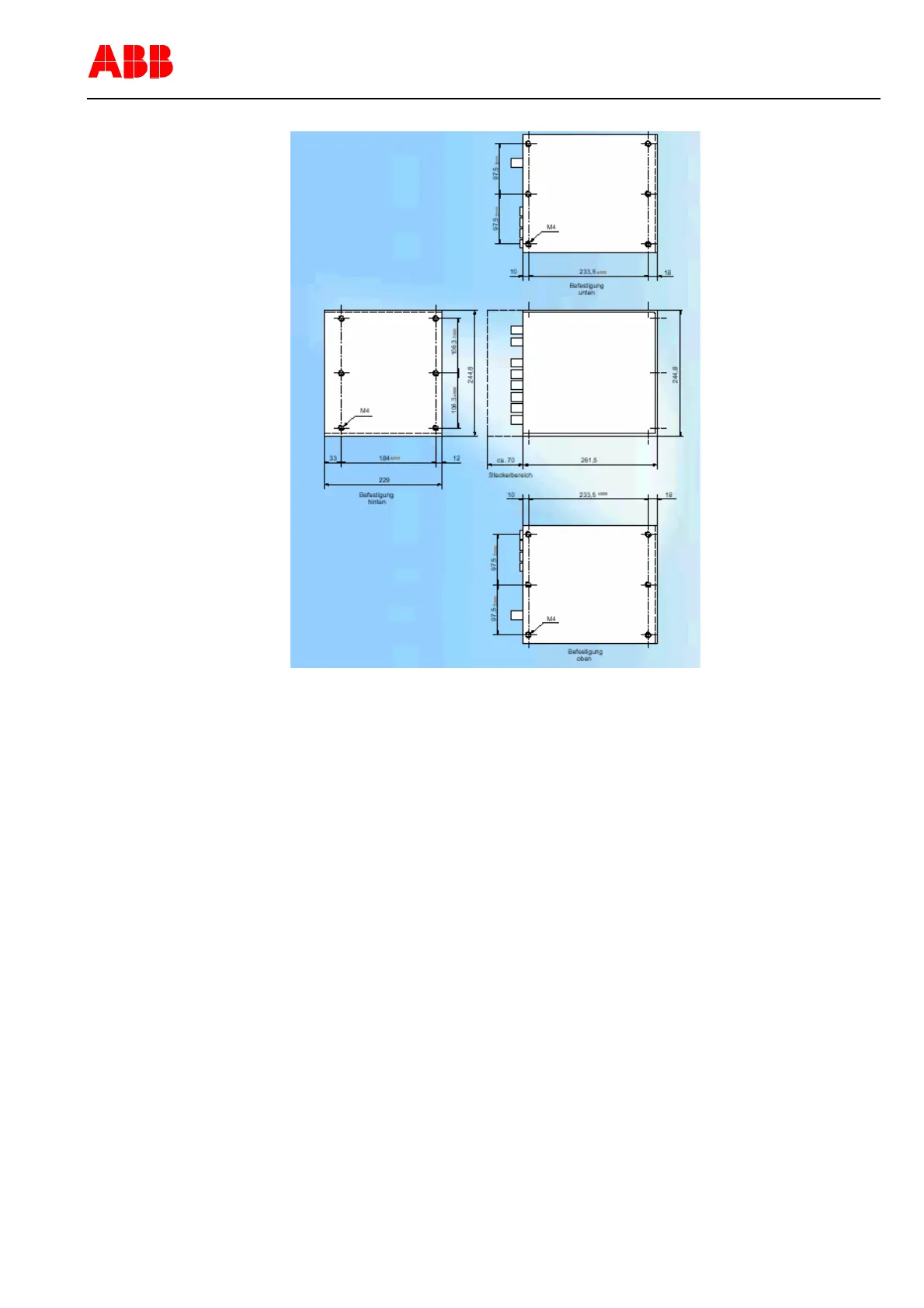

Figure 17: Dimension of the Central Unit case, wide version
7.2.1 Set-up Area and Required Environmental Conditions
Please note the following information regarding the set-up area:
Allow sufficient space for access to the. The connections must be easily accessible.
Access to the Central Unit in the LV compartment must be easy for the following rea-
sons:
to replace the unit,
to expand the unit,
to replace specific electronic equipment boards and
to replace specific modules if necessary.
Because the unit is sensitive to non-permitted severe environmental conditions, plea-
se observe the following:
The set-up area must be free of excessive air contamination (dust, aggressive
substances).
The natural air circulation around the unit must be free.
The set-up area must maintain the specified environmental conditions
