ABB REF615 J User Manual

3.14.6.4 Settings
Table 140: SRGAPC Non group settings
Parameter Values (Range) Unit Step Default Description
Reset Q1 0=Cancel
1=Reset
0=Cancel Resets Q1 output when set
Reset Q2 0=Cancel
1=Reset
0=Cancel Resets Q2 output when set
Reset Q3 0=Cancel
1=Reset
0=Cancel Resets Q3 output when set
Reset Q4 0=Cancel
1=Reset
0=Cancel Resets Q4 output when set
Reset Q5 0=Cancel
1=Reset
0=Cancel Resets Q5 output when set
Reset Q6 0=Cancel
1=Reset
0=Cancel Resets Q6 output when set
Reset Q7 0=Cancel
1=Reset
0=Cancel Resets Q7 output when set
Reset Q8 0=Cancel
1=Reset
0=Cancel Resets Q8 output when set
3.14.7 Move function block MVGAPC
3.14.7.1 Function block

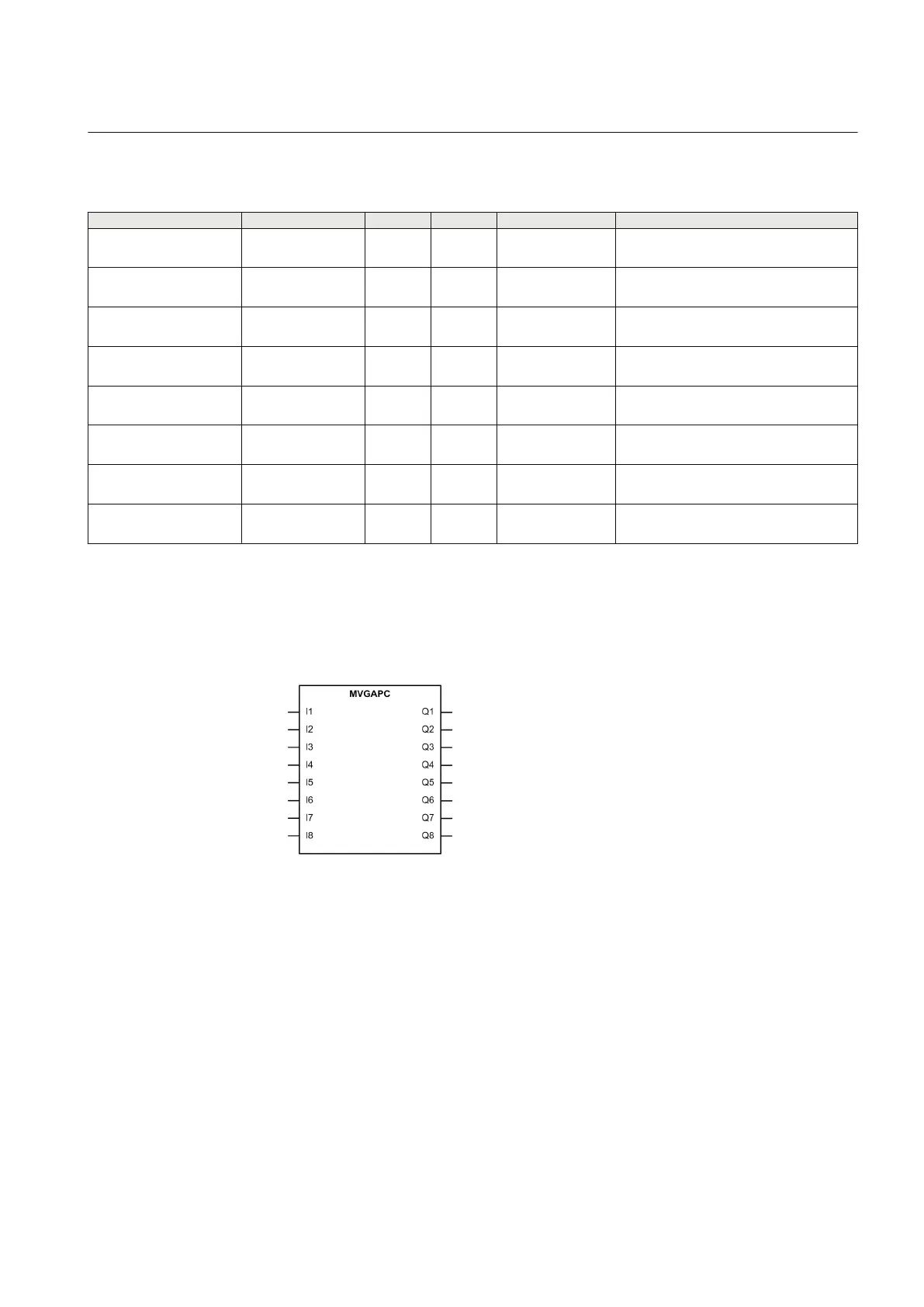

GUID-C79D9450-8CB2-49AF-B825-B702EA2CD9F5 V1 EN
Figure 66: Function block
3.14.7.2 Functionality
The move function block MVGAPC is used for user logic bits. Each input state is
directly copied to the output state. This allows the creating of events from
advanced logic combinations.
1YHT530004D05 D Section 3
Basic functions
615 series 129
Technical Manual

ABB REF615 J Specifications

General

Type	Feeder Protection Relay
Nominal Frequency	50/60 Hz
Rated Current	1 A / 5 A
Binary Outputs	Up to 8
Communication Protocols	IEC 61850, Modbus, DNP3
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault, Under/Over voltage
Operating Temperature	-25°C to +55°C
Ingress Protection	IP54
Weight	Approximately 1.5 kg
