ABB REF615 J User Manual

14
16
15
17
19
18
X110
SO1
SO2
20
22
21
23
24
X110
SO3
SO4
GUID-CBA9A48A-2549-455B-907D-8261E2259BF4 V1 EN

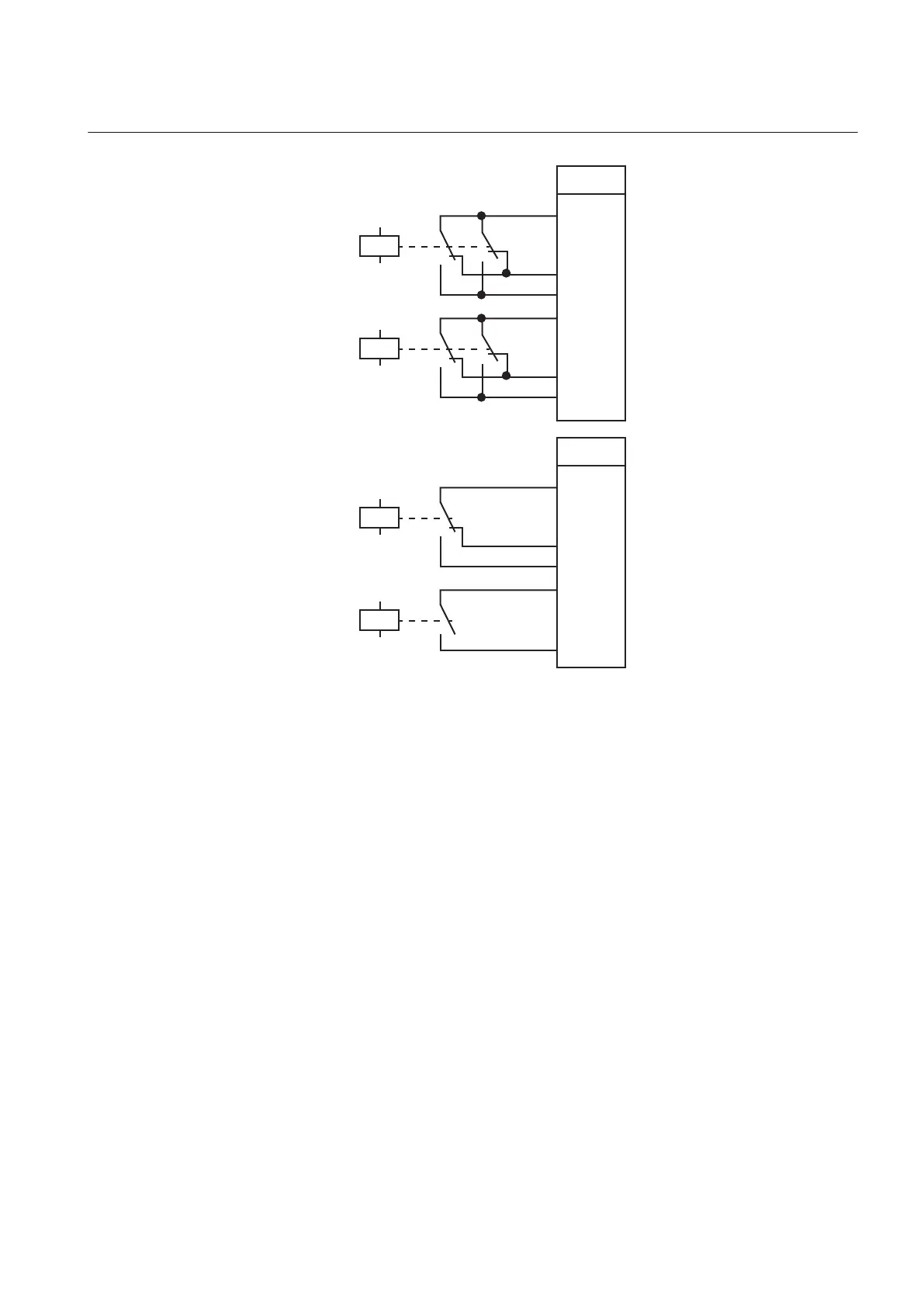

Figure 22: Signal output in BIO0005
3.10.2.4 Signal outputs SO1, SO2 and SO3 in BIO0006
The optional card BIO0006 provides the signal outputs SO1, SO2 and SO3. Signal
outputs SO1 and SO2 are dual, parallel form C contacts; SO3 is a single form C
contact.
1YHT530004D05 D Section 3
Basic functions
615 series 85
Technical Manual

ABB REF615 J Specifications

General

Type	Feeder Protection Relay
Nominal Frequency	50/60 Hz
Rated Current	1 A / 5 A
Binary Outputs	Up to 8
Communication Protocols	IEC 61850, Modbus, DNP3
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault, Under/Over voltage
Operating Temperature	-25°C to +55°C
Ingress Protection	IP54
Weight	Approximately 1.5 kg
