ABB REF615 J User Manual

IECA070698 V1 EN

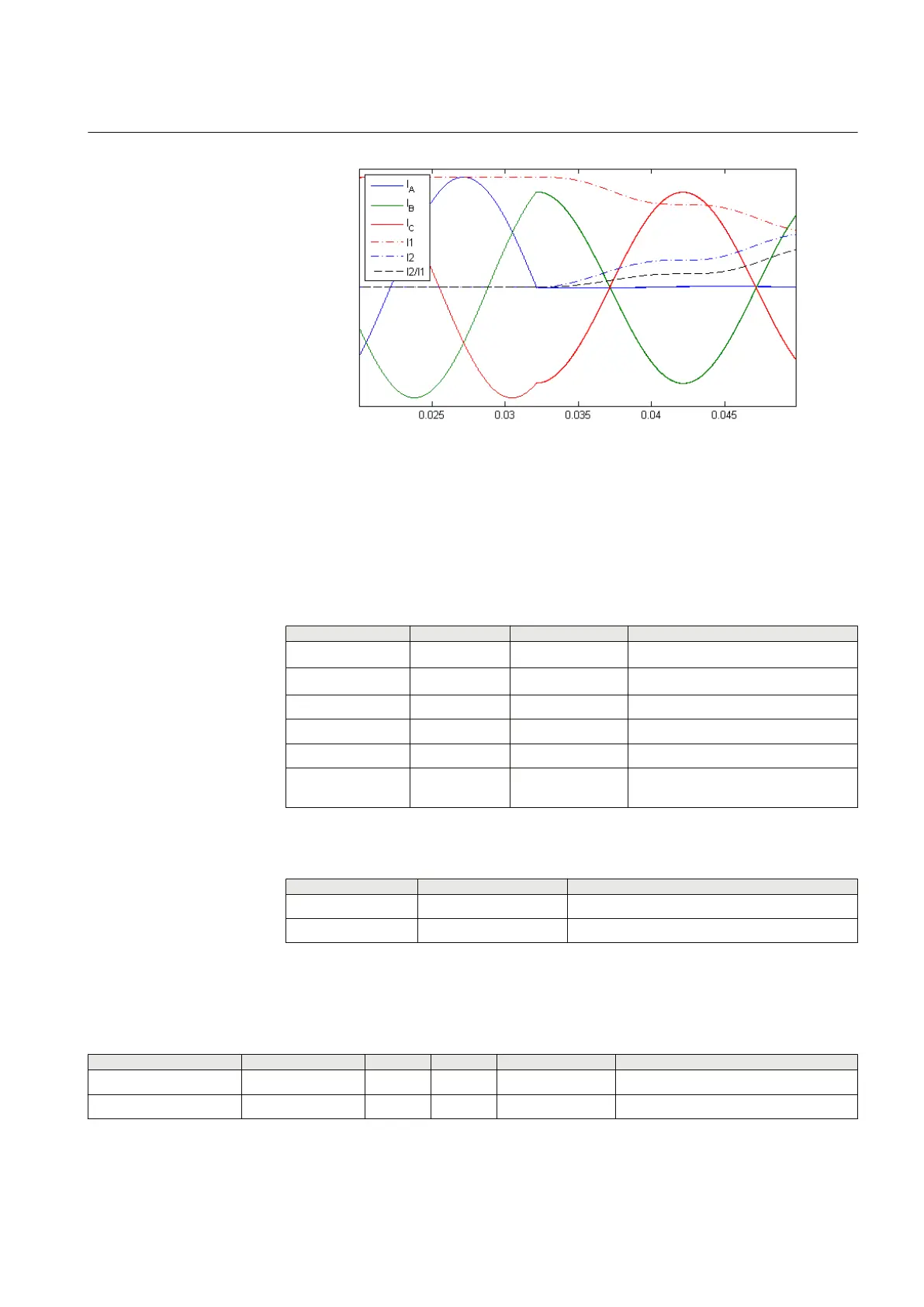

Figure 243: Three-phase current quantities during the broken conductor fault in
phase A with the ratio of negative-sequence and positive-sequence
currents
4.4.2.6 Signals
Table 365: PDNSPTOC Input signals
Name
Type Default Description
I
1
SIGNAL 0 Positive sequence current
I
2
SIGNAL 0 Negative sequence current
I_A SIGNAL 0 Phase A current
I_B SIGNAL 0 Phase B current
I_C SIGNAL 0 Phase C current
BLOCK BOOLEAN 0=False Block signal for activating the blocking
mode
Table 366: PDNSPTOC Output signals
Name
Type Description
OPERATE BOOLEAN Operate
START BOOLEAN Start
4.4.2.7 Settings
Table 367: PDNSPTOC Group settings
Parameter
Values (Range) Unit Step Default Description
Start value 10...100 % 1 10 Start value
Operate delay time 100...30000 ms 1 100 Operate delay time
1YHT530004D05 D Section 4
Protection functions
615 series 455
Technical Manual

ABB REF615 J Specifications

General

Type	Feeder Protection Relay
Nominal Frequency	50/60 Hz
Rated Current	1 A / 5 A
Binary Outputs	Up to 8
Communication Protocols	IEC 61850, Modbus, DNP3
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault, Under/Over voltage
Operating Temperature	-25°C to +55°C
Ingress Protection	IP54
Weight	Approximately 1.5 kg
