Adding ViewPort
The ViewPort widget displays the contents of a page.
1. Drag the ViewPort widget from the Object Types pane to the page.
2. In Object Properties, select the required page from the page drop-down list.
6.1.4.2 Configuring pages
• Add new widgets by dragging them from Object Types to the page.
• Resize the selected widgets in one of the alternative ways.
• Click and hold any resize point on the edge or corner of the widget and drag
the mouse to resize the widget.
• Change the width and height properties of the widget in the Object
Properties pane.
• Set the properties of the selected widget by modifying the values in the Object
properties pane.
Once widgets are placed on the HMI page, some of them (Monitors) can be linked
to the corresponding function block in the application configuration by using the
source property. The values are updated by the protection relay either
periodically (measurement) or in case of an event.
Some of the widget properties can be in an automatic mode. When the property
is in the automatic mode, the values are set automatically by the protection relay's
LHMI. If a value is specified for an automatic property, the LHMI displays the
specified value.
Some of the widget properties cannot be edited as they are read-
only values.

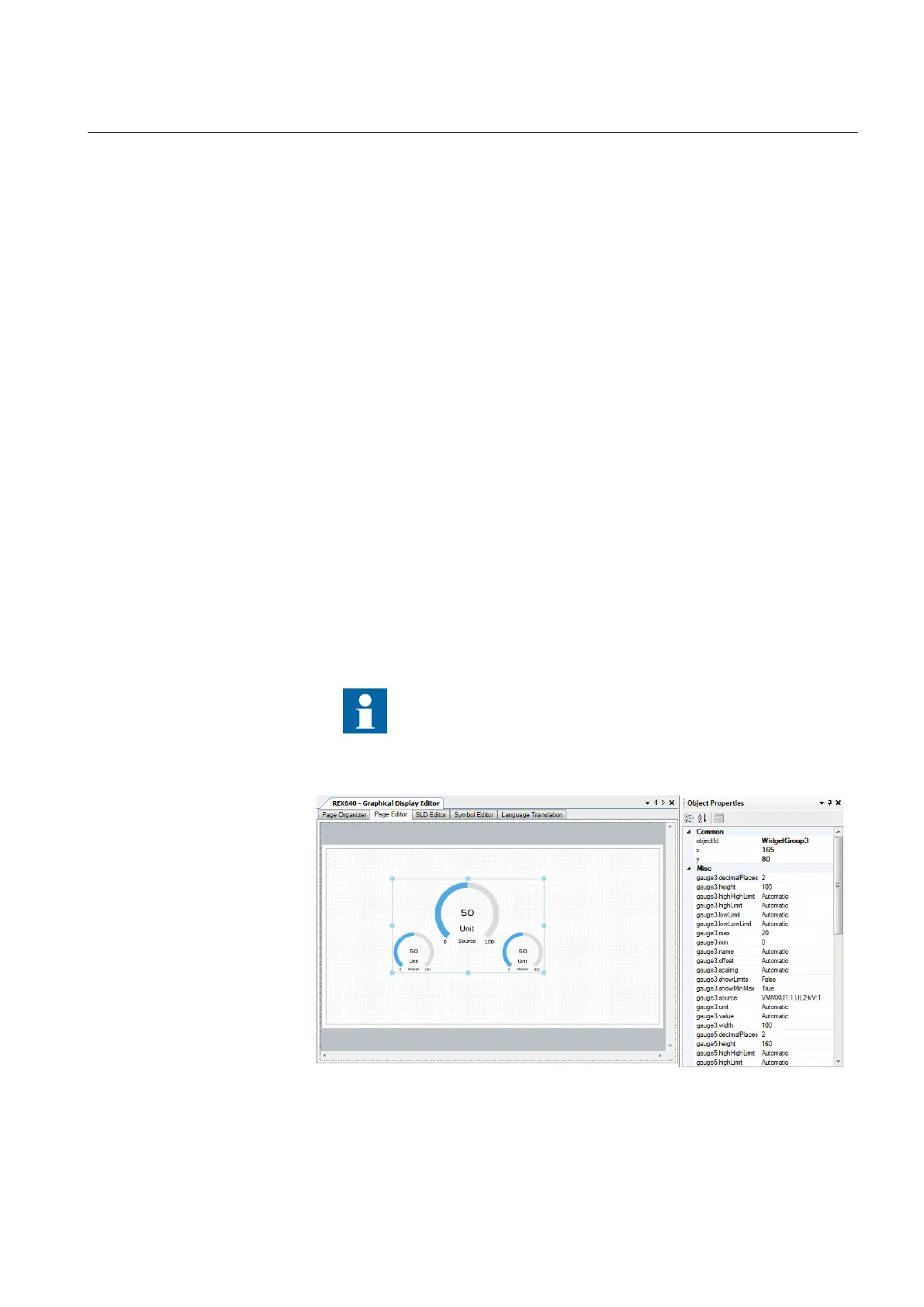

• Group or ungroup multiple widgets regardless of their type.
GUID-9E76EDB0-C036-4E6D-AA04-77A4AC04AF57 V1 EN
Figure 86: Grouping widgets
1MRS759117 A Section 6
LHMI engineering
REX640 107
Engineering Manual
