RTU500 series Remote Terminal Unit Test & Simulation
General Overview: Test Mode
ABB AG - 1KGT 150 924 V000 1 | 4-3
the Time administration test mode is temporary enabled (see Chapter 4.1)
the user has the privileges to perform commands (see Chapter 2.5.3)
The time can be set:
manually or
according to the client time of the connected PC
4.3 General Overview: Test Mode
4.3.1 Opening the user interface
If the Web server can be accessed, a button with name "Simulation & Test" can be observed. By
clicking the button an additional menu appears.
This feature is available:
if the test modus is generally enabled (see Chapter 2.5.1, "Security Policies")
if the Signal test mode is temporary enabled (see Chapter 4.1, "Enable Logging and Debug-
ging")
if the user has the privileges to perform commands (see Chapter 2.5.3, "User Roles"). See step
1 in the figure below.
Following menu items refer to the different test mode views (see step 2 in figure below):
Inputs and outputs (process data objects)
System events and system commands
Security Events

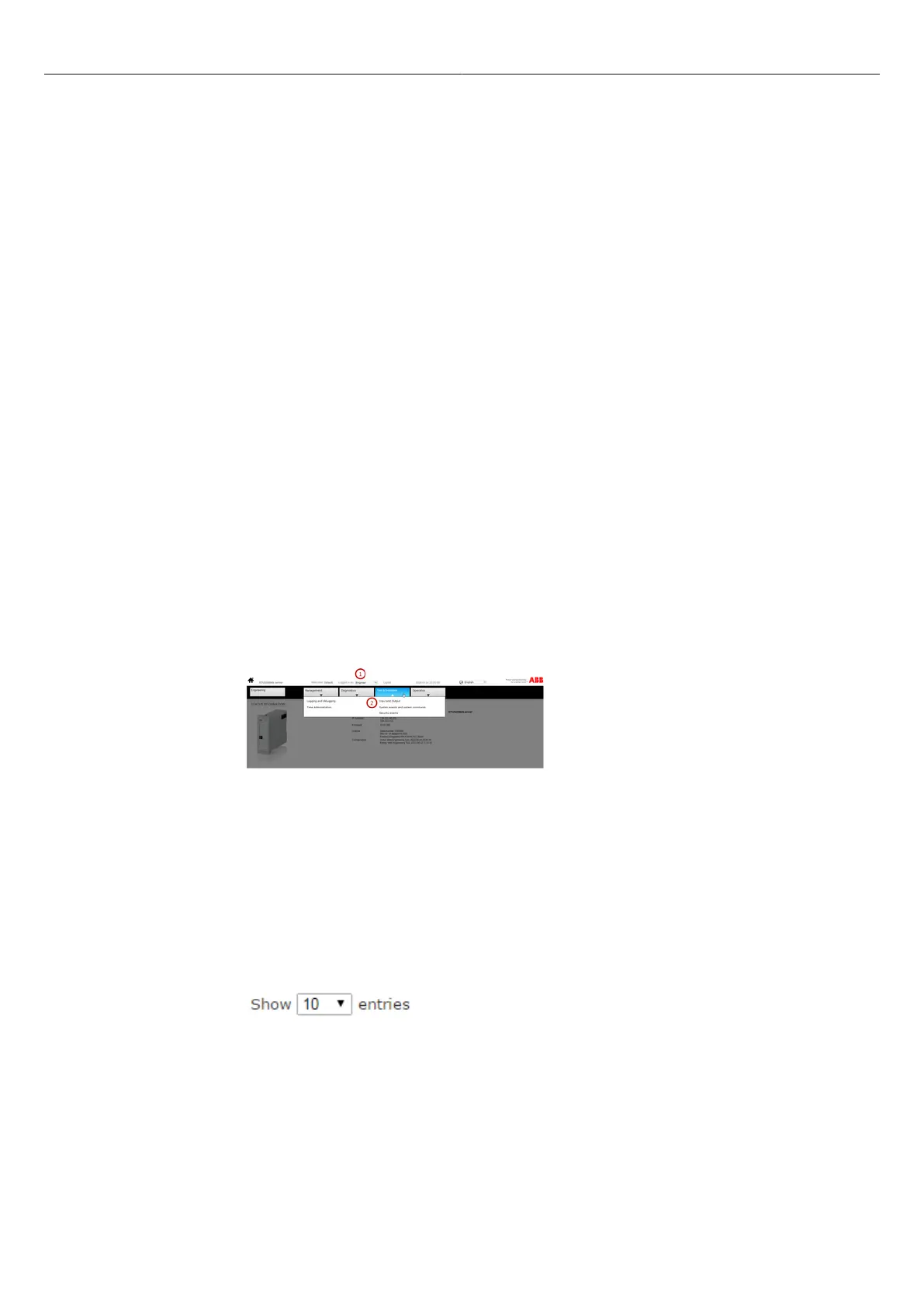

Figure 39: Test Mode user interface - inputs and outputs
4.4 Inputs and Outputs view - elements of the user interface
4.4.1 Signals grid
The central element of the user interface is a grid or table containing the signals which are configured
in the RTU500 series. The grid has eight columns and as many rows (each row representing a signal)
as it is selected by the user.
Figure 40: Control of the number of signals showed in the grid
