Use case 1: Pre-configured RTU520
ABB AG - 1KGT 150 924 V000 1 | 6-1
6 Engineering
6.1 Use case 1: Pre-configured RTU520
RTU520 storage
RTUl500

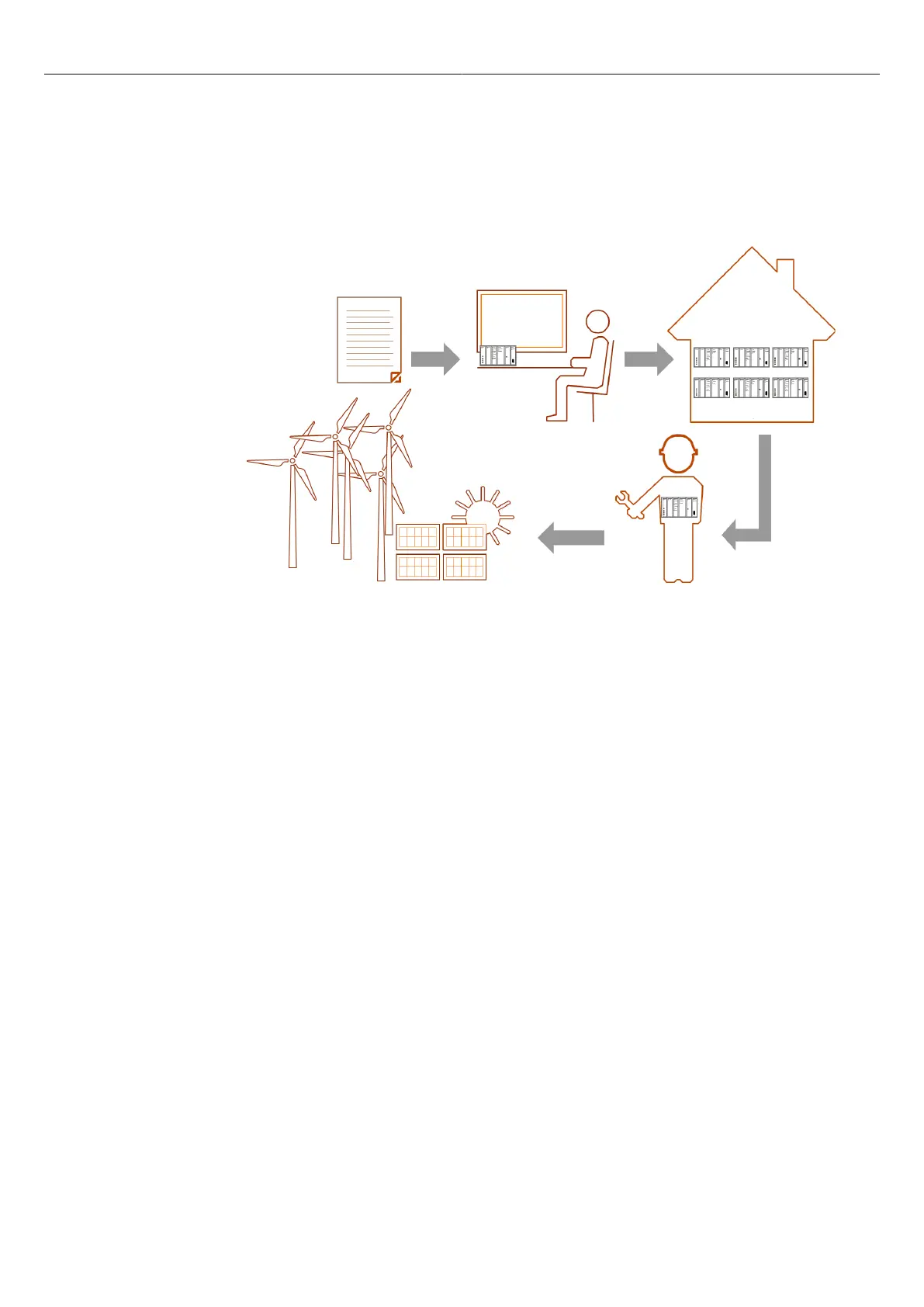

Figure 81: Use case 1: Pre-configured RTU520
With this engineering use case the RTU520 is preconfigured with RTUtil500. Within the RTUtil500
configuration several parameters can be defined as online engineering parameters. These parame-
ters must then be configured via the Web server. For more details please referr to the demonstration
video: Web server engineering: Pre-configured RTU520.
This feature is available:
– for RTU520
– if a base configuration file generated by RTUtil500 with pre-configuration is loaded to the RTU
(see Chapter 2.1)
– the online parameter change is generally enabled (see Chapter 2.5.1)
– the user has the privileges to do online parameter changes (see Chapter 2.5.3)
