6.2 Use case 2: RTU520 online configuration
Web Applicaon

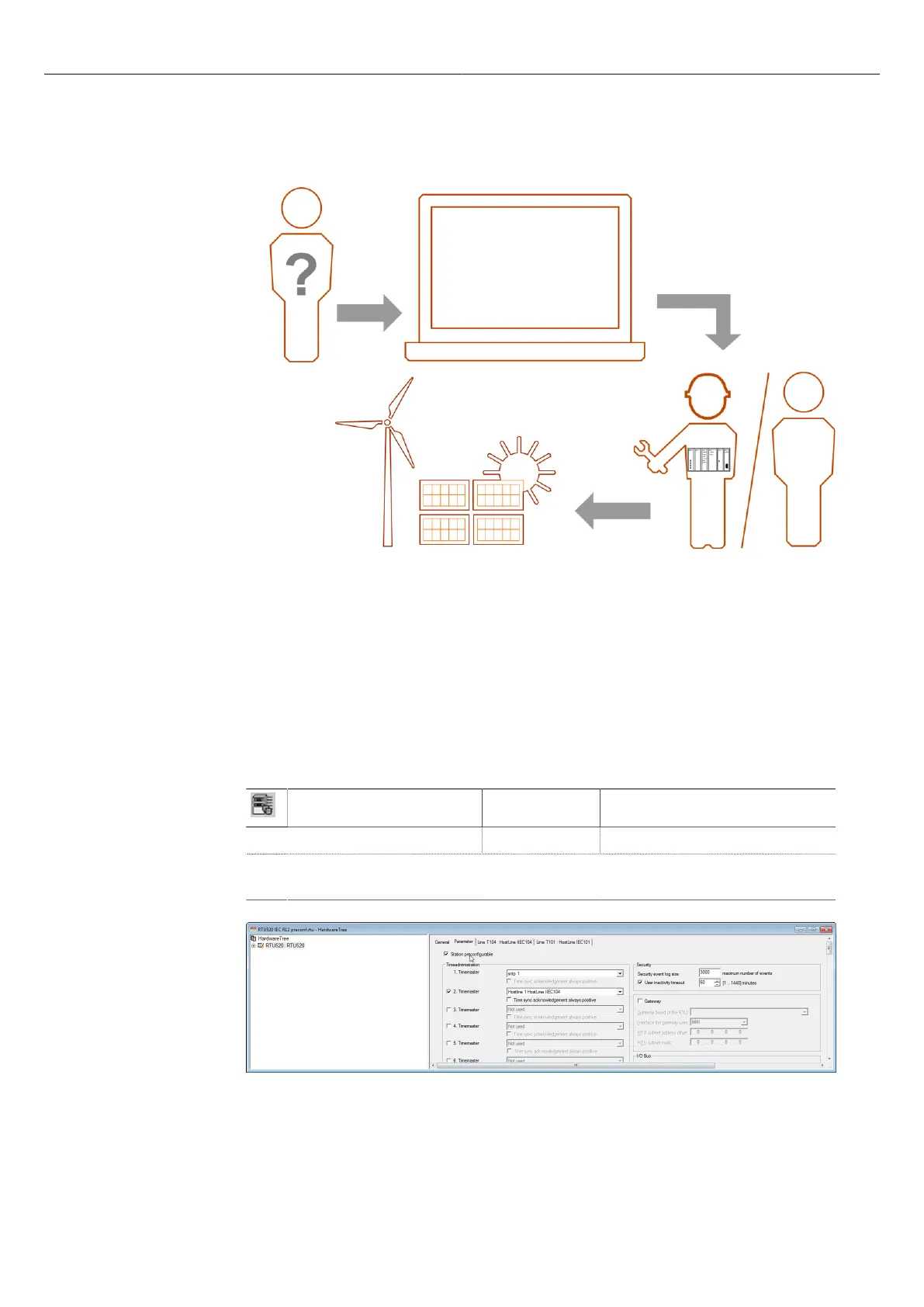

Figure 82: RTU520 online configuration
With this use case the complete RTU520 configuration will be done via the Web server, without
using RTUtil560. For more details please referr to the demonstration video: Web server engineering:
RTU520 easy engineering.
This feature is available:
– for RTU520
– if no configuration file generated by RTUtil500 is active (see Chapter 2.1)
– the online configuration change is generally enabled (see Chapter 2.5.1)
– the user has the privileges to do online configuration (see Chapter 2.5.3)
Parameter name Default Parameter location
Station preconfigurable disabled RTU - Parameters
only pre-configuration is done via RTUtil500.
Final parameter setting with RTU Web server
Figure 83: RTUtil560 configuration parameter: Station preconfigurable
