Operation RTU500 series Remote Terminal Unit
Process Archives
5-2 | 1KGT 150 924 V000 1 - ABB AG

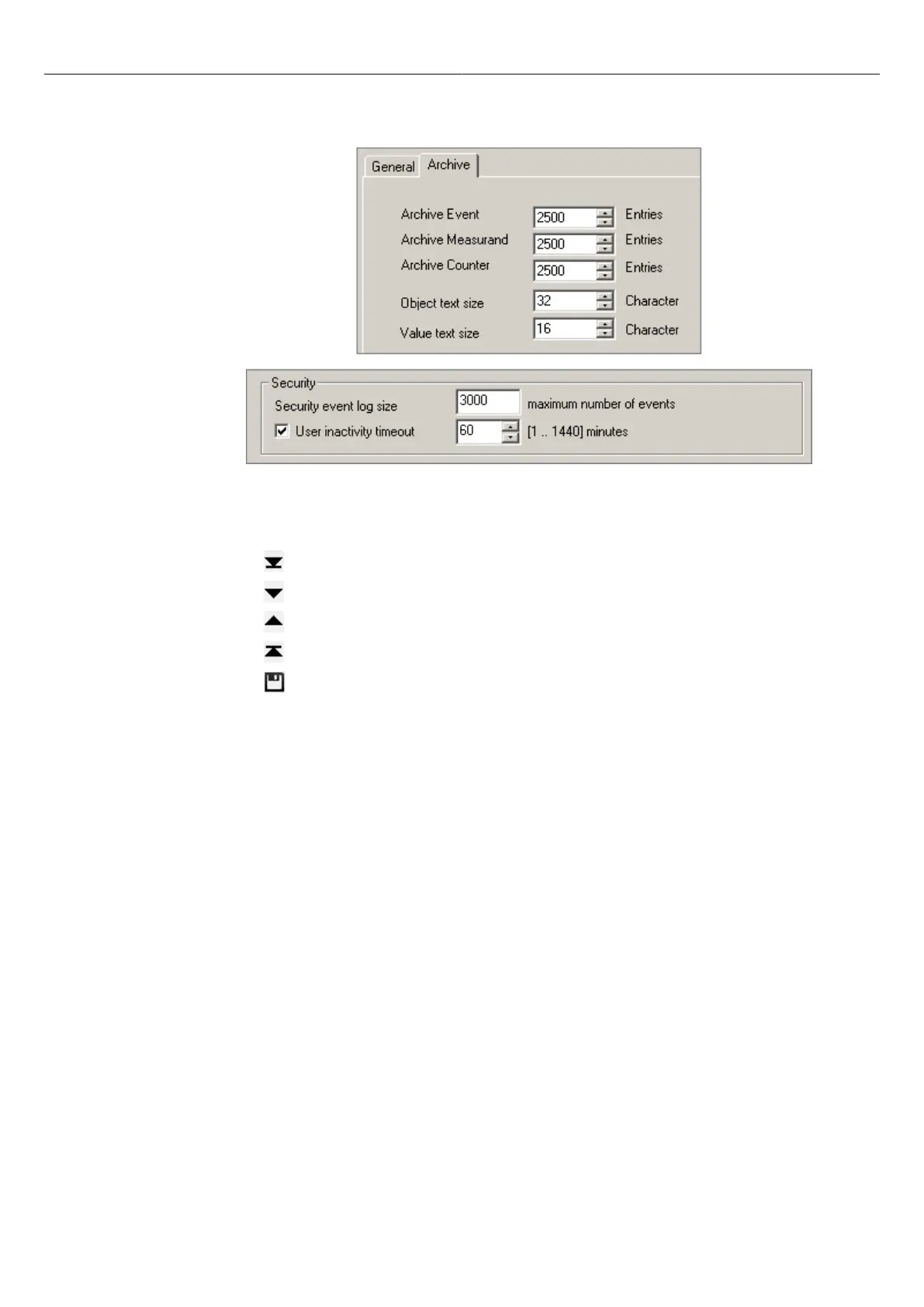

Figure 74: Archive Configuration in RTUtil500
One page of a list shows in maximum 50 events. To navigate inside the archive lists there are sev-
eral buttons above the list. The buttons have the following meanings (from left to right):
•
Go to end of the list to show the newest entries.
•
To scroll one page forward in the list (towards newer entries).
•
To scroll one page backward in the list (towards older entries).
•
Go to beginning of the list to show the oldest entries.
•
Download the complete list in predefined CSV format to the PC.
5.3 Process Archives
Process archives are available for:
•
Events and Indications
•
Measurements
•
Pulse Counter Values
