RTU500 series Remote Terminal Unit PPP Installation
Windows 7
ABB AG - 1KGT 150 924 V000 1 | 8-3

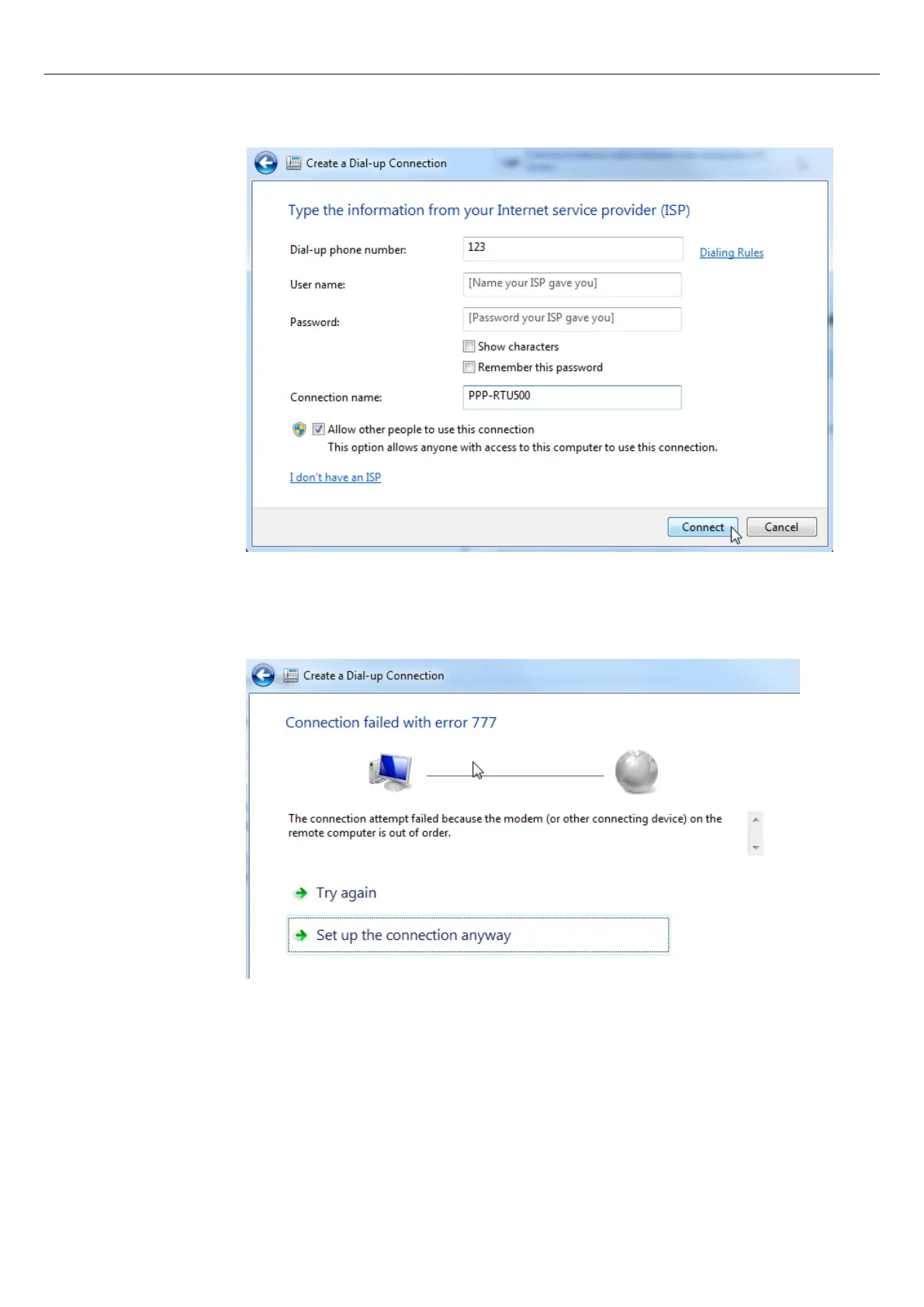

Figure 96: Create a Dial-up Connection (1)
Fill in an arbitrary Dial-up phone number to enable Connect. However, there is no option for Direct
Serial Cable Connection on this dialog. Enter a suitable Connection name.
Figure 97: Create a Dial-up Connection (2)
Select Set up the connection anyway.
To configure the PPP connection, select Start > Control Panel > Network and Sharing Center
> Change adapter settings.
