RTU500 series Remote Terminal Unit USB RNDIS Driver Installation
Windows 7
ABB AG - 1KGT 150 924 V000 1 | 9-7

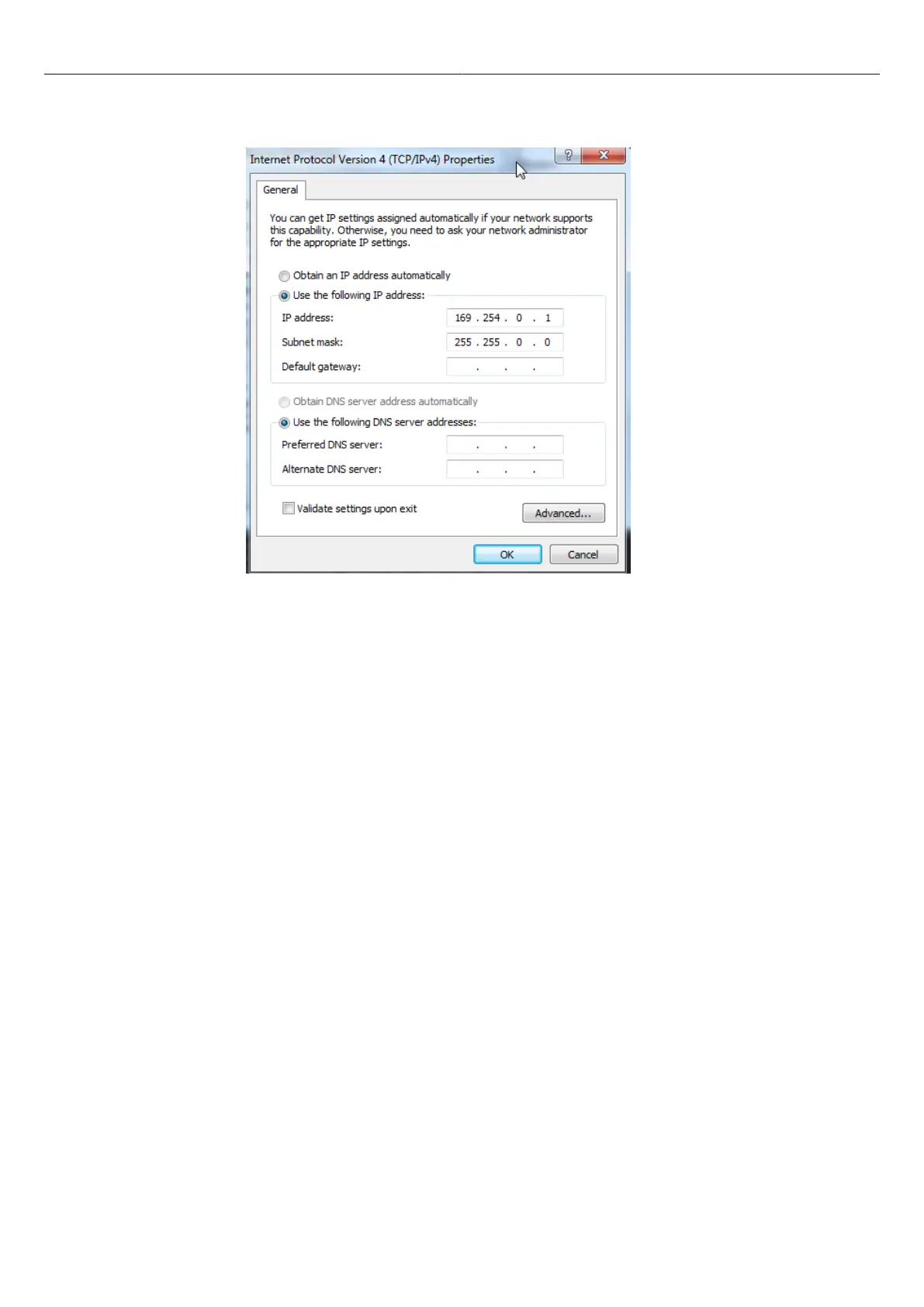

Figure 116: Internet Protocol Version 4 (TCP/IPv4) Properties
Select “OK” and “Close” buttons. The USB RNDIS device is now configured on the Windows 7
machine and is available for use.
The new network interface on the RTU is configured automatically with the IP address 169.254.0.10.
That means different IP addresses in the same subnet are configured on each side and communi-
cation can be started. The result is the same as creating two network devices and giving one to the
RTU and one to the Windows 7 machine.
From Windows 7 machine try to verify the connection to the RTU:
ping 169.254.0.10
Successful pings should be displayed.
Launch web browser with URL (If necessary bypass proxy server.):
http://169.254.0.10
When the USB RNDIS device is up and running you will be able to use it as you do with devices
with a “regular” Ethernet connection to the RTU.
