RTU500 series Remote Terminal Unit Introduction
Presentation of the RTU500 series Web Pages
ABB AG - 1KGT 150 924 V000 1 | 1-5

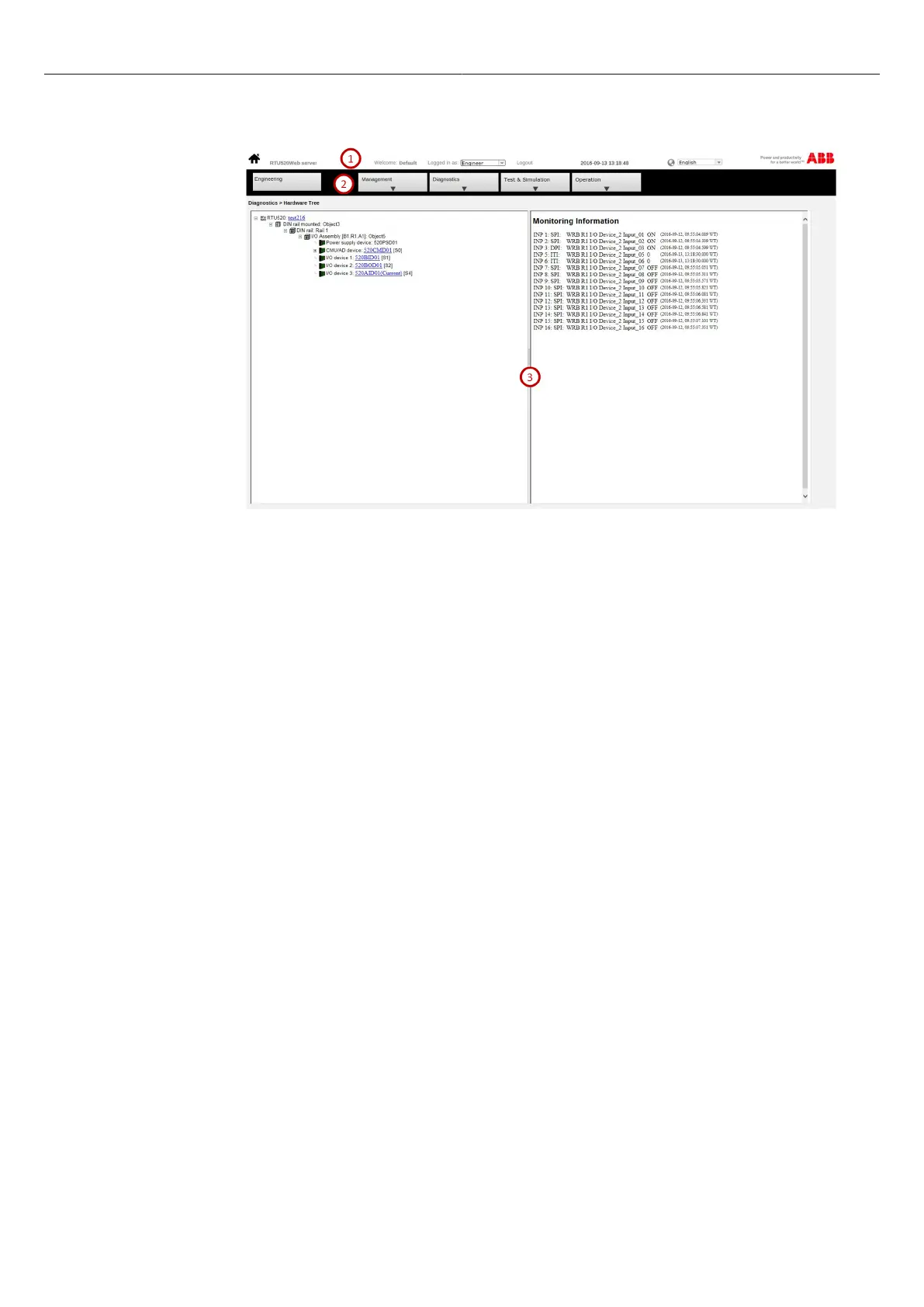

Figure 6: Structure of the Web server pages
The 'status frame' (1) is fixed during runtime, but depending on the configuration of the RTU.
The navigation tiles (2) is fixed during runtime and used to navigate through the different Web server
functions.
The 'presentation frame' (3 left side) depends also on the configuration of the RTU, but will not be
updated, as long as the frame is shown.
The 'selection frame' (3 right side)
•
will be updated cyclically (approximately every 2 seconds) or
•
must be updated on demand by the user.
