Part Function
Cable gland plate Plate with openings for the AC input cable and the
control signal cables
Input AC fuse To connect or disconnect the AC power input
Auxiliary AC fuse To connect or disconnect the AC power input to the
auxiliary power supply breaker 1
RCD breaker To connect or disconnect the AC power input to or
from the auxiliary power for the control circuit
Auxiliary breaker To connect or disconnect the AC power input from the
auxiliary AC fuse to the auxiliary transformer
Power modules To provide the physical containment for various power
components

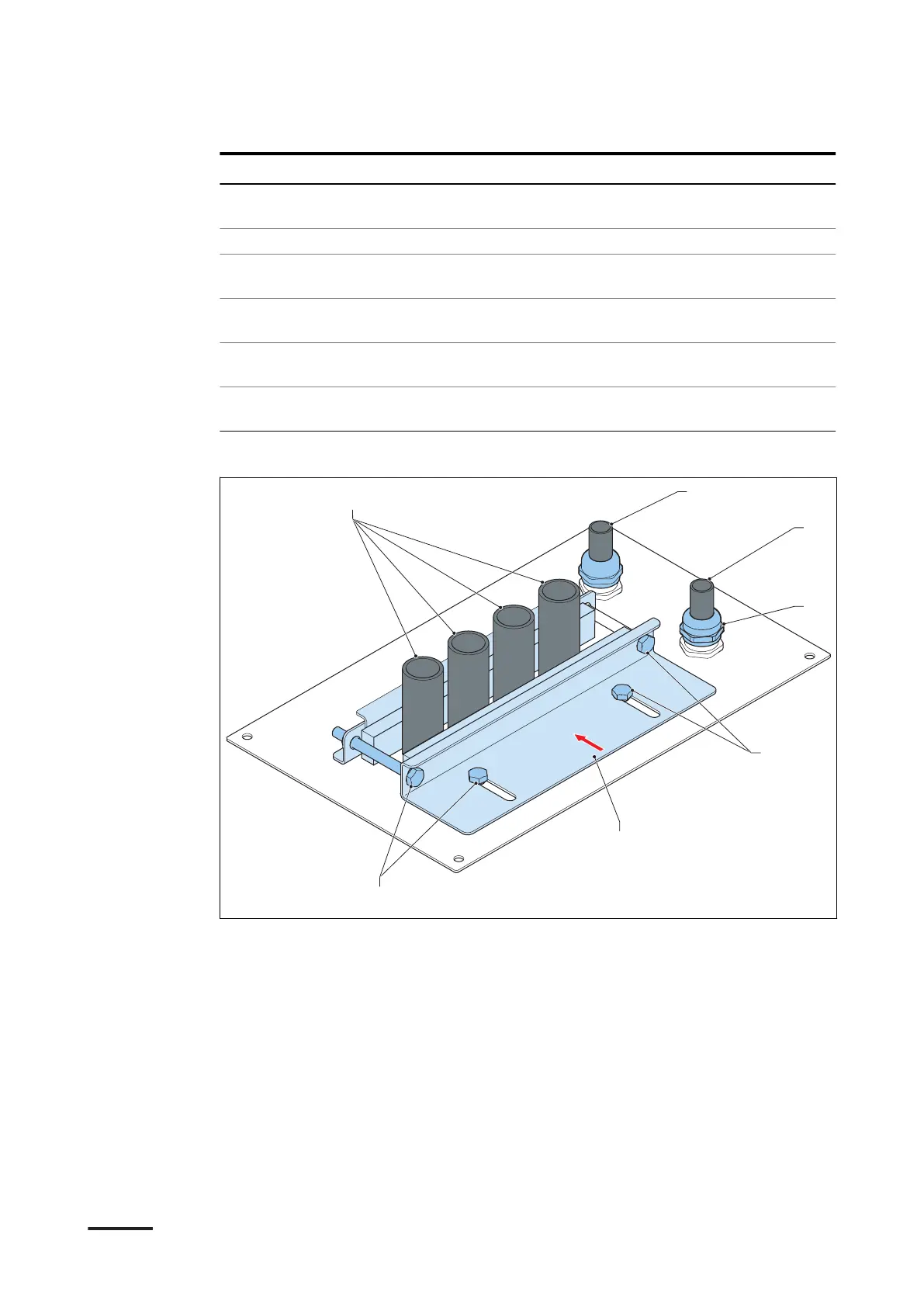

3.4.4 Overview of the cable glands of the charge post
C
B
A
D
E
F
E
A Wires of the AC input cable
B Wire of the tilt sensor
C Ethernet cable
D Cable gland
E Fasteners
F Sliding plate
Description
9AKK108466A3703-EN | 001 27
