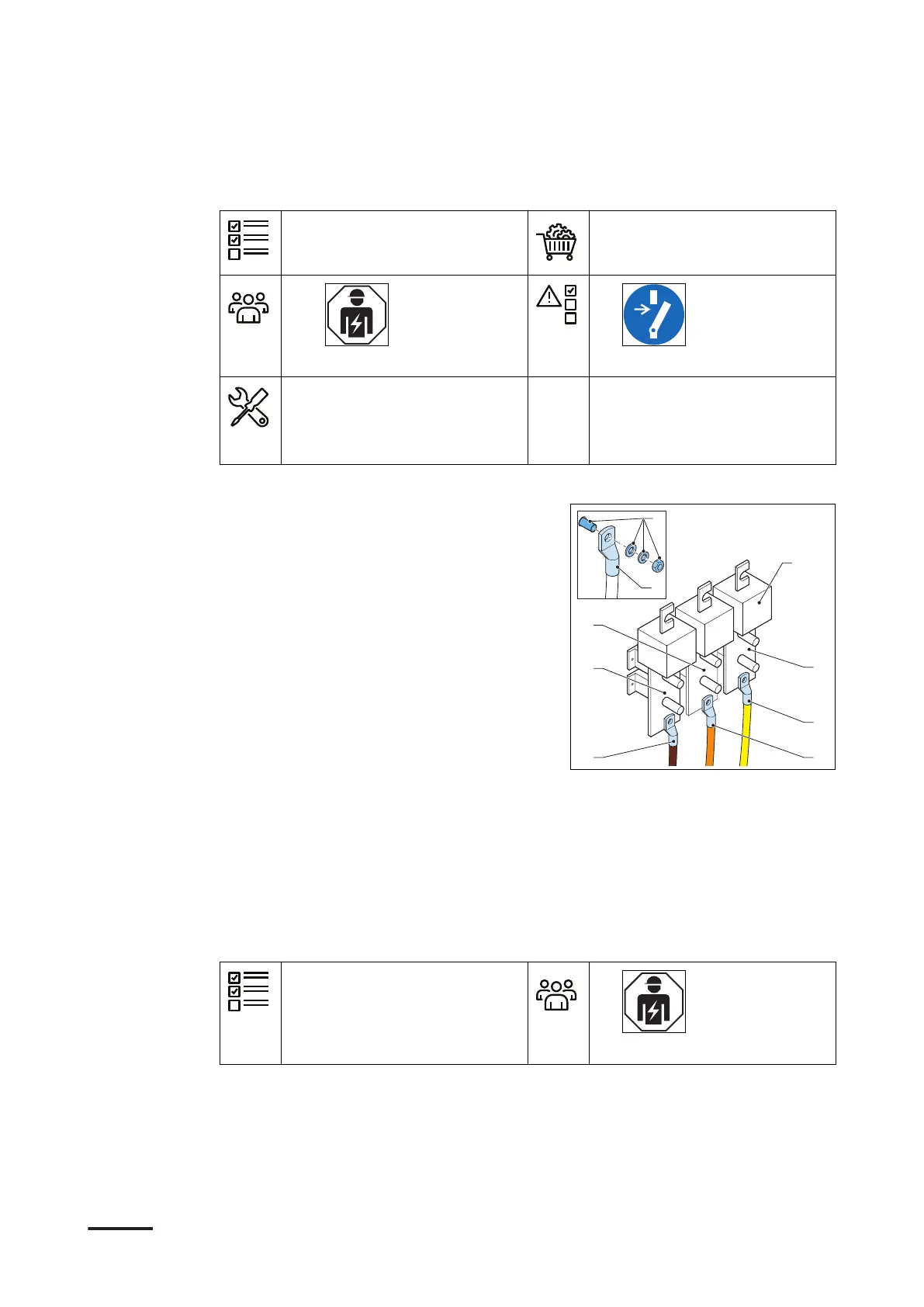

5.6.4 Connect the AC input wires
Preliminary requirements
• The front and right doors
are open.
• Cable lugs and fasteners.
Refer to section 10.6.
•
Installation engineer
•
• Wire stripper pliers, cable
lug tool and torque socket
wrench. Refer to section
10.5.
Procedure
1. Prepare the wires:
a. Cut the wires (A), (B) and (C). Make
sure that the lenght is sufficient
for connection at the connectors
on the AC fuse (D).
b. Strip the insulation from the end
of the wires. Make sure that the
strip length is compatible with the
cable lugs (E).
c. Attach the cable lugs to the end of
the wires. Use the cable lug tool.
2. Attach the wires to the connectors:
• L1 wire (A) to the connector (G)
• L2 wire (B) to the connector (H)
• L3 wire (C) to the connector (I)
Use the fasteners (F) on each connection.
3. Tighten the fasteners to the correct torque. For the specification, refer to
section 10.7.
5.6.5 Connect the Ethernet cable
Preliminary requirements
• The front and right doors
are open.
•
Installation engineer
Installation
9AKK108466A3703-EN | 001 51
