ABB TRIO-20.0/27.6-TL-OUTD

- 23 -
000047EG
2 - Characteristics

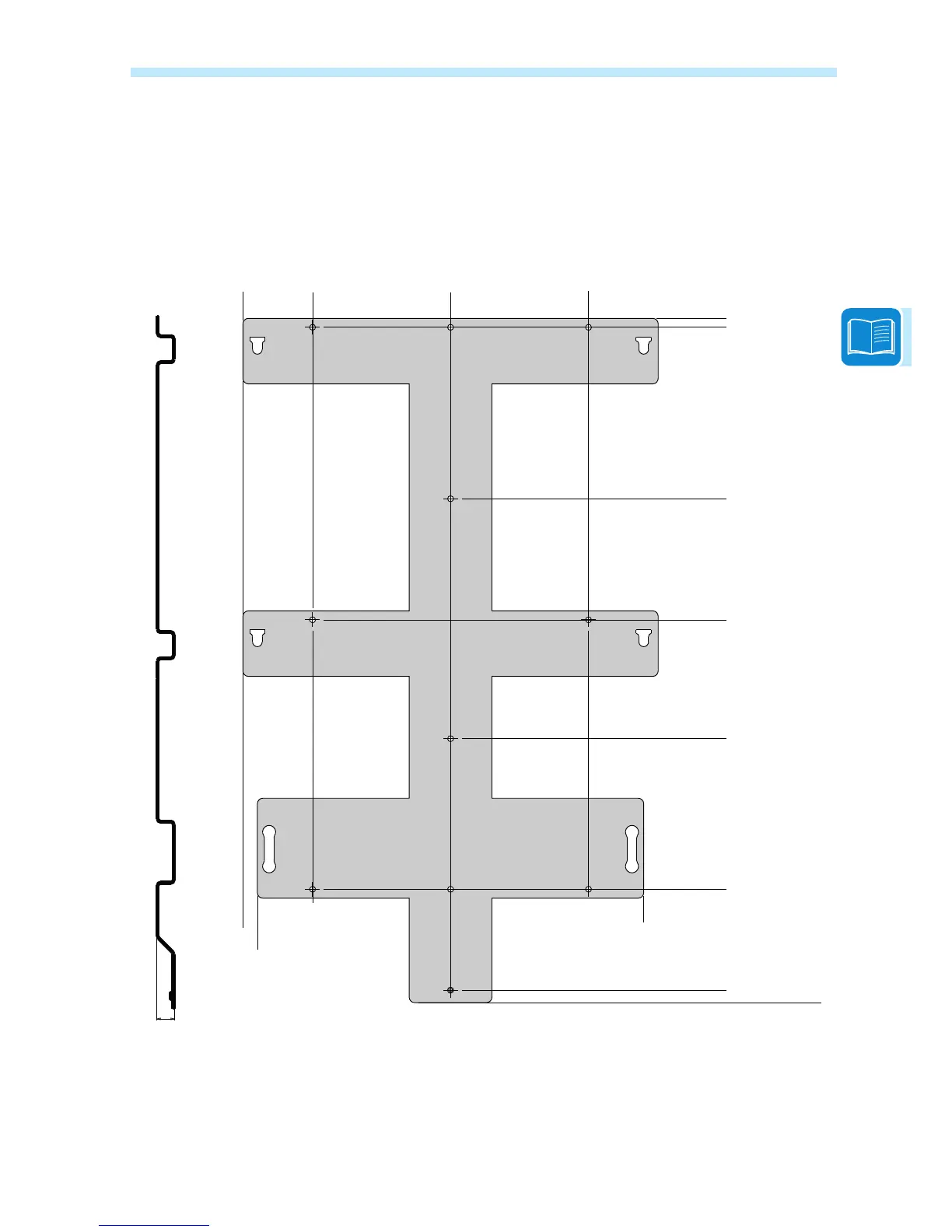

Bracket dimensions
The overall dimensions are expressed in mm and in inches
991.91mm
39.05’’
0
18mm
0.7’’
164.36mm
6.47’’
382.63mm
15.06’’
554.9mm
21.84’’
730.41mm
28.75’’
978.9mm
38.54’’
0
101mm 3.97’’ 301mm 11.85’’
0
21mm 0.82’’
501mm 19.72’’
581mm 22.87’’
25mm
0.98’’
