Dismantling the inverter
The inverter is composed of an Inverter part and a Wiring Box which
may be dismantled separately. The paragraphs that follow describe dis-
mantling procedures.
Perform the steps for “Turning off the inverter” before dismantling one or both inverter parts.
Dismantling the inverter

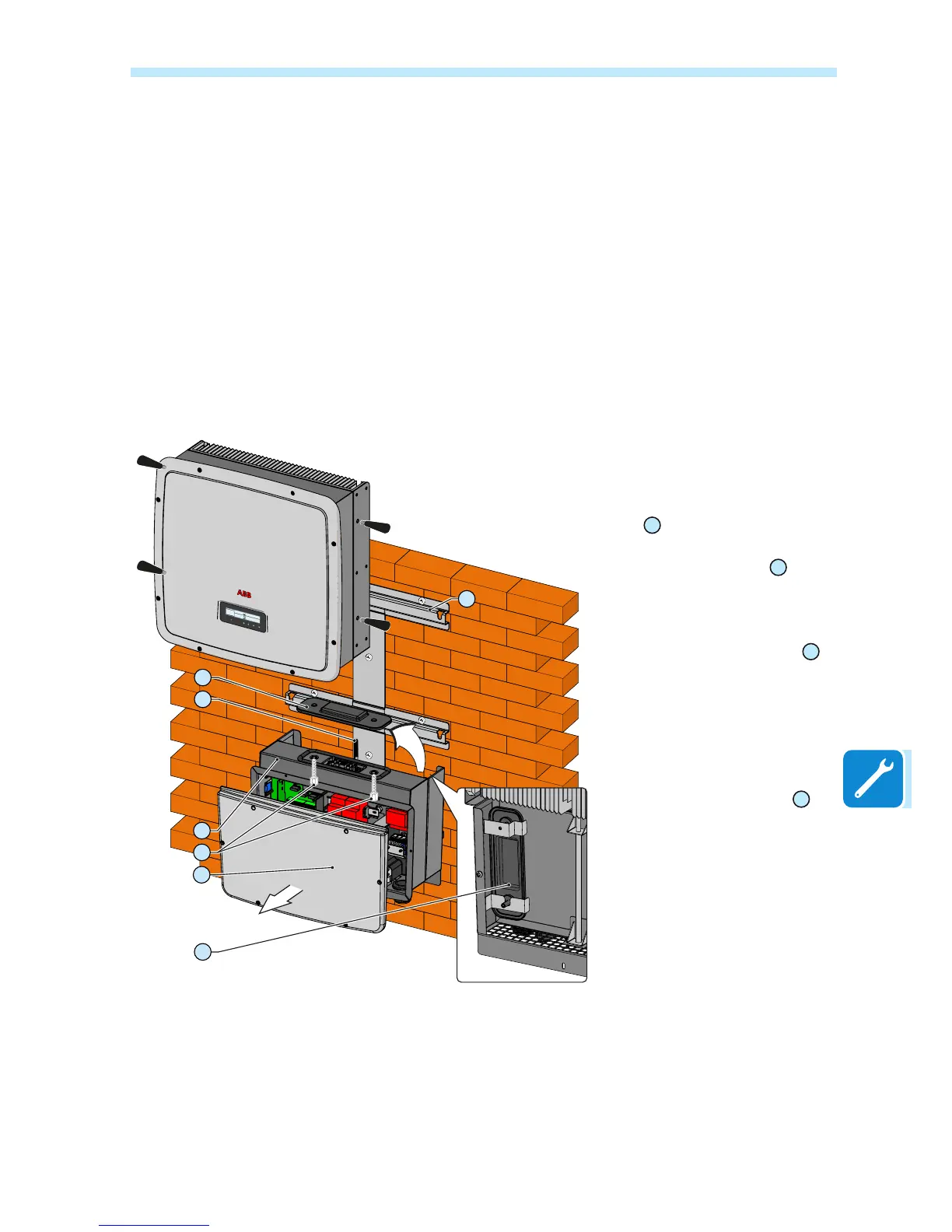

Procedure for dismantling the inverter part only:
• Slacken the 6 screws holding the
cover of the Wiring Box
• Slacken the two screws on con-
nector
07
inside the Wiring Box
• Slacken the lock screw
27
on the
underside
• Separate the two parts, unscrewing
the screw holding them together
05
• Lift and remove the inverter part,
releasing it from the bracket
• If the Wiring Box is to remain in-
stalled on the bracket separately from
the inverter part, install the cap
04
to
protect the coupling connector.
• Put the Wiring Box cover back in
place and tighten the 6 screws hold-
ing it in place
POWER
ALARM GF
I
ESC
UP
DOWN
ENTER
TRIO
01
04
04
05
02
08
07
