ABB TRIO-20.0/27.6-TL-OUTD

- 68 -
000028EG
5 - Installation

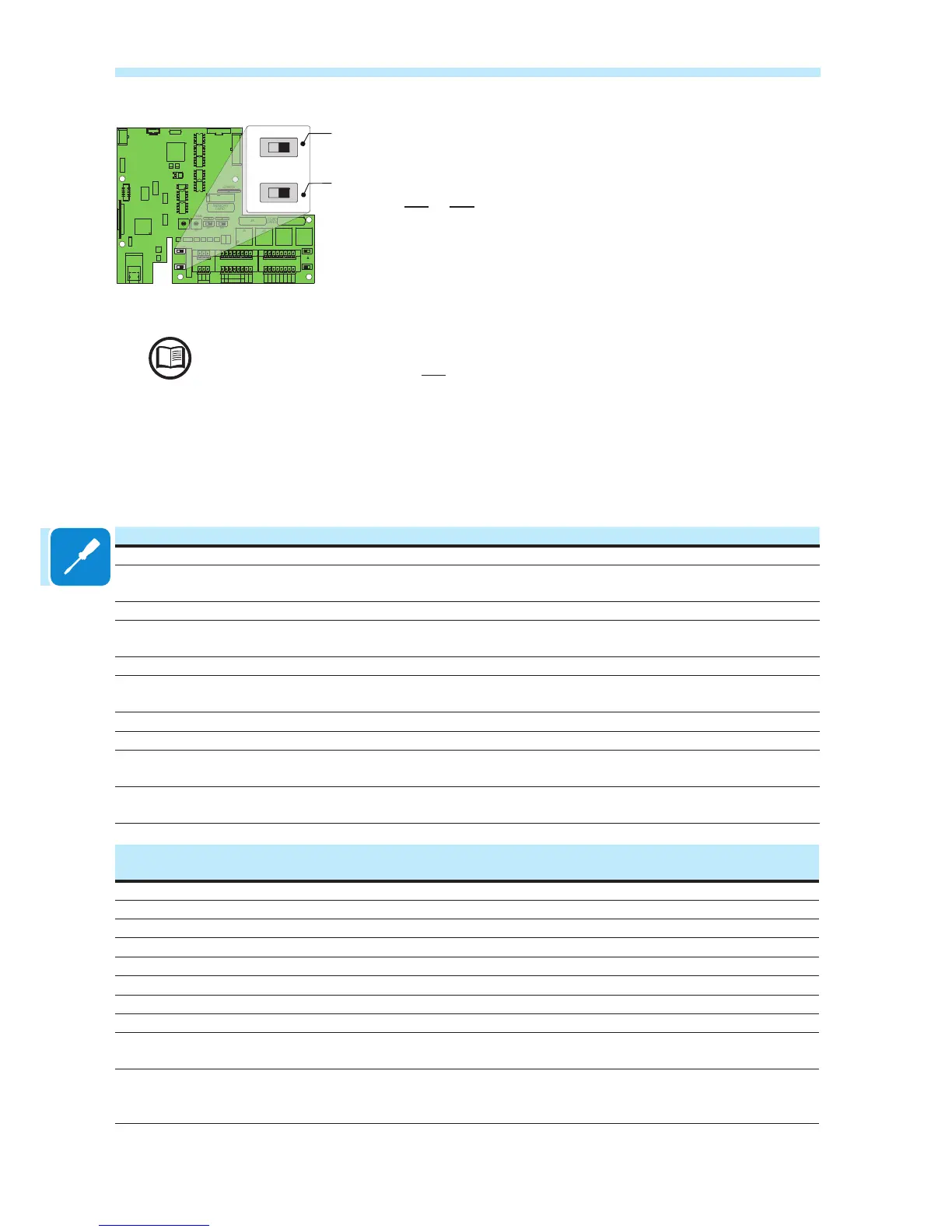

For each analogue sensor, AN1 and AN2, it is also necessary to set the
switch, a07 or a08, to select whether the reading is in Volts or mA.
Each sensor model has precise conguration values that must be set meticulously.
If the analogue sensors require an external power supply, use terminals 24V (positive) and
GND (negative) on connector a10.
The maximum +24V auxiliary voltage output current is 300mA
Specifications of environmental sensors
Tables with the technical data of the main sensors marketed by
ABB are shown below:
Model Type Gain Offset Unit of Measurement
PVI-AEC-IRR Irradiation sensor 120 0 W/mq
PVI-AEC-IRR-T Irradiation sensor with integrated
cell temp. sensor
Irradiation: 120
Cell temp.: 10.869
Irradiation: 0
Cell temp.: -20
Irradiation: W/m
2
Cell temp.: °C
PVI-AEC-RAD-13TC Irradiation sensor 130 0 W/m2
PVI-AEC-RAD-13-TC-T Irradiation sensor with integrated
cell temp. sensor
Irradiation: 130
Cell temp.: 11.507
Irradiation: 0
Cell temp.: -26.1
Irradiation: W/m
2
Cell temp.: °C
PVI-AEC-CONV-T100 PT100/0...10V converter 15 -50 °C a 0...10V
PVI-AEC-T1000-INTEGR Ambient temperature sensor with
integrated converter
10 -50 °C
PVI-AEC-WIND-COMPACT Wind speed sensor 5 0 m/s
PVI-AEC-PYR-1300 Pyranometer (0...1300W/m
2
) 65 0 W/m
2
PVI-AEC-T100-ADH Adhesive PT100 module tempera-
ture sensor (back cell)
N/A N/A N/A
PVI-AEC-T1000-BOX PT1000 ambient temperature sen-
sor
N/A N/A N/A
Model Output signal
Power supply
needed (24Vdc)
TRIO 20/27.6
compatibility
EVO compati-
bility
PVI-AEC-IRR 0...10Vdc YES YES YES
PVI-AEC-IRR-T 0...10Vdc YES YES YES
PVI-AEC-RAD-13TC 0...10Vdc YES YES YES
PVI-AEC-RAD-13-TC-T 0...10Vdc YES YES YES
PVI-AEC-CONV-T100 0...10Vdc YES YES YES
PVI-AEC-T1000-INTEGR 0...10Vdc YES YES YES
PVI-AEC-WIND-COMPACT 0...10Vdc YES YES YES
PVI-AEC-PYR-1300 0...20mA YES NO YES
PVI-AEC-T100-ADH 3-wire connection on terminals:
RTD1PT100 RTD2PT100 RTD3PT100
NO YES YES
PVI-AEC-T1000-BOX 3-wire connection on termi-
nals: RTD1PT1000 RTD2PT1000
RTD3PT1000
NO YES YES
CARD
J10
PC
OFF
TERM.
120
OFF
J8
ON
PMU
S2
S4
ON
PC
PMU
J9
PMU -T/R
J6
CARD
COM
PMU +T/R
GND COM
+5V OUT
R ON/OFF
J4
PC
SH
J7
PC +T/R PC -T/R
GND
RTD3
RTD3
24V
-WTACH
J5
+WTACH
PT100
RTD2
RTD2
PT1000
J3
J2
PMU
CR2032
A2
COM
A2
RTD1
RTD1
A1
A1
COM
S6
NORM
S3
S7
COUNTRY/LANG SEL
K1
S8
MEMORY
ALARM
NC
C
BT1
NO
S5
PAR IND SERV
A1
J16
J14
J11
AN2 AN1
V
mA
V
mA
S1
S3
AN2
V
AN1
mA
S1
V mA
a07
a08
