ABB VUCG.N - Page 56

56 Technical guide VUC | 1ZSC000562-AAX en, Rev. 1

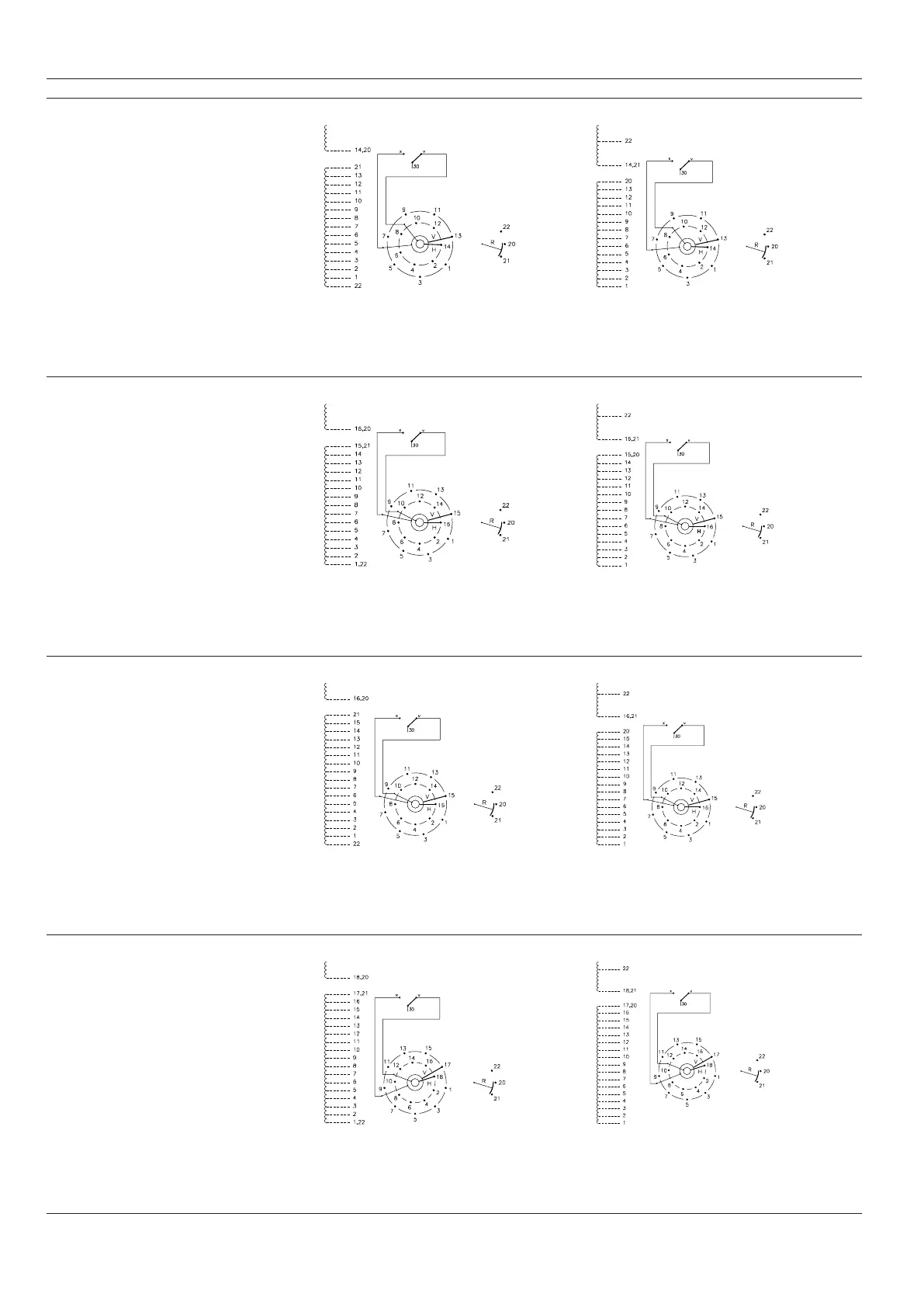

Appendix 2: Single-phase diagrams for VUCG/III and VUCL/III
Linear Plus/Minus Coarse/Fine
26 steps
Number of loops:
14 13 + 14
Number of tap positions:
27 27
28 steps
Number of loops:
14 14 + 14
Number of tap positions:
29 29
30 steps
Number of loops:
16 15 + 16
Number of tap positions:
31 31
32 steps
Number of loops:
16 16 + 16
Number of tap positions:
33 33
