1ZSC000562-AAX en, Rev. 1 | Technical guide VUC 61

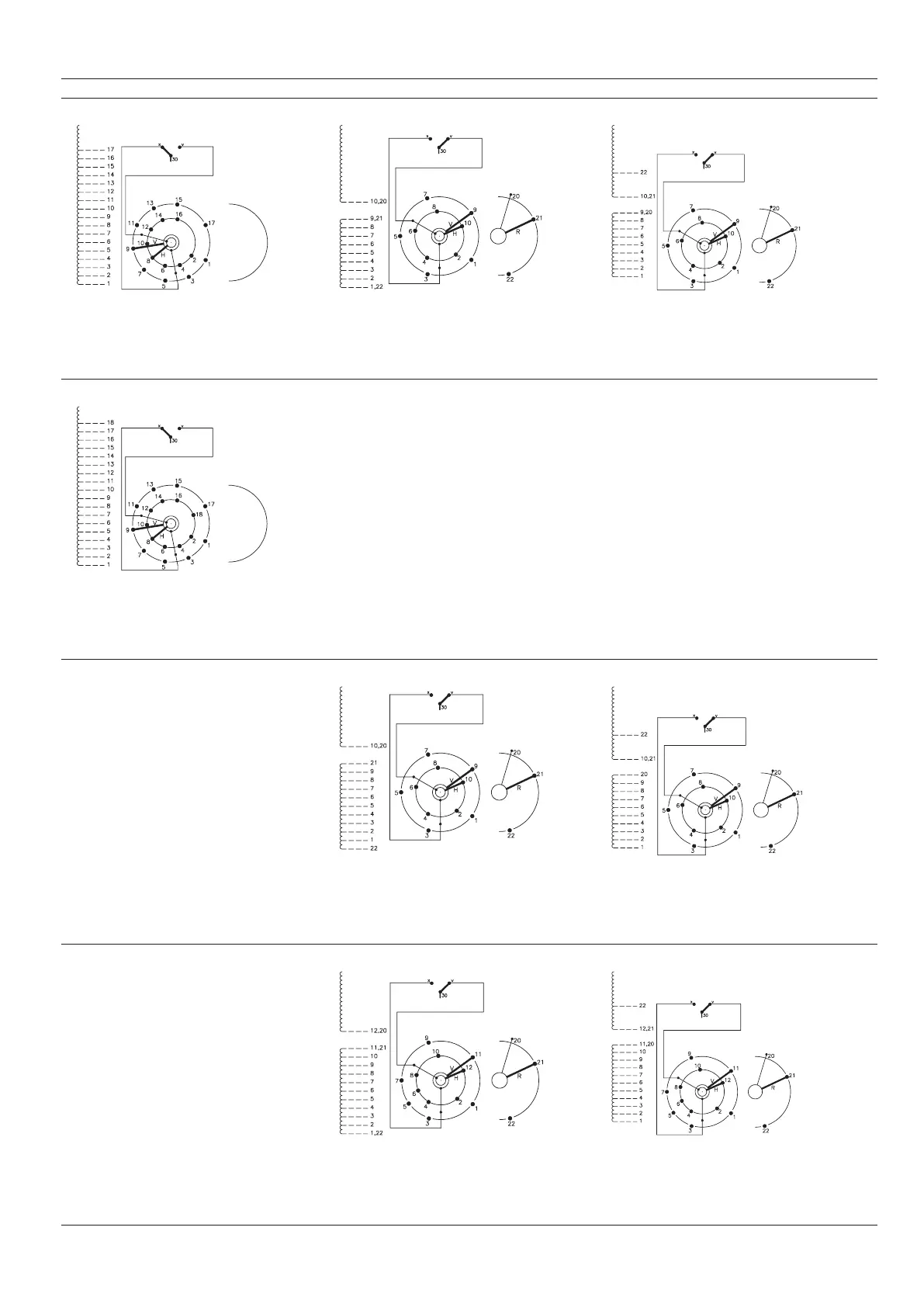

Appendix 3: Single-phase diagrams for VUCG/F and VUCL/F
Linear Plus/Minus Coarse/Fine
16 steps
Number of loops:
16 8 8 + 8
Number of tap positions:
17 17 17
17 steps
Number of loops:
17
Number of tap positions:
18
18 steps
Number of loops:
10 9 + 10
Number of tap positions:
19 19
20 steps
Number of loops:
10 10 + 10
Number of tap positions:
21 21
