62 Technical guide VUC | 1ZSC000562-AAX en, Rev. 1

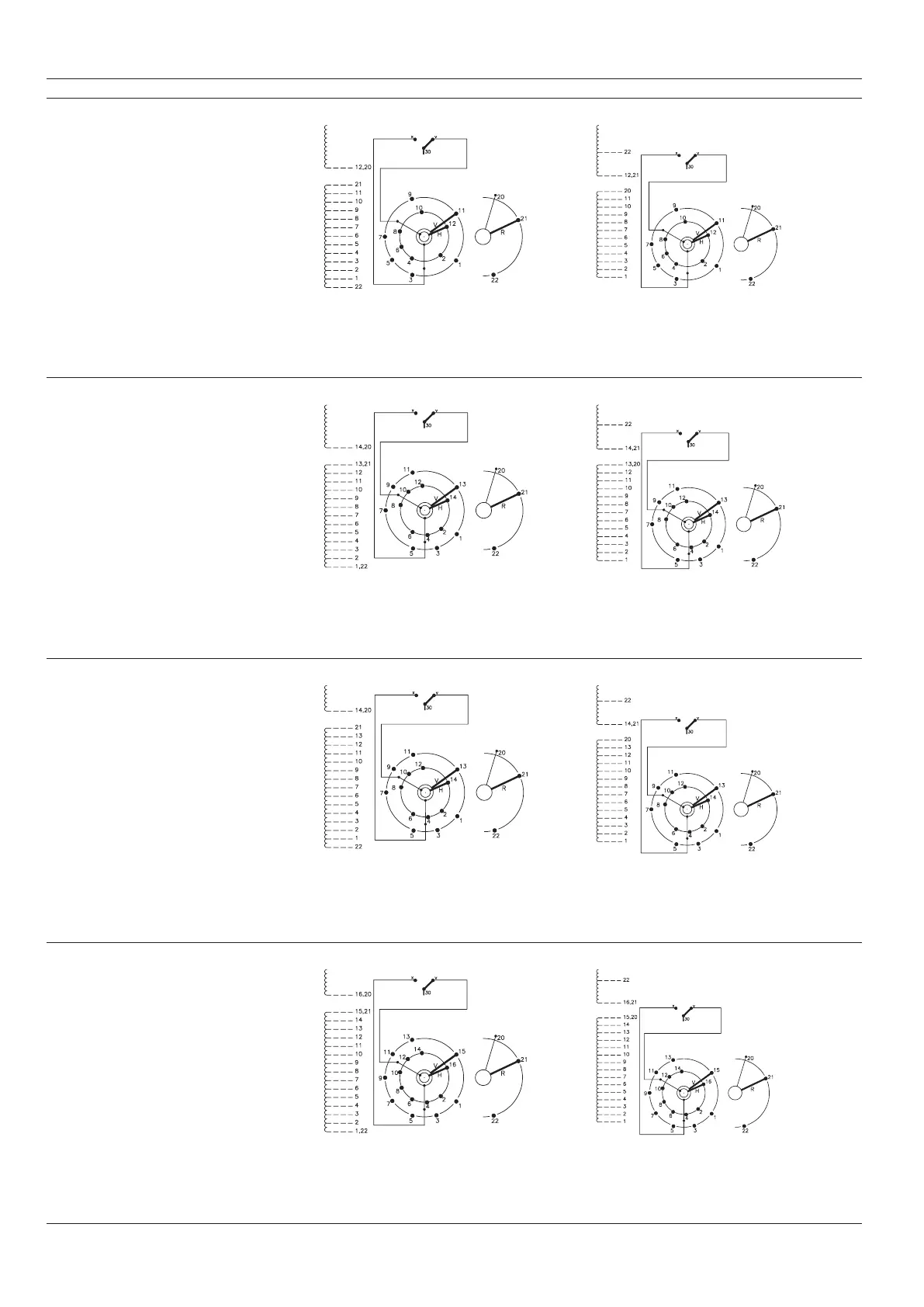

Appendix 3: Single-phase diagrams for VUCG/F and VUCL/F
Linear Plus/Minus Coarse/Fine
22 steps
Number of loops:
12 11 + 12
Number of tap positions:
23 23
24 steps
Number of loops:
12 12 + 12
Number of tap positions:
25 25
26 steps
Number of loops:
14 13 + 14
Number of tap positions:
27 27
28 steps
Number of loops:
14 14 + 14
Number of tap positions:
29 29
