This dialog box usually consists of five tabs, which switch on different status and
control areas.
2
5
1
6
9
7
4
3
8
GUID-D0D9C781-63F4-4F02-942C-FE0FE8BA6664 V1 EN

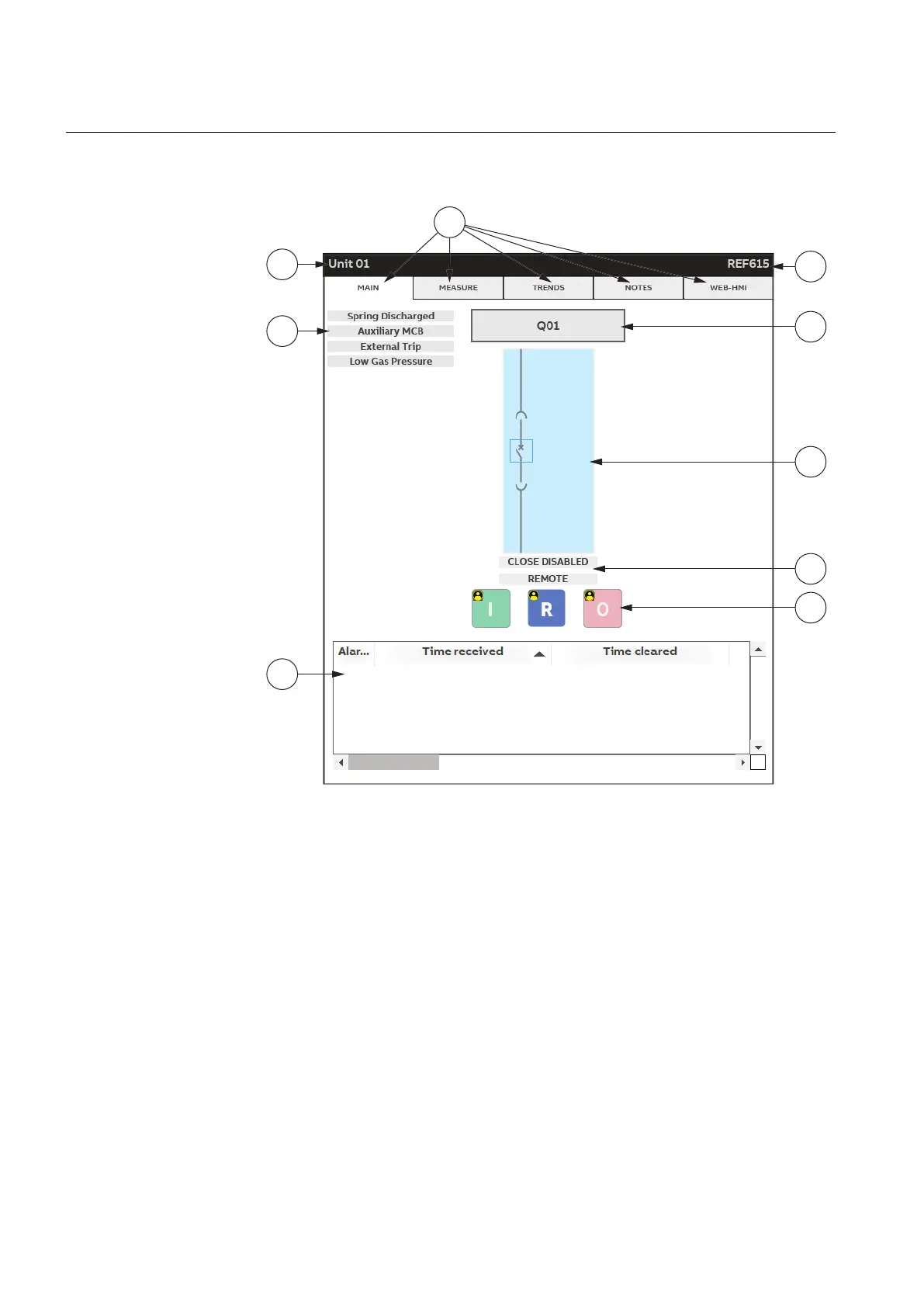

Figure 12: Bay dialog box
1
Tabbed pages
2 Description
3 Predefined device-specific alarm texts
4 Alarm list
5 Device type
6 Bay name
7 Bay control field
8 Control permission flags
9 Control buttons
