GUID-D5CC32DC-372F-465E-AC5B-BEC297377C98 V1 EN

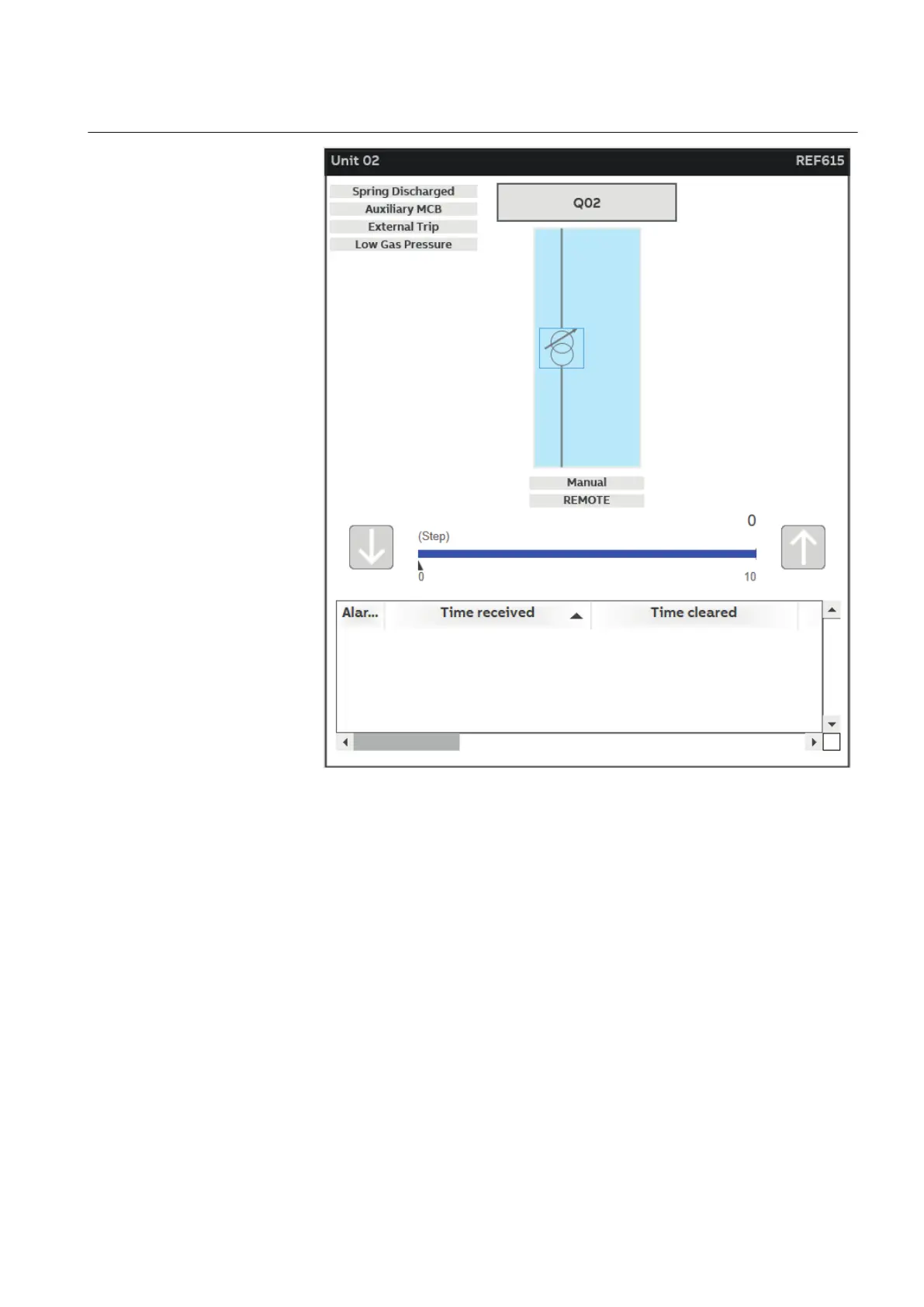

Figure 27: Controlling tap changer
4. Confirm the operation in the confirmation window.
3.6 Viewing measurements
• On the bay dialog box, select the MEASURE tab.
The appearance of the MEASURE tab can vary from bay to bay, depending on the
base configuration selected in Object Import Wizard as well as the imported
variables. Only status displays matching the device are displayed.
2NGA000149 A Section 3
Operating the system
ABB ZEE600 33
Operation Manual
