GUID-EF72115B-0963-4BB5-9771-2373A6E7A86F V1 EN

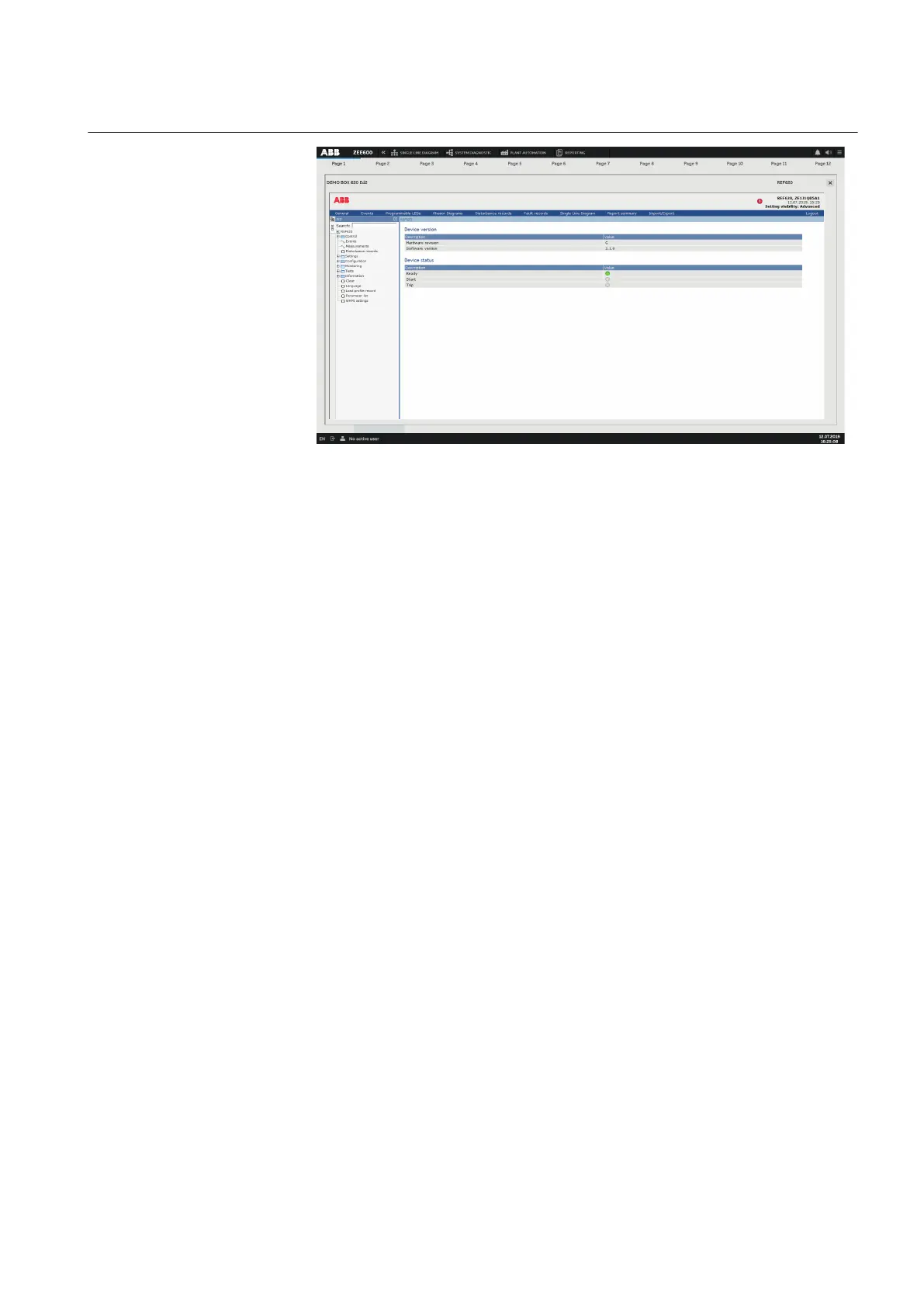

Figure 31: Accessing the Web HMI
3.10 Alarm and event handling
Alarm administration informs the operator of abnormal situations or faults, such as
limit value violations and protection trips, in the electrical power network or
equipment.
• The alarm status line is always shown in the foreground in zenon Runtime and
typically it can be used to display the most recent or oldest unacknowledged
alarm.
• Alarm message list administers alarms in a list in zenon Runtime.
• Displays alarms and their causes in an unfiltered or filtered list
• Enables localization of the alarm cause
• Enables alarm acknowledgement
• Enables alarm deletion
• Enables alarm printing and saving
For quick error diagnosis and traceability, there are three different operating areas in
the visualization.
• Navigation alarm list
• Active and historical alarm lists
• Chronological event list
2NGA000149 A Section 3
Operating the system
ABB ZEE600 37
