3.16 Changing theme
1. On the main screen, select Utilities from the vertical menu.
2. Under Theme, select the internal color palette.
• Dark
• Light
GUID-1EB91866-F5D6-4306-80D3-EC475BC35E27 V1 EN

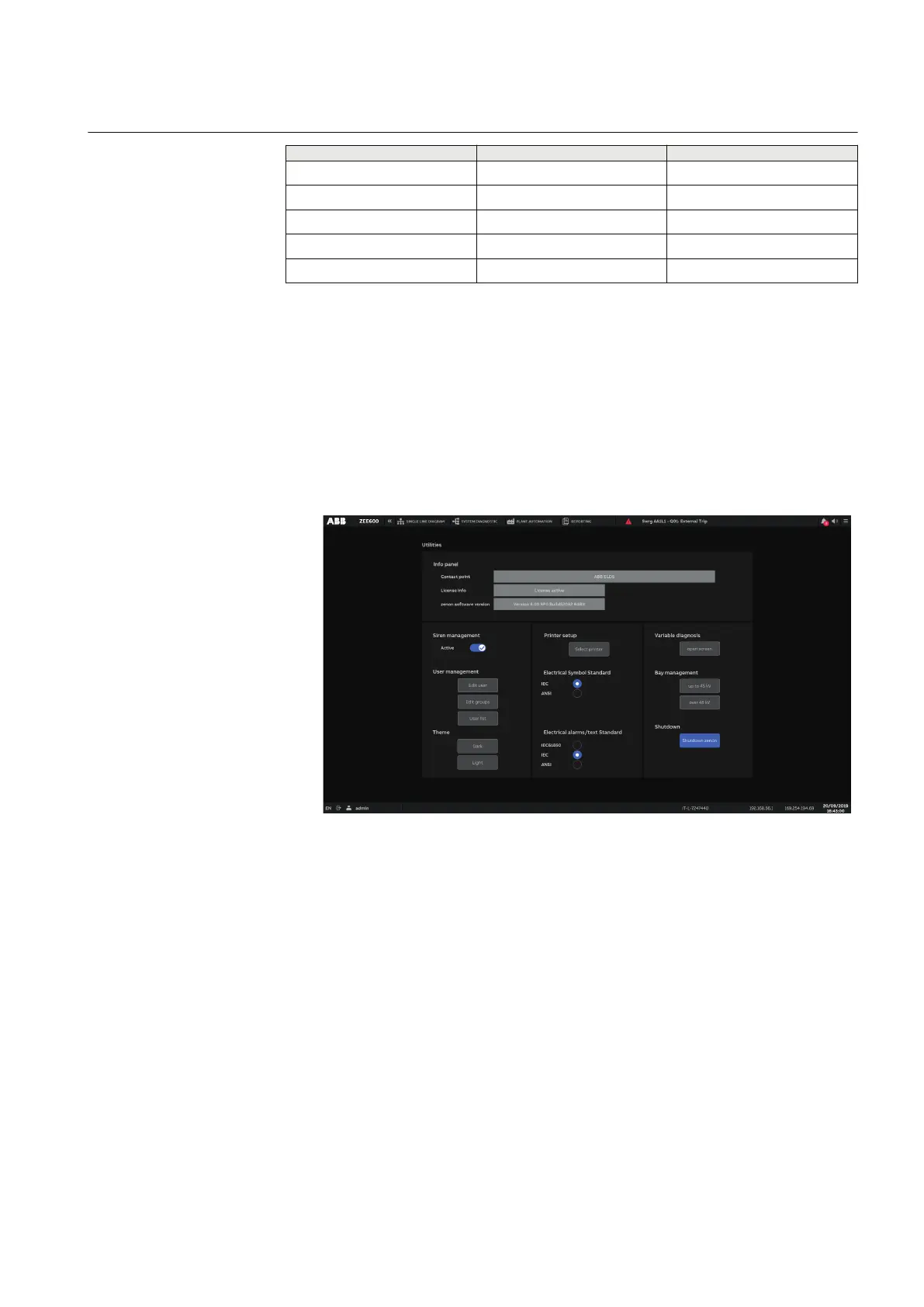

Figure 44: Selecting the dark theme
The selected theme affects all screens.
3.17 Selecting electrical symbol standard
1. On the main screen, select Utilities from the vertical menu.
2. Under Electrical Symbol Standard, select the electrical symbol standard that
defines the appearance of the bay configurations.
• IEC
• ANSI
