automatically calculated in real-time and the results are displayed. Unlike the trend
dynamic element, it is possible to zoom, browse, query and scale online and archived
values. In addition to a time-controlled display (yt), the extended trend can also
support a locus display (xy). As the extended trend can display two-time axes at the
same time in a diagram, it is easy to compare different time periods.
2.2.4.2 COMTRADE Viewer
The fault recording page offers the possibility to evaluate COMTRADE files in ABB
ZEE600.
The control supports IEEE C37.111 IEEE Standard Common Format
for Transient Data Exchange (COMTRADE) for Power Systems
standard-compliant files. ASCII or binary files in accordance with the
1999 or 2013 edition can be visualized. Older files or files without a
year identification are not supported. A warning dialog box opens
when an invalid or unsupported file is selected.
GUID-FE37DB5A-43F3-4CEB-9FF7-34BDDBCB4DBE V1 EN

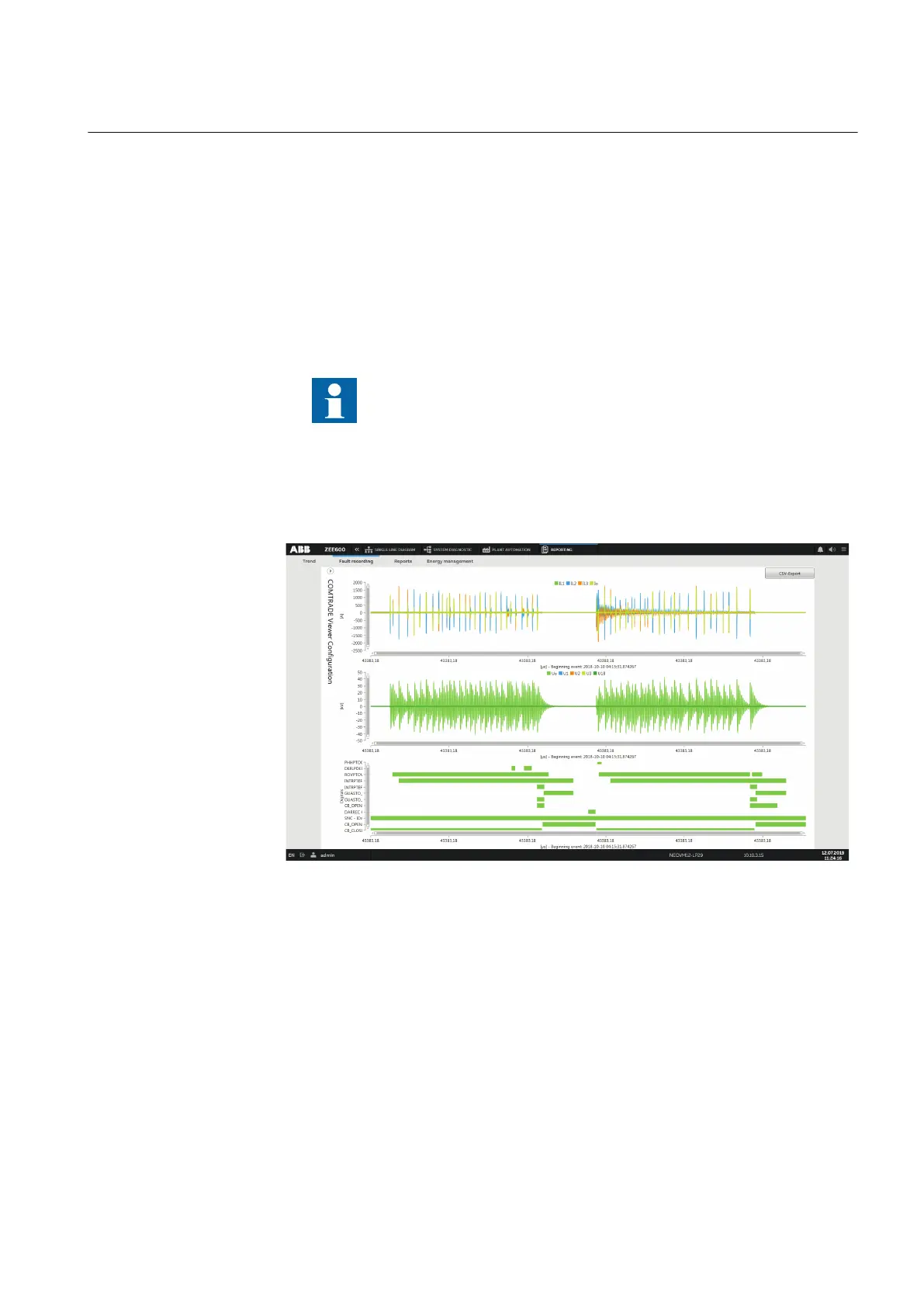

Figure 8: Fault recording
The COMTRADE Viewer WPF control has several possibilities in zenon Runtime.
• Selection of a file in the COMTRADE file format
• Visualization of the selected COMTRADE file
• Current (sinus wave display)
• Voltage (sinus wave display)
• Digital signals (binary bar chart display)
• Display of values at a selected cursor position
• If an element that represents neither current nor voltage (such as frequency)
is selected, it is visualized in both analog areas again (current and voltage).
• Navigation
2NGA000149 A Section 2
ABB ZEE600 overview
ABB ZEE600 15
Operation Manual
