23Charging procedure

English

x Ensure that the charging cable is not driven over, kinked or pinched. Always treat charging plugs, connec-

tors and sockets with special care.

x Only have the product repaired by a qualiﬁed specialist electrical contractor authorised by ABL.

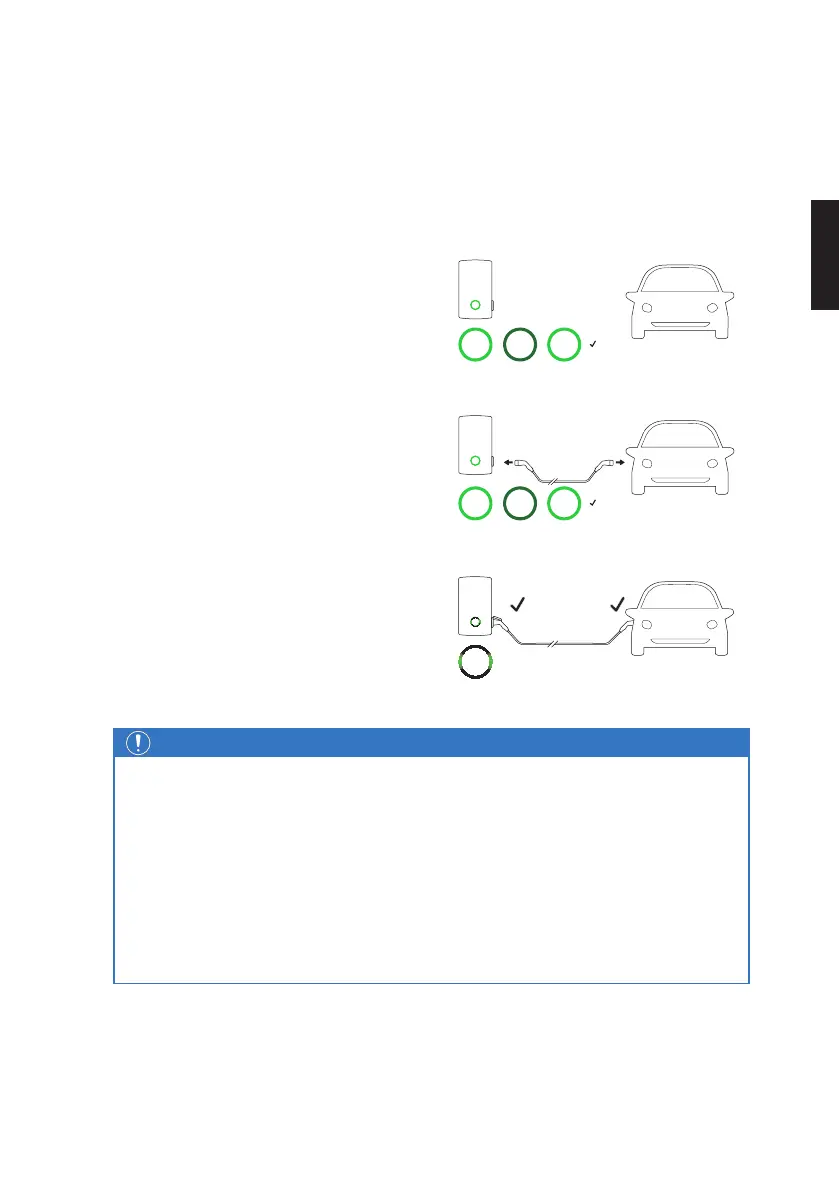

Charging procedure

The charging process with the Wallbox eM4Single is described below.

Proceed as follows:

1 Park the vehicle so that its charging inlet can

be easily reached with the charging cable's

charging connector.

x When the charge point of the wallbox is

ready for charging, the status indicator

pulsates green (display: 1cycle).

2 Prepare the charging cable of the wallbox and

the vehicle's charging inlet.

J Open the charging inlet at the vehicle and

plug in the charging connector.

J Open the charging socket lid on the wall-

box and plug in the charging connector.

3 Check the status indicator of the wallbox.

x When the vehicle is connected and recognised,

the status indicator lights up static green.

NOTE

Authentication of the Wallbox eM4Single

Depending on the model version, the Wallbox eM4Single can be conﬁgured dierently during installation.

x Controller: A Controller can be operated as a stand-alone wallbox or with a backend.

x Controller with Extender: A Controller can be operated with one or more Extender wallboxes as a

charging group in a backend or without a backend.

x Stand-alone Extender: An Extender conﬁgured for stand-alone operation is operated without a

backend.

If it is necessary to authenticate the charging operation via an RFID card, carry out the following steps 4

to 6. If authentication is not required, go to step 7.
