ACADEMY LCFF 1.2 - Rear Axle Height Setting - BB DROP

LCFF 1.2 Setup & Calibraon
workshop manual v2
Page 9
© The Bicycle Academy Limited 2019
Rear Axle Height Seng - BB DROP
BB drop reading
BB drop datum

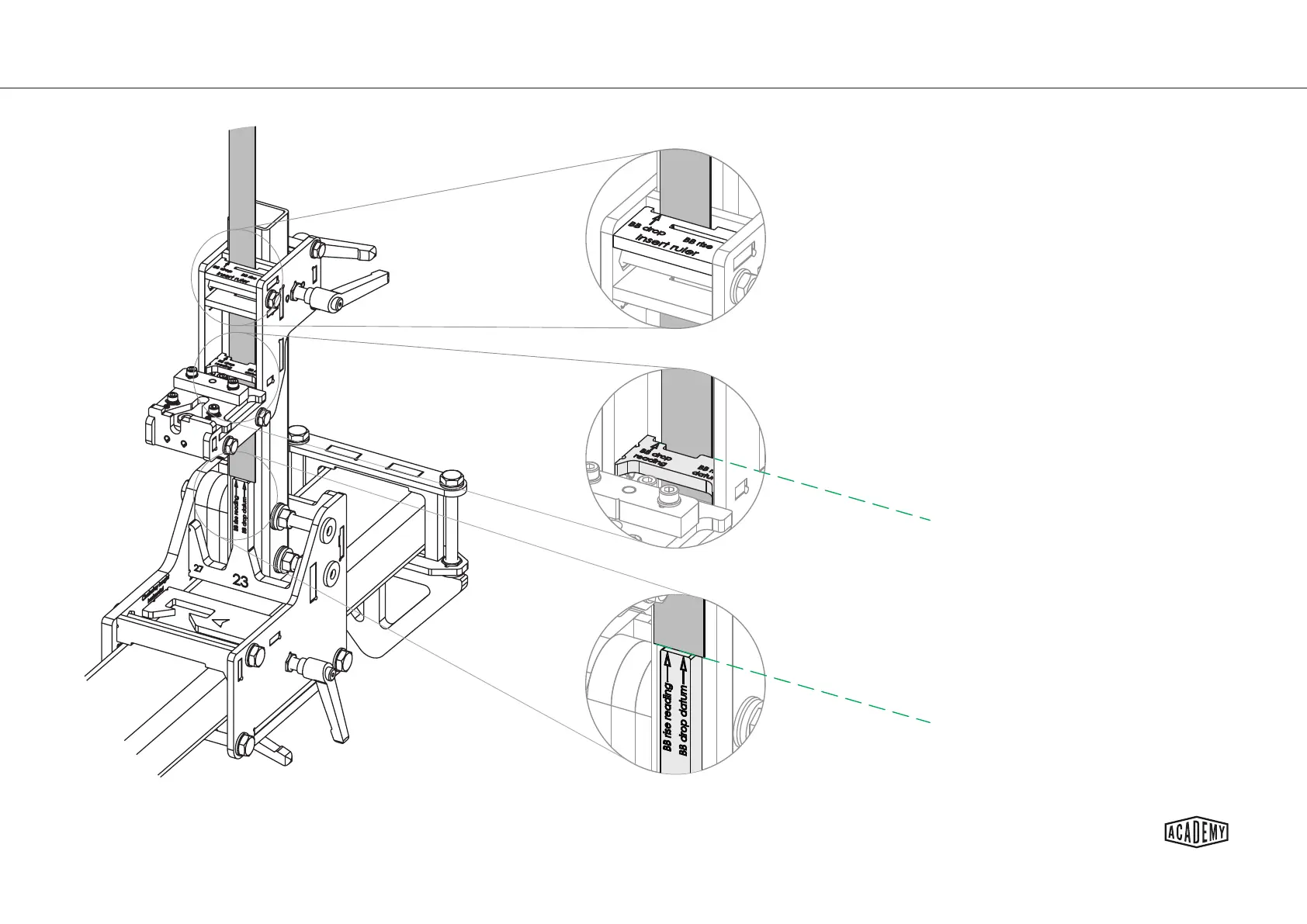

Insert the steel ruler through
BB drop slot as shown.
Ensure the steel ruler references
the datum plate as shown.
