ACADEMY LCFF 1.2 - Correct Grub Screw Adjutment

LCFF 1.2 Setup & Calibraon
workshop manual v2
Page 13
© The Bicycle Academy Limited 2019
Correct Grub Screw Adjutment
(applicable on head tube carriage & rear axle vercal carriage)

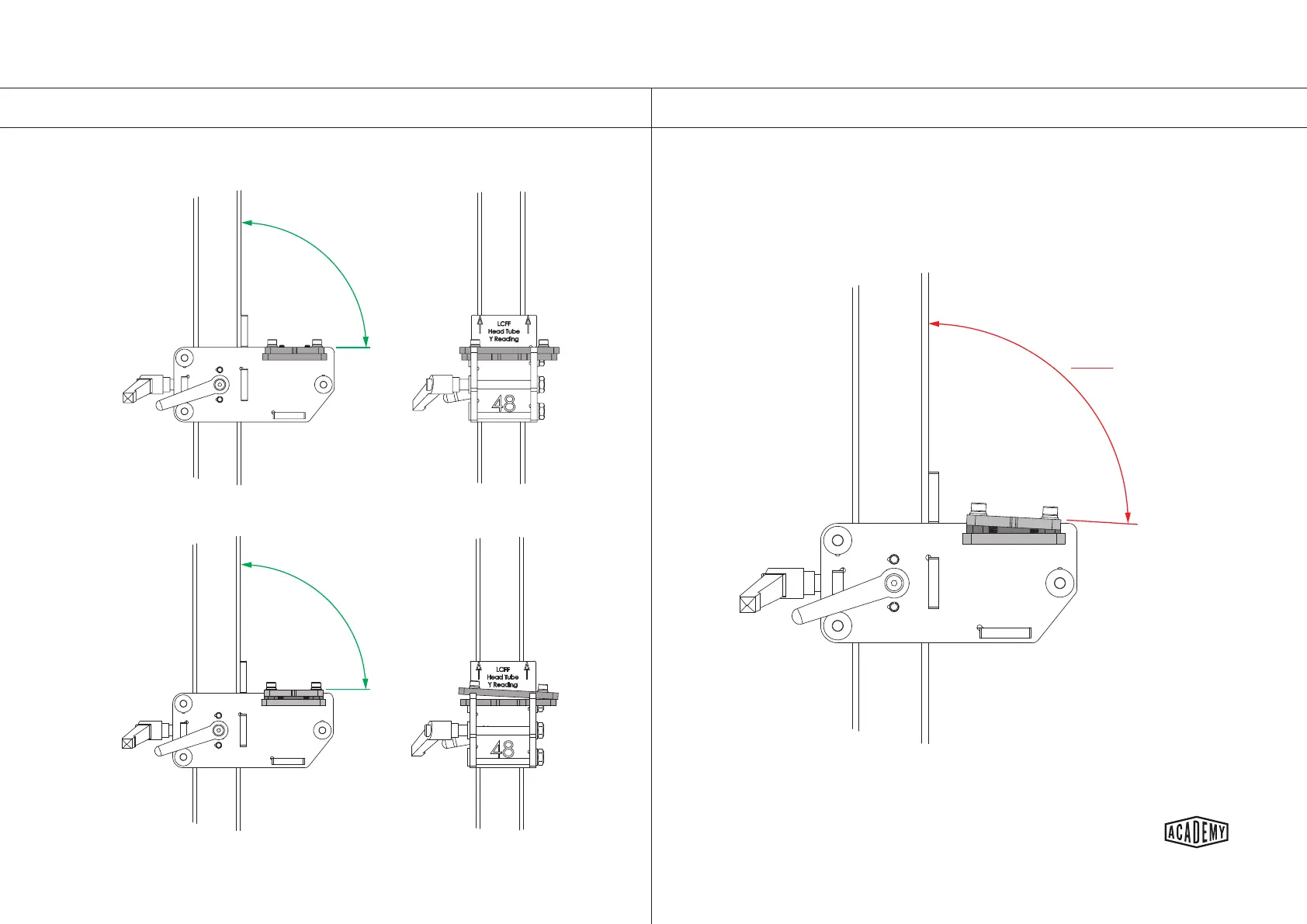

Correct adjustment - grub screws adjusted equally on each side
Incorrect adjustment - grub screws adjusted unequally
Ensure that any roll adjustment maintains the 90° relaonship between the
reference plate and the beam.
In the case shown below, there would be a discrepancy in Head tube X
dimension and top tube length.
90°
90°
90°
