ACADEMY LCFF 1.2 - Bottom Bracket Adapters & Dummy Axle Setup

LCFF 1.2 Setup & Calibraon
workshop manual v2
Page 19
© The Bicycle Academy Limited 2019

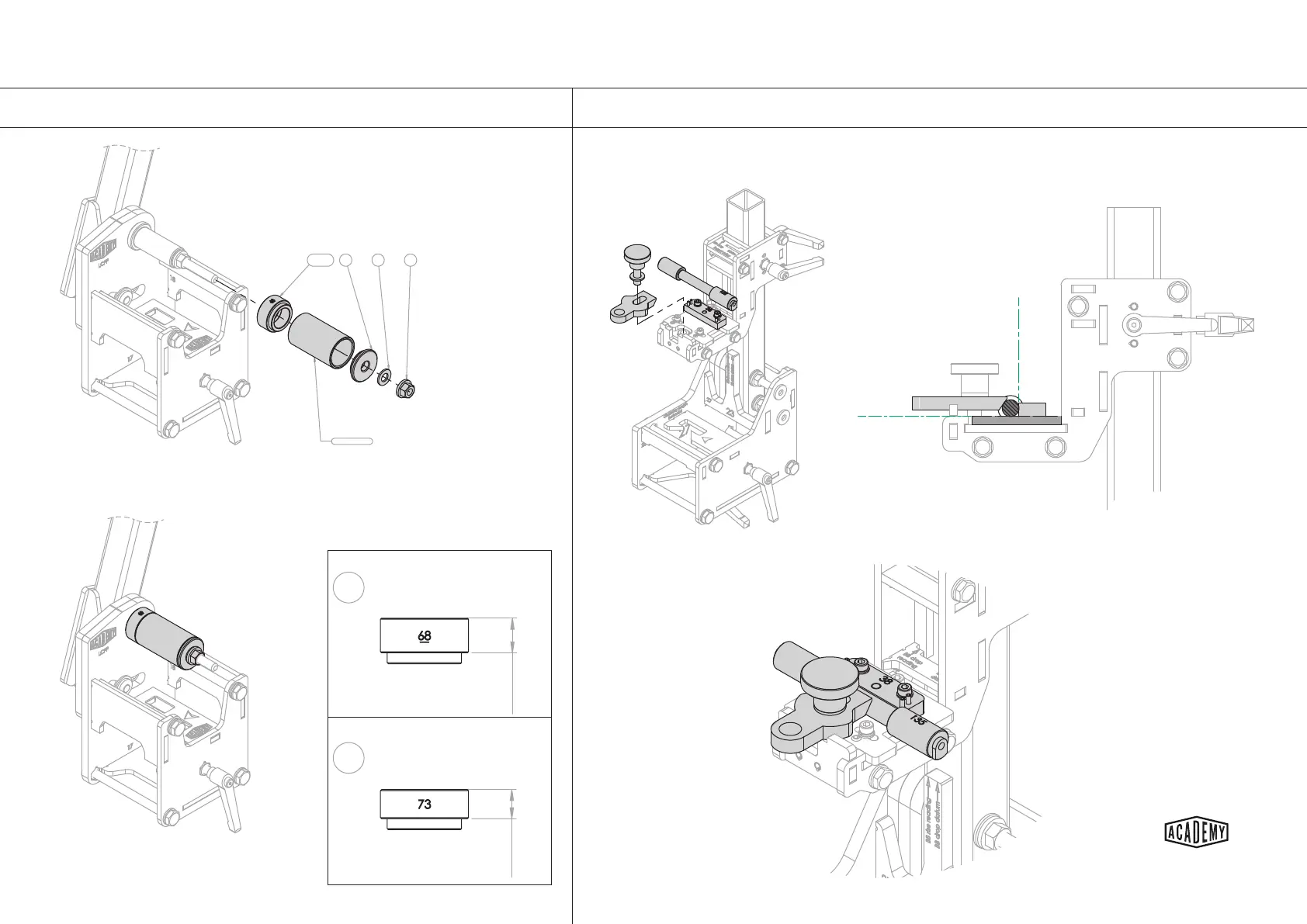

Boom Bracket Adapters & Dummy Axle Setup
Ensure the dummy axle references the datum faces as shownSelect the appropriate BB shell adapter and assemble
101, 102
BSA BB shell
103 215 221
Adapter for 73 mm BSA
bo�om bracket
Some components
removed for clarity
Adapter for 68 mm BSA
bo�om bracket
101
102
13.25
15.75
