ACADEMY LCFF 1.2 - Calibration Step 1 - Seat Tube Centre Line

LCFF 1.2 Setup & Calibraon
workshop manual v2
Page 14
© The Bicycle Academy Limited 2019
Calibraon Step 1 - Seat Tube Centre Line
Set the xture seat angle and cone height for the planned frame build.

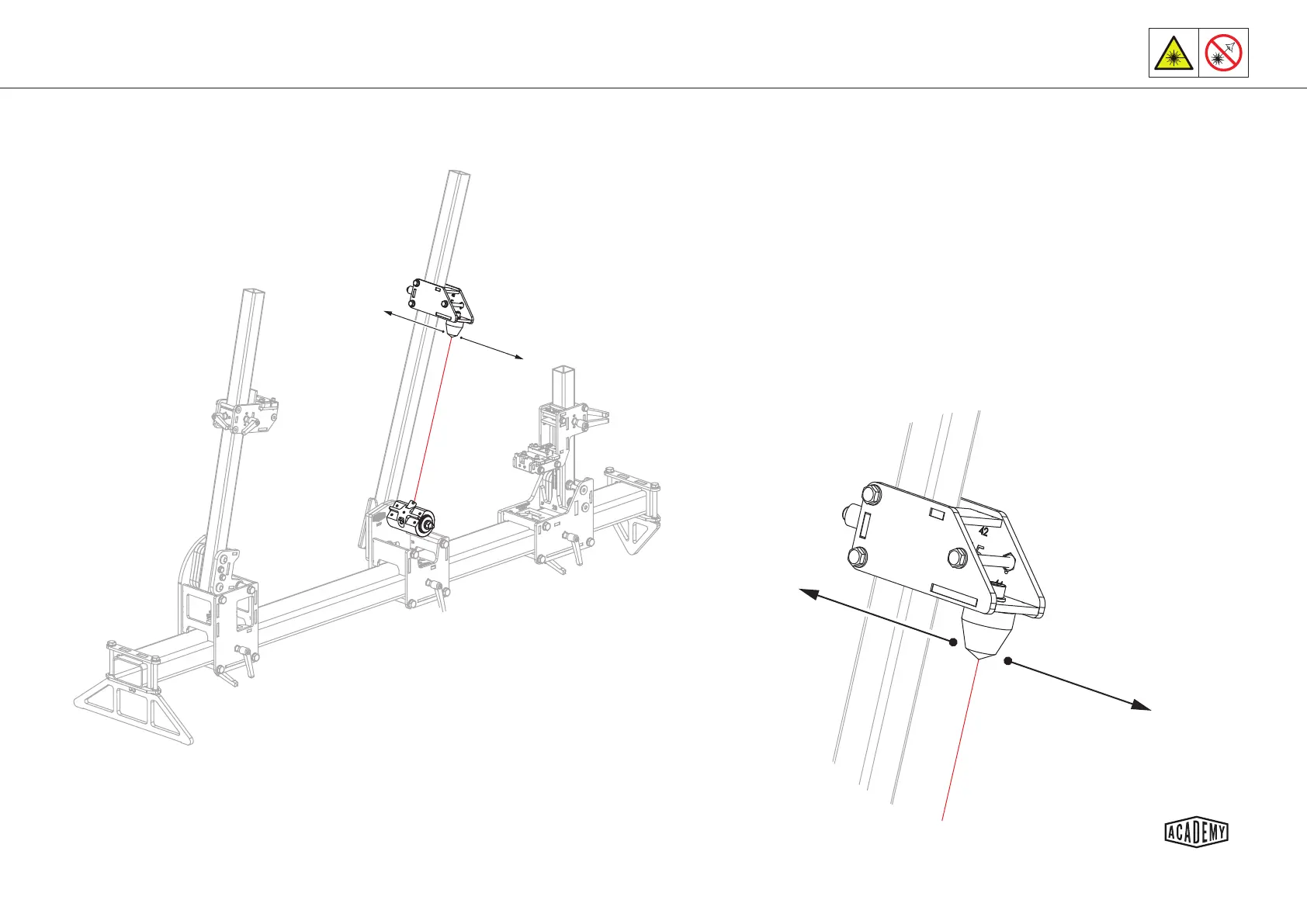

Having calibrated the laser pointer (see page 11) aim the laser at the p of the seat
cone and secure the laser holder with a nut.
Slacken the seat cone using the hexagon socket head bolt and slide the cone unl the
laser strikes the very p. This posion will be highlighted by an even light scaer on
the cone.
1.
2.
3.
