ACADEMY LCFF 1.2 - Head Tube Pucks & Adaptors

LCFF 1.2 Setup & Calibraon
workshop manual v2
Page 18
© The Bicycle Academy Limited 2019
20
Excess head tube
(to be removed after brazing)
30
30
43.8
44 mm head tube
110
33.7
1 1/8” head tube
111
29.6
1” head tube
112
30
50
104
10
50
105
105
104
106
Head tube
110, 111, 112
104, 105
225
215
222
223
Head/down tube lug

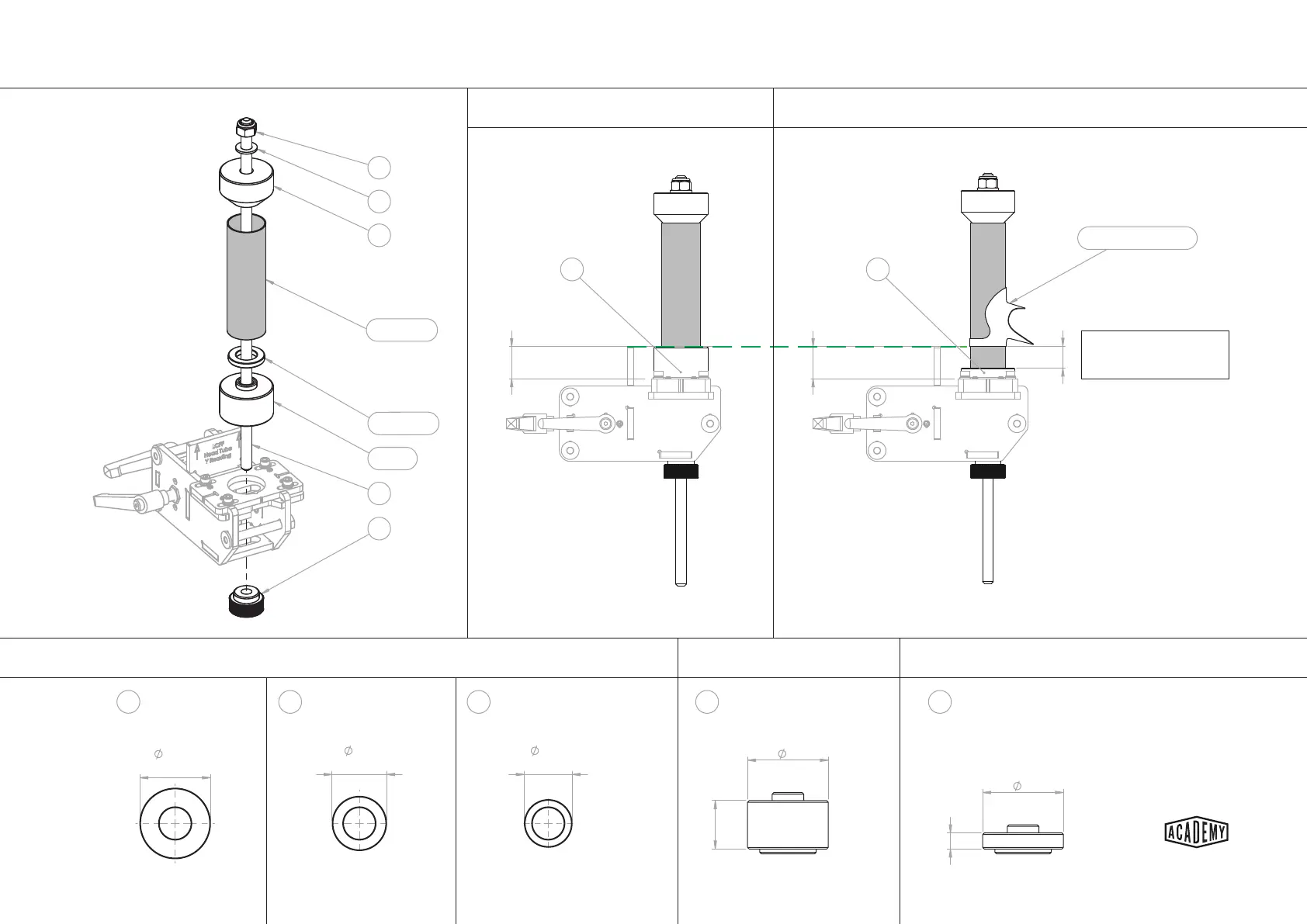

Head Tube Pucks & Adaptors
Lugless construcon
Lugless construconBrass adaptors for various head tube diameters
Lugged construcon
Lugged construcon
Oponal extraOponal extra
