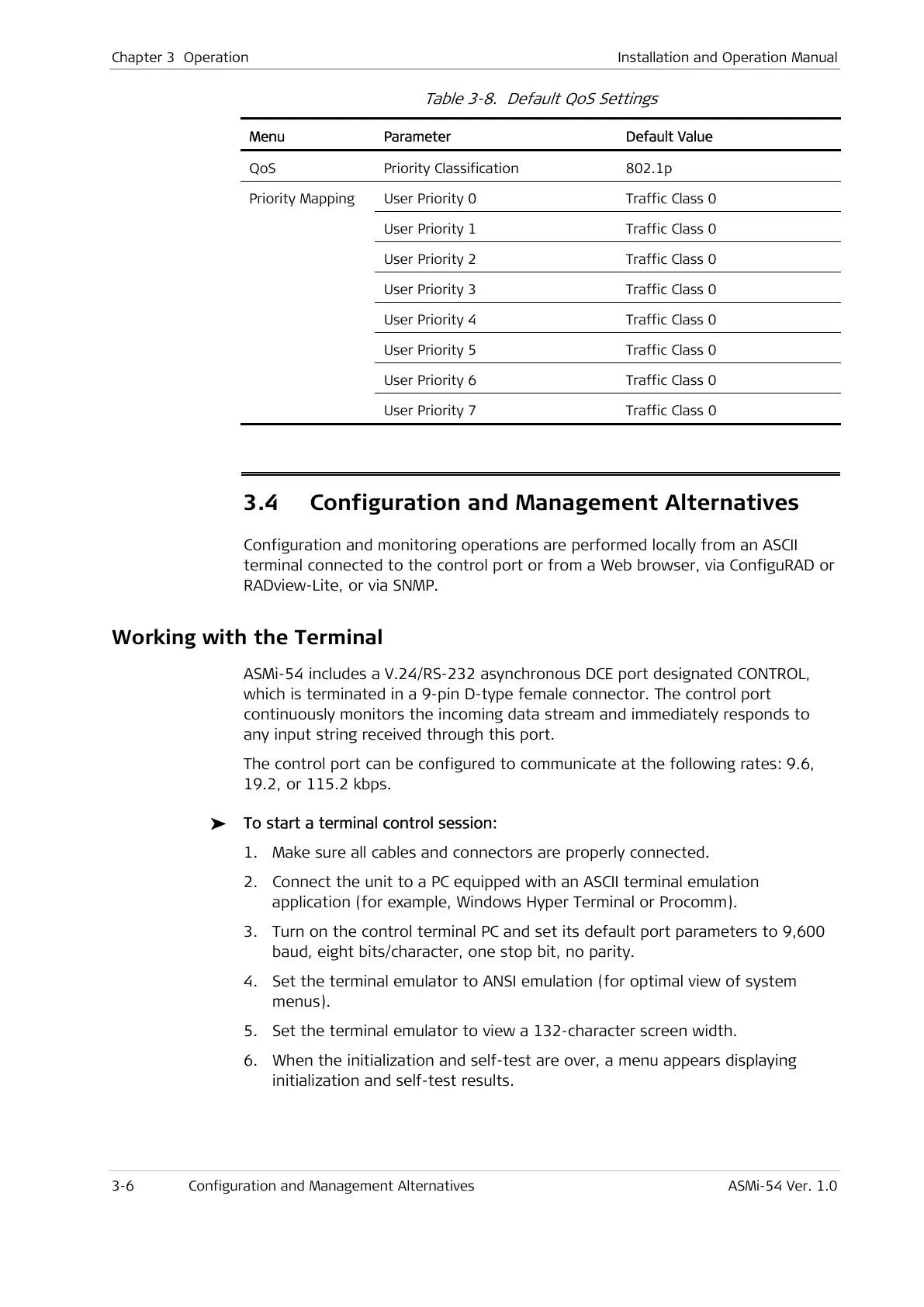

Chapter 3 Operation Installation and Operation Manual
3-6 Configuration and Management Alternatives ASMi-54 Ver. 1.0
Table 3-8. Default QoS Settings
Menu Parameter Default Value
QoS Priority Classification 802.1p
User Priority 0 Traffic Class 0
User Priority 1 Traffic Class 0
User Priority 2 Traffic Class 0
User Priority 3 Traffic Class 0
User Priority 4 Traffic Class 0
User Priority 5 Traffic Class 0
User Priority 6 Traffic Class 0
Priority Mapping
User Priority 7 Traffic Class 0
3.4 Configuration and Management Alternatives
Configuration and monitoring operations are performed locally from an ASCII
terminal connected to the control port or from a Web browser, via ConfiguRAD or
RADview-Lite, or via SNMP.
Working with the Terminal
ASMi-54 includes a V.24/RS-232 asynchronous DCE port designated CONTROL,
which is terminated in a 9-pin D-type female connector. The control port
continuously monitors the incoming data stream and immediately responds to
any input string received through this port.
The control port can be configured to communicate at the following rates: 9.6,
19.2, or 115.2 kbps.
To start a terminal control session:
1. Make sure all cables and connectors are properly connected.
2. Connect the unit to a PC equipped with an ASCII terminal emulation
application (for example, Windows Hyper Terminal or Procomm).
3. Turn on the control terminal PC and set its default port parameters to 9,600
baud, eight bits/character, one stop bit, no parity.
4. Set the terminal emulator to ANSI emulation (for optimal view of system
menus).
5. Set the terminal emulator to view a 132-character screen width.
6. When the initialization and self-test are over, a menu appears displaying
initialization and self-test results.
