Accuphase E-213 Service Information

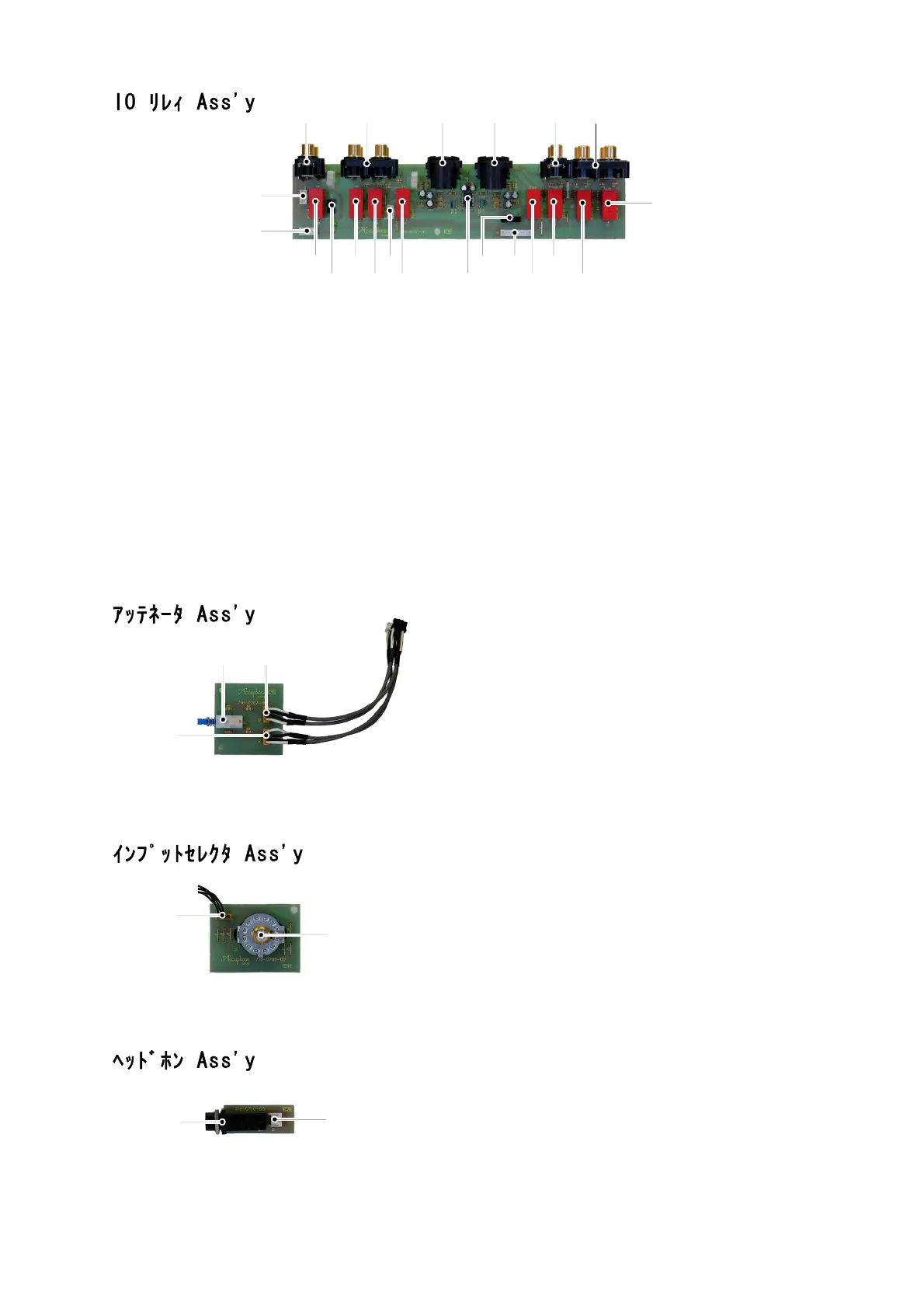

IO Relay
A
ssembly (716-0706-00)
Pin Jack JK1 302-0412-00
ﾋﾟﾝｼﾞｬｯｸ JK2,6 302-0209-00
JK5 302-0411-00
XLR(Canon) Receptacle JK3,4 302-8011-00
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ
Connector Plug K1 308-1010-00
ｺﾈｸﾀｼﾞｬｯｸ K2 308-0618-00
K3,6 308-0407-00
K4 308-0417-00
K5 308-0508-00
IC IC1 UPC4570C
Diode D1～8 MA165
ﾀﾞｲｵｰﾄﾞ
Relay RELAY1～8 362-1212-00
ﾘﾚｨ
Choke Coil L1 507-1005-00
ﾁｮｰｸｺｲﾙ
Electrolytic Capacitor C1,2,10,12 CE04W1C220VRE 22uF / 50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C3,11 CE04W1E220KZEE 22uF / 25V
C6,7 CE04W1E220RF0 22uF / 25V
Ceramic Capacitor C4,8 CC14CH1H220JS 22pF / 50V
磁器ｺﾝﾃﾞﾝｻ C5,9 CC92CH1H100F 10pF / 50V
R1,3,5,7,9,11, RD142CA104J 100kΩ 1/6W
13～15,26～29,32
R2,4,6,8,10,12 RD142EA101J 100Ω 1/4W
Carbon Film Resistor R17,23 RD142CA123J 12kΩ 1/6W
炭素皮膜抵抗器 R18,24 RD142CA243J 24kΩ 1/6W
R19,25 RD142CA221J 220Ω 1/6W
R30,31 RD142CA101J 24kΩ 1/6W
Metal Film Resistor R16,22 RN142
C
K1212F 12.1kΩ 1/4W
金属皮膜抵抗器 R20,21 RN142EK2432F 24.3kΩ 1/4W
K1
IC1 RELAY2
－6－
JK3
JK4
JK2
JK5
JK1
RELAY3
RELAY4
K2
K3
RELAY6
RELAY1
RELAY5
Input Selector Assembly (716-0708-00)
PC Bord 115-1593-00
PCﾎﾞｰﾄﾞ
Connector Assembly K1 309-3448-04
ｺﾈｸﾀAss'y
Rotary Switch S1 339-0002-00
ﾛｰﾀﾘｽｲｯﾁ
S1
K1
JK6
RELAY7
K4
K5
RELAY8
K6
Attenuator Assembly (716-0707-00)
PC Bord 115-1592-00
PCﾎﾞｰﾄﾞ
Connector Ass'y K1 309-3447-04
ｺﾈｸﾀAss'y K2 309-3446-04
Push Switch S1 354-1218-00
ﾌﾟｯｼｭｽｲｯﾁ
Carbon Film Resistor R1,2 RD142CA513J 51KΩ 1/6W
炭素皮膜抵抗器 R3,4 RD142CA912J 9.2kΩ 1/6W
S1
K1
K2
Head Phone Assembly (716-0710-00)
PC Bord 115-1596-00
PCﾎﾞｰﾄﾞ
Head Phone Jack JK1 302-1204-00
ﾍｯﾄﾞﾌｫﾝｼﾞｬｯｸ
Connector Plug K1 308-0311-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
K1
JK1
