Accuphase E-213 Service Information

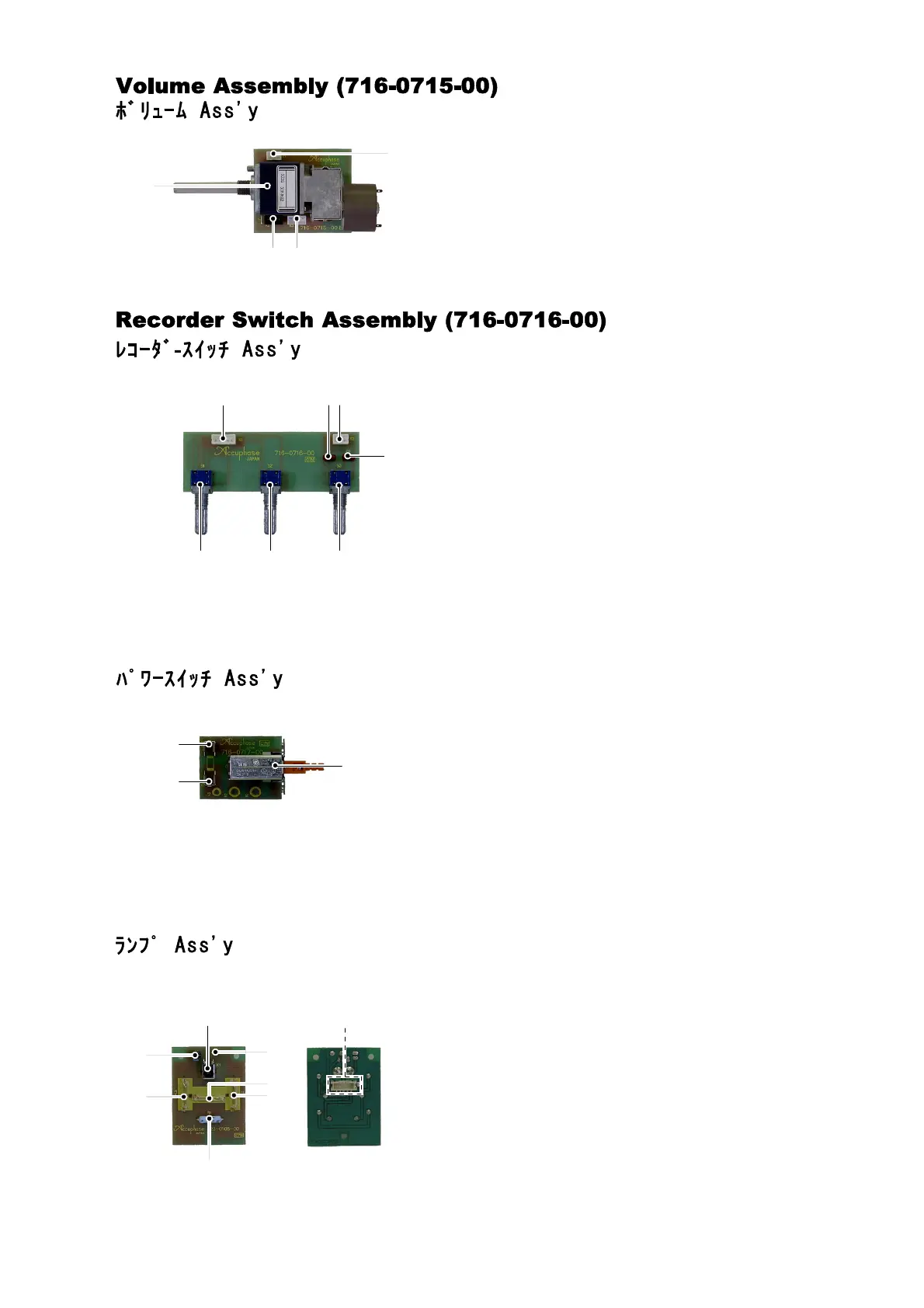

Lamp Assembly (723-0108-00)
-８-
Connector Plug K1 308-0508-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0306-00
Rotary Switch S1 336-3010-10
ﾛｰﾀﾘｰｽｲｯﾁ S2 336-2007-00
S3 336-4010-10
Polyester Capcitor C1,2 CQ922M2A103K-B 0.01uF/100V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
PC Board 115-1599-00
PC ﾎﾞｰﾄﾞ
Pilot Lamp PL1,2,3 176-7501-00
ﾊﾟｲﾛｯﾄﾗﾝﾌﾟ
Connector Plug K1 308-0530-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Infrared Ray Senser IC1 NJL62H380A
赤外線ﾚｼｰﾊﾞ
Electorlytic Capacitor C1 CE04W0J470MA
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
Carbon Film Resisor R2 RD142CA470J 47Ω 1/6W
炭素皮膜抵抗器
Oxide Metal Film Resistor R1 RS143DA680JS 68Ω 2W
金属酸化物皮膜抵抗器
Power Switch Assembly (716-0717-00)
PC Board 115-1606-00
PC ﾎﾞｰﾄﾞ
Fuse Holde FH1,2 306-2001-00
ﾌｭｰｽﾞﾎﾙﾀﾞ
Push Switch S1 354-1024-00
ﾌﾟｭｼｭｽｲｯﾁ
Connector Plug K1 308-0306-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0417-00
K3 308-0407-00
Variable Resistor VR1 575-2020-00 50kΩ
可変抵抗器
C1
PL3
R1
PL1
PL2
IC1
K1
K3
K2
K1
VR1
S1
S2
S3
C1
C2
K1
K2
FH2
FH1
S1
R2
