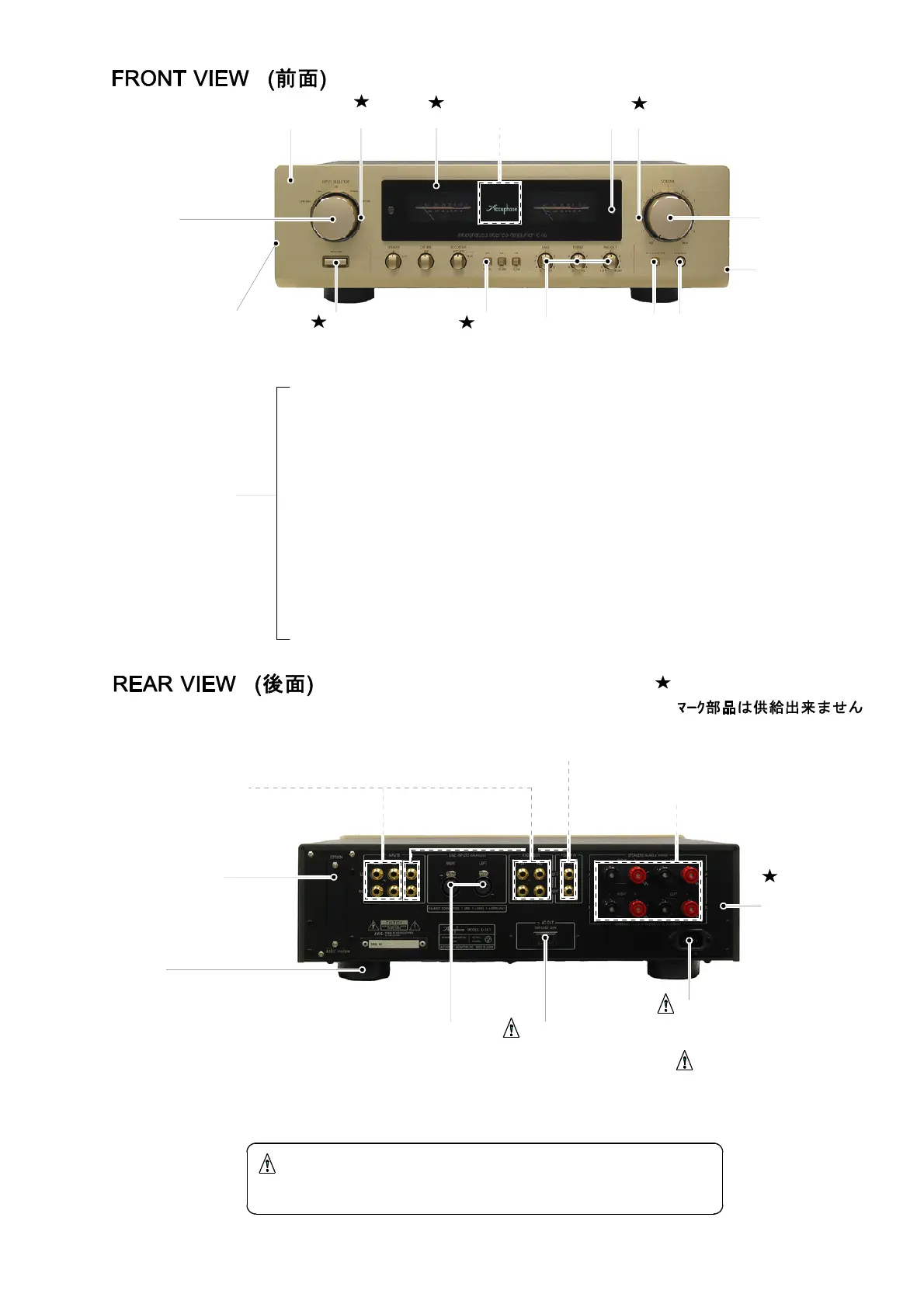

Accuphase E-213 - NAMING OF PARTS; Front Panel Controls; Rear Panel Connections

Speaker Terminal
SP端子
(313-1019-00)
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ /2pcs.
(302-0411-00)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ/12pcs.
(254-2015-04)
Foot
脚
(238-0023-00)
Blnding B Screw
ﾌﾞﾚｻﾞｰBﾀｲﾄねじ/4pcs.
(611-0414-02)
Decoration Plate
ｽﾛｯﾄﾊﾟﾈﾙ
(159-0059-14)
Fixing Screw
飾りﾈｼﾞ/2pcs.
(630-0302-04)
XLR (Cannon) Receptacle
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ/2pcs.
(302-8011-00)
Connector Cover / Female
ｺﾈｸﾀｶﾊﾞ/ 2pcs.
(254-2012-00)
AC Outlet
ACｿｹｯﾄ /J type only
(305-1205-00)
AC Inlet
AC ｺﾈｸﾀﾌﾟﾗｸﾞ
(301-3304-00)
Power Supply Cord
電源ｺｰﾄﾞ
J type:680-1204-00
U tyep:680-2401-00
E type:680-3402-00
Rear Panel
ﾊﾞｯｸﾊﾟﾈﾙ
(135-0171-02)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0183-01)
1 Front Panel=131-0183-01
ﾌﾛﾝﾄﾊﾟﾈﾙ
2 Panel End Cap=132-0109-04
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ
3 Front Arcylic=172-0133-03
ﾌﾛﾝﾄｱｸﾘﾙ
4 Decoration Screw=630-0304-14
飾りﾈｼﾞ
Washer =637-9045-04
ﾜｯｼｬ
5 Push-button=388-5044-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /POWER
Coil Spring=285-1016-04
Frame=113-0100-14
E-ring=647-1054-00
1pce.
2pcs.
2pcs.
2pcs.
2pcs.
1pce.
1pce.
6 Push-button=389-5077-13
ﾌﾟｯｼｭﾎﾞﾀﾝ /MONO,COMP,TONE
Coil Spring=285-1023-04
Frame=113-0111-14
7 Lamp Assembly=723-0108-00
ﾗﾝﾌﾟAss'y
Frame=170-0058-22
ｴｽｶｯｼｮﾝ
8 Knob Base=170-0039-03/INPUT
9 Knob Base=170-0025-04/VOLUME
台座
4pcs.
3pcs.
3pcs.
1pce.
1pce.
1pce.
1pce.
1
2
4
5
9
3
7
6
8
Knob for VOLUME
ﾂﾏﾐ
(381-4406-04)
Head Phone Jack
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
(302-1204-00)
Knob for INPUT
ﾂﾏﾐ
(381-4405-04)
Knob for SP,EXT,REC,BAL,
BASS,TREBLE
(384-1501-04)
－２－
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ /2pce.
(302-0209-00)
2
6
mark parts not supplied
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
