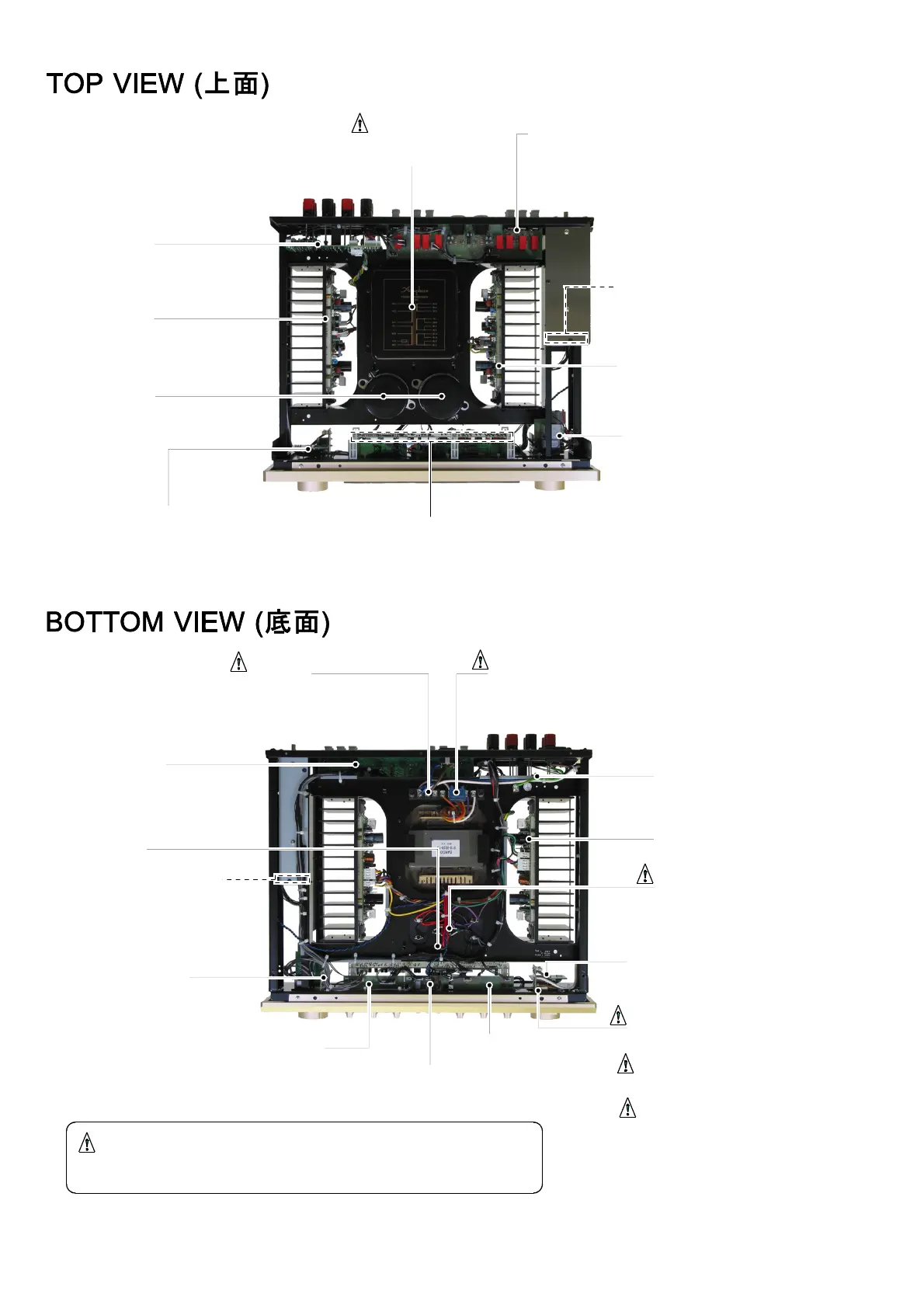

Accuphase E-213 Service Information

IO Relay Assembly
IOﾘﾚｨ Ass'y
(716-0706-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-3020-20)
Logic Assembly
ﾛｼﾞｯｸ Ass'y
(721-0080-00)
Input Selector Assembly
ｲﾝﾌﾟｯﾄｾﾚｸﾀ Ass'y
(716-0708-00)
Connector Board Assembly
ｺﾈｸﾀﾎﾞｰﾄﾞ Ass'y
(716-0709-00)
Volume Assembly
ﾎﾞﾘｭｰﾑ Ass'y
(716-0715-00)
Variable Resistor
可変抵抗器
(575-2020-00)
Power Amp Assembly
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y
(717-0083-00)
Protection Assembly
ﾌﾟﾛﾃｸｼｮﾝ Ass'y
(720-0072-00)
Electrolytic Capacitor
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
C001,002:22,000μF/63V
(CE621WG1J223YAQE)
Terminal
端子板
(313-4082-00)
Metallized Film Capacitor
MPｺﾝﾃﾞﾝｻ
C005:0.01μF/250V
(CF99MF2E103MR46)
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(716-0717-00)
*Power Push Switch
ﾌﾟｯｼｭｽｲｯﾁ
(354-1024-00)
*Fuse
T5A L AC250V /100-120V
(310-1502-00)
T2.5A L AC250V/220-240V
(310-1204-00)
Diode /D001
ﾀﾞｲｵｰﾄﾞ(S10VB20)
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
Attenuator Assembly
ｱｯﾃﾈｰﾀ Ass'y
(716-0707-00)
－３－
Power Amp Assembly
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y
(717-0083-00)
Power Amp Assembly
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y
(717-0083-00)
Connector Board Assembly
ｺﾈｸﾀﾎﾞｰﾄﾞ Ass'y
(716-0709-00)
Recorder Switch
Assembly
ﾚｺｰﾀﾞｰｽｲｯﾁ Ass'y
(716-0716-00)
Tone Volume Assembly
ﾄｰﾝﾎﾞﾘｭｰﾑ Ass'y
(716-0714-00)
Tone Switch Assembly
ﾄｰﾝｽｲｯﾁ Ass'y
(716-0713-00)
IO Relay Assembly
IOﾘﾚｰ Ass'y
(716-0706-00)
Protection Assembly
ﾌﾟﾛﾃｸｼｮﾝ Ass'y
(720-0072-00)
Posistor
ﾎﾟｼﾞｽﾀ
(412-0003-00)
Selector LED Assembly
ｾﾚｸﾀLEDAss'y
(723-0109-00)
