Accuphase E-213 Service Information

－７－

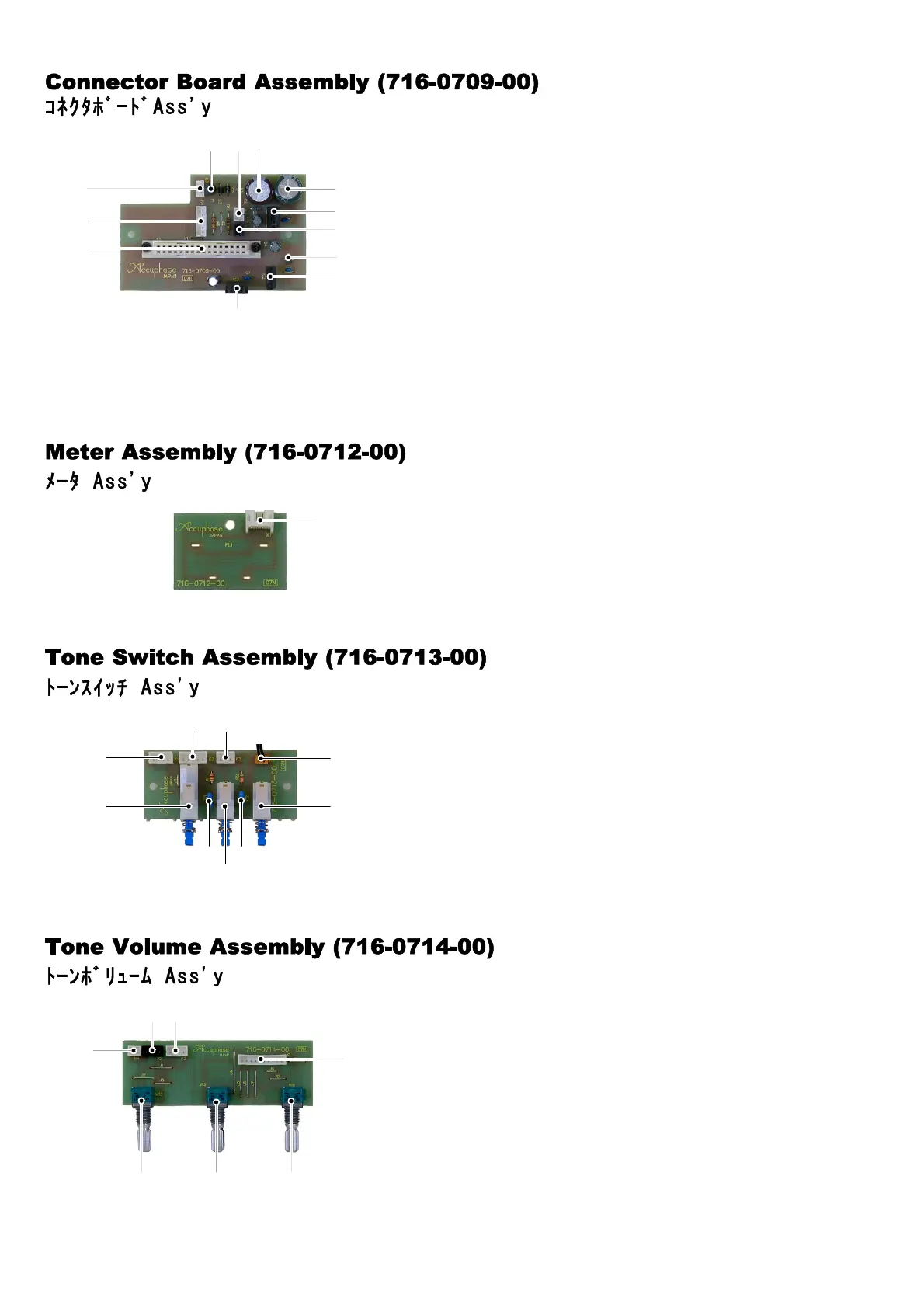

Connector Plug K1 308-0407-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0508-00
K3 308-0306-00
Push Switch S1 354-1412-00
ﾌﾟｯｼｭｽｲｯﾁ S2,3 354-1218-00
Polyester Film Capacitor C1,2 CF922N1H104JMMT 0.1uF 50V
ﾎﾟﾘｴｽﾃﾙﾌｨﾙﾑｺﾝﾃﾞﾝｻ
Carbon Film Resistor R1,2 RD142CA332J 3.3kΩ 1/6W
炭素皮膜抵抗器
Connector Plug K1 308-1010-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0417-00
K3 308-0407-00
K4 308-0206-00
Variable Resistor VR1,2 575-2405-10
可変抵抗器 VR3 575-2312-10
Diode D1 11EQS10
ﾀﾞｲｵｰﾄﾞ D2,3 1SR139-400
IC Protector F1 310-8251-00
ICﾌﾟﾛﾃｸﾀ
IC IC1 NJM79M12FA
IC2 NJM78M12FA
IC3 NJM78M05FA
C1 CE04W1E222CZE 2,200uF/25V
Electrolytic Capacitor C4,6 CE04W1H100CZE 10uF / 50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C5 CE04W1E222KMQ 2,200uF/25V
C8 CE04W0J101VRE 100uF /6.3V
Ceramic Capacitor C2,3,7 CK92Y5V1H104Z 0.1uF / 50V
磁器ｺﾝﾃﾞﾝｻ
Carbon Film Resistor R1,2 RD142EA100JFS 10Ω 1/4W
炭素皮膜抵抗器 R3 RD142EA240JFS 24Ω 1/4W
R4,5 RD142EA101J 100Ω 1/4W
Connector jack K1 307-3204-00
ｺﾈｸﾀｼﾞｬｯｸ
Connector Plug K2 308-0206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3 308-0207-00
K4 308-0606-00
K5 308-0214-00
IC1
K5
IC2
IC3
K2
K3
K4
K1
PC Bordo 115-1598-00
PCﾎﾞｰﾄﾞ
Connector Plag K1 308-0412-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
K1
K4
VR3
VR2 VR1
K2
K3
K1
K1
S1
S2
C1
C2
K4
K3
K2
S3
C1
C5
F1
D1
