Accuphase E-213 Service Information

-11-
Q1IC5
K1
C11
C10

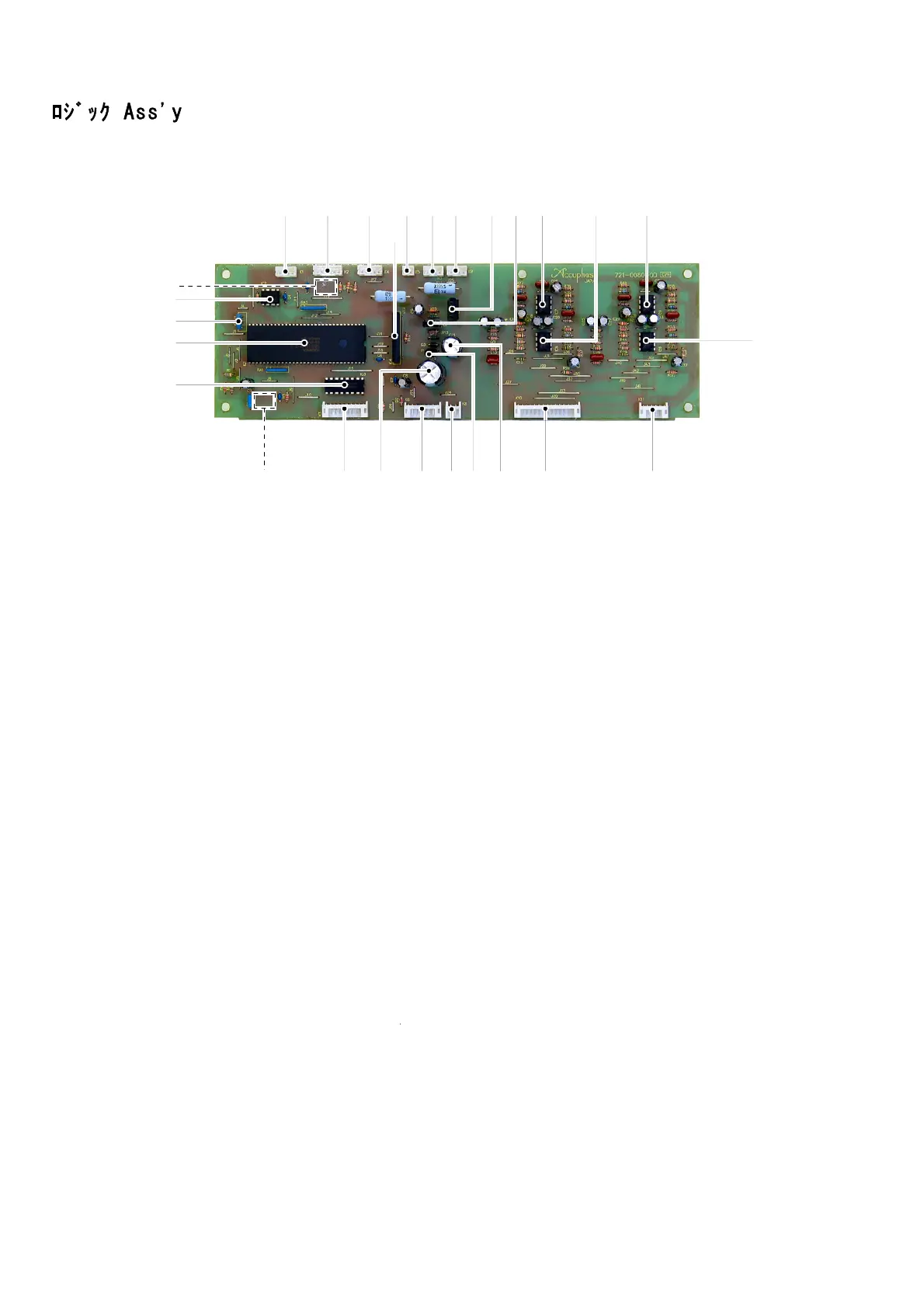

Logic
A
ssembly (721-0080-00)
Ceramic Capacitor C3,4,5,6,7 CK92Y5V1H104Z 0.1uF/50V
磁器ｺﾝﾃﾞﾝｻ C15,22,28,35 CC14CH1H101JS 100pF/50V
Polyester Film Capacitor C1 CF922N1H104JMMT 0.1uF /50V
ﾎﾟﾘｴｽﾃﾙﾌｲﾙﾑｺﾝﾃﾞﾝｻ
Polyester Capacitor C13,26 CQ922M1H223J-B 0.023uF/50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ C17,23,30,36 CQ922M1H331K-B 330pF / 50V
C19,32 CQ922M1H101K-B 100pF / 50V
R1,2 RD142CA105J 1MΩ 1/4W
R3,9,19,41 RD142CA102J 1kΩ 1/4W
R4,5,6 RD142CA473J 47kΩ 1/6W
R7 RD142CA911J 900Ω 1/6W
R10 RD142CA472J 4.7kΩ 1/6W
Carbon Film Resistor R12 RD142EA152JFS 1.5kΩ 1/4W
炭素被膜抵抗器 R13,25,32,36 RD142CA101J 100Ω 1/6W
47,54,58
R14 RD142EA100JFS 10Ω 1/4W
R15 RD142CA332J 3.2kΩ 1/6W
R16,23,31,38 RD142CA272J 2.7kΩ 1/6W
46,53
R17,39 RD142CA152J 1.5kΩ 1/6W
R18,40 RD142CA162J 1.6kΩ 1/6W
R20,21,29,43 RD142CA562J 5.6kΩ 1/6W
44,51
R22,45 RD142CA240J 24Ω 1/6W
R24,42 RD142CA393J 39kΩ 1/6W
R27,34,49,56 RD142CA471J 470Ω 1/6W
R28,50 RD142CA103J 10kΩ 1/6W
R35,57 RD142CA104J 100kΩ 1/6W
R37,59 RD142CA510J 51Ω 1/6W
Resistor Array RA1 RD92AK06C473J18
抵抗ｱﾚｨ RA2 RD92AK07C473J18
Metal Film Resistor R26,33,48,55 RN142CK1961F 1.96kΩ1/6W
金属被膜抵抗器 R30,52 RN142CK5491F 5.49kΩ1/6W
Oxide Metal Film Resistor R8 RS143FA120JS-P 12Ω
/
3W
金属酸化物被膜抵抗器 R11 RS143FA330JS-P 33Ω
/
3W
Connector Plug K1,7,9 308-0407-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0606-00
K3 308-1014-00
K4 308-0508-00
K5 308-0206-00
K6 308-0809-00
K8 308-0213-00
K10 308-1511-00
K11 308-0609-00
IC Protector F1 310-8251-00
ICﾌﾟﾛﾃｸﾀ
Crystal XTAL1 527-0012-00
ｾﾗﾛｯｸ
Diode D1,2 MA165
ﾀﾞｲｵｰﾄﾞ D3 1SR139-400
IC1
(TMP87C800N-3G73)
426-0038-20
IC2 N93C46-WBN6P
IC IC3 TD62003AP
IC4 LB1642B
IC5 NJM78M05FA
IC6,7,8,9 UPC4570C
IC10 TC74VHC14F/EL
IC11 TC74HC595AF/EL
Transistor Q1 2SC3902-S/T
ﾄﾗﾝｼﾞｽﾀ
C2 CE04W1C101VRE 100uF /16V
C8 CE04W1V470VK 47uF /35V
Electorlytic Capacitor C9 CE04W1H220VK 22uF /50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C10 CE04W1E222VK 2.2kuF/25V
C11 CE04W1E471VK 470uF /25V
C12,25 CE04W1H2R2VK 2.2uF /50V
C14,27 CE04W0J101VRE 100uF /6.3V
C16 CE04W1E100ROA 10uF / 25V
C18,20,31,33 CE04W1H100VRE 10uF / 50V
C21,34 CE04W1H220KZEE 22uF / 50V
C24,37 CE04W1H4R7VK 4.7uF /50V
IC1
IC2
IC3
IC4
IC8
IC9IC6
IC7
K2
K5
K4
K7
K9
K3
K8K6
F1
K10
K11
XTAL1
IC10
IC11
