Accuphase E-213 Service Information

-10-
PC Board 115-1595-00
PCﾎﾞｰﾄﾞ
Connector Plug K2 308-0410-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3 308-0707-00
K4 308-0306-00
K5 308-0508-00
K6 308-0206-00
Output Terminal K1 313-1019-00
出力端子
Relay RELAY1,2 362-3204-10
ﾘﾚｲ RELAY3 362-2232-00
Potentiometer VR1,2 583-0524-00
半固定抵抗器
IC IC1 TA7318P-2
IC2 UPC1237HA
Diode D1 MA165
ﾀﾞｲｵｰﾄﾞ D2,3,4 MA167
Electorlytic C3 CE04W0J221VRE 220uF /6.3V
Capacitor C4 CE04W1V4R7VRE 4.7uF / 35V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C5 CE04W0J101VRE 100uF /6.3V
Ceramic Capacitor C9 CC14CH1H102JS 1,000pF/50V
磁器ｺﾝﾃﾞﾝｻ
Polyester Film C1,2 CF922N1H334J 0.33uFF/50V
Capacitor C8 CQ922M1H223J-B 0.022uF/50V
積層/ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Polypropylene C6,7 CQ922N2A223JAPSF 0.022uF/100V
Capacitor
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
R1,2 RD142EA101J 100Ω 1/4W
R3,4 RD142EA475J 4.7MΩ 1/4W
R5,6 RD142EA273J 27kΩ 1/4W
Carbon Film Resistor R11 RD142EA333J 33kΩ 1/4W
炭素皮膜抵抗器 R12,13,16 RD142EA473J 47kΩ 1/4W
R14 RD142HA183JFS 18kΩ 1/4W
R15 RD142EA243J 24kΩ 1/4W
R21,25 RD142EA331J 330Ω 1/4W
R26 RD142EA104J 100kΩ 1/4W
Oxide Metal Film R7,8 RS143DA362JS-P 3.6kΩ 2W
Resistor R9,10 RS143FA221JS-P 220Ω 3W
金属酸化物皮膜抵抗器 R19,20 RS143DA100JS-P 10Ω 2W
R23 RS143AA392JS-P 3.9kΩ 1W
Protction
A
ssembly (720-0072-00)
K1
K2
RELAY2
RELAY1
RELAY3
K6
K3
K5
K4
VR1
VR2
IC1
IC2
C5
C4
C6
C7
R20
R19
C3
R9
R10
R8
R7
R23

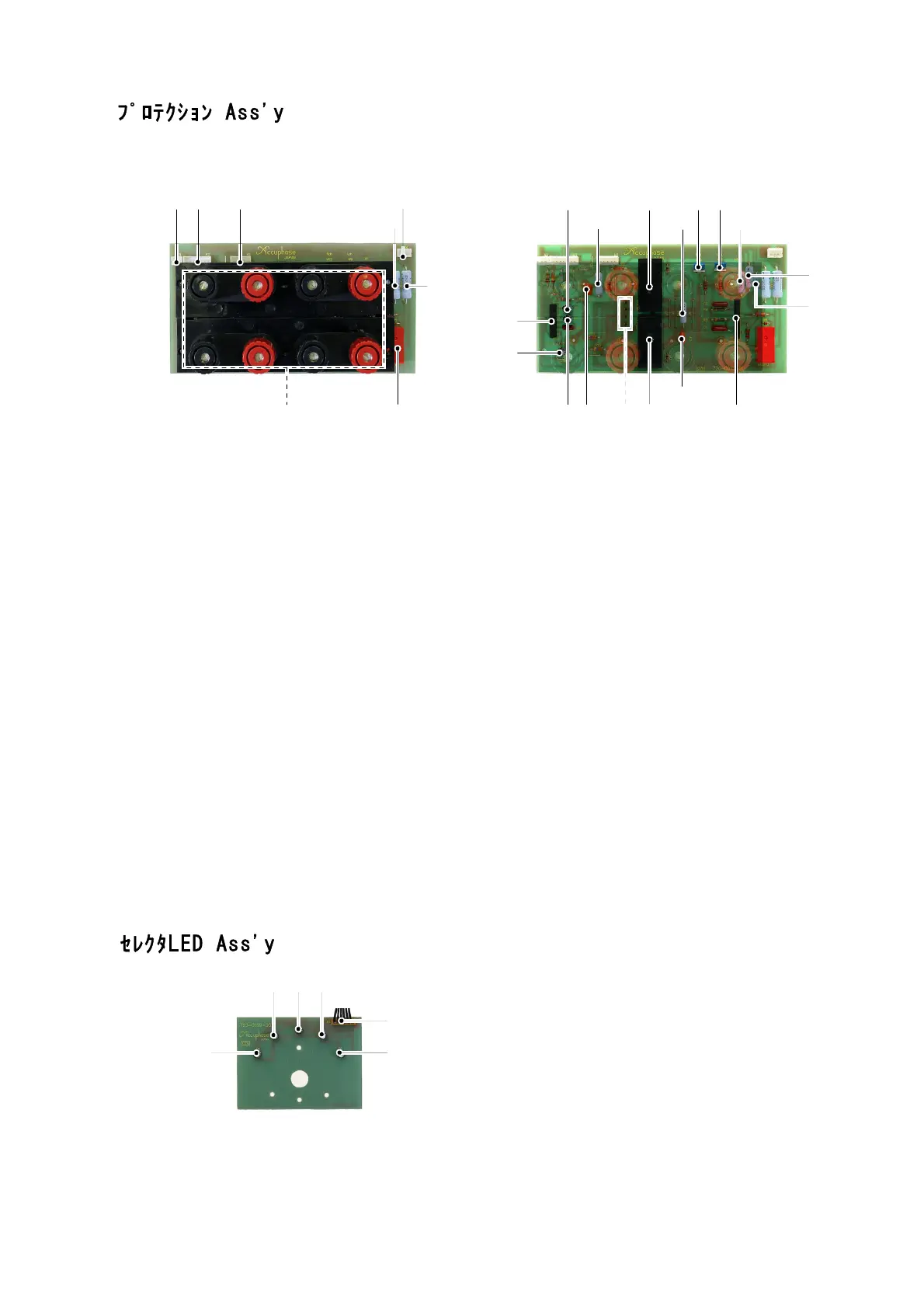

Selctor LED Assembly (723-0109-00)
PC Board 115-1600-00
PCﾎﾞｰﾄﾞ
LED Spacer
LEDｽﾍﾟｰｻ 250-1119-00
Connector Ass'y K1 309-2667-04
ｺﾈｸﾀAss'y
LED D1,2,3,4,5 SEL2610C
D1
D2
D3
D4
D5
K1
