User Manual System Components 2-5
BR42

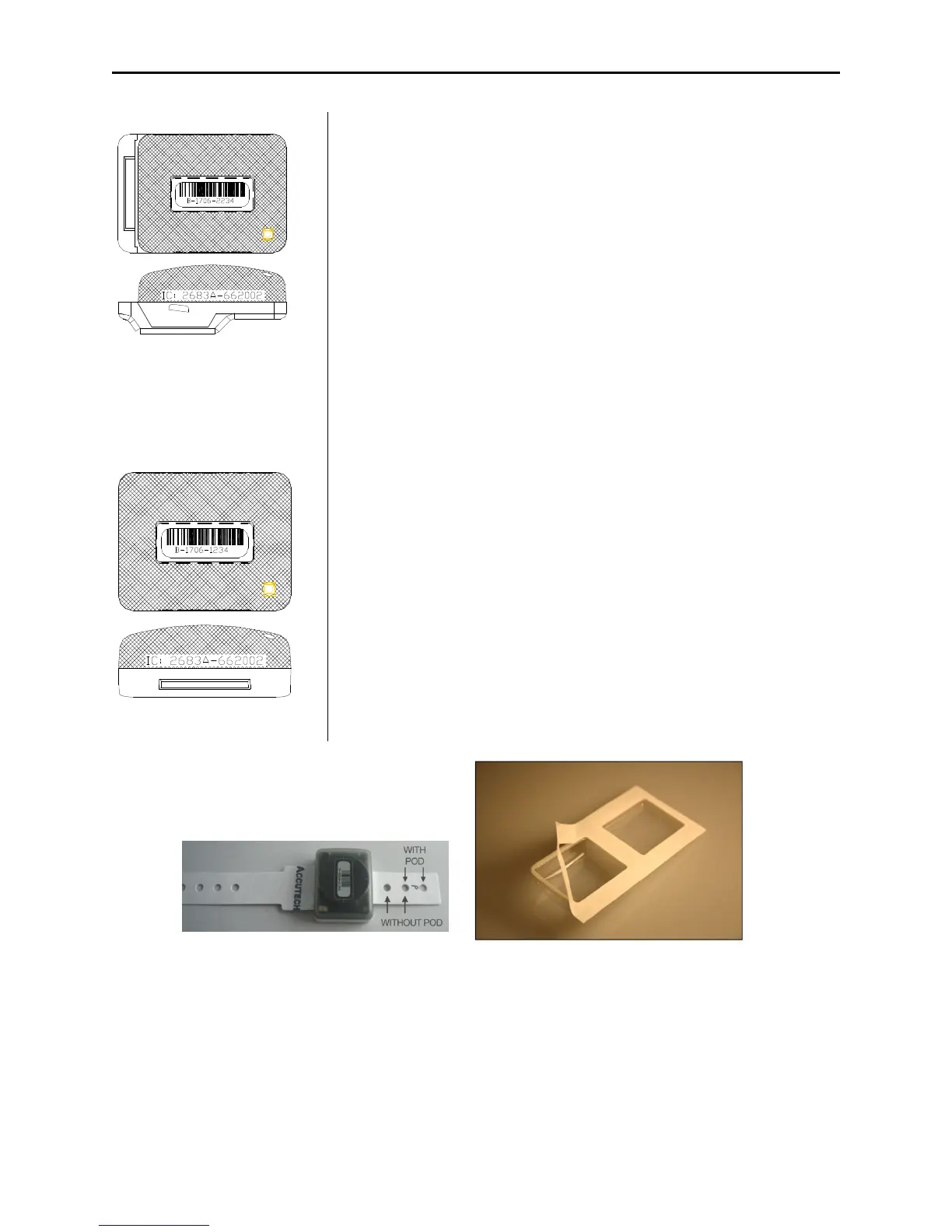

Figure 2.10
BR 4200 System Tag
(band not shown)
BR 4200 System Tags
In addition to the functionality of an IS 3200 System Tag, the BR 4200
System Tag (Figure 2.10) will alarm if the band is loosened, cut,
saturated, removed or tampered with.
BR 4200 System Tags are attached to infants with a conductive-fiber-
striped cloth band.
Figure 2.11
Cut Band Tag
Cut Band Tag
Similar to the functionality of a BR 4200 System Tag, Cut Band Tags
(Figure 2.11) will alarm if the band is cut and is designed for use in
pediatrics applications.
Cut Band Tags are attached to patients with a band (Figure 2.13) and
plastic covers (Figure 2.14), are activated/deactivated using an
S-TAD unit, and contain a visual pulse LED. Using plastic covers with
a Cut Band Tag will significantly reduce the need for sanitizing the
Tag between applications.
Figure 2.13 Cut Band band Figure 2.14 Plastic Covers
