Tags
 ES 2200 System Tags
 IS 3200 System Tags
 BR 4200 System Tags
 Cut Band Tags
 Tag barcodes
 Visual Pulse LED
 Tag base color chart
 LED Tag
 Attaching Tags
 Tag and Band Maintenance
Note: The Tag Model CB’s Pod (plastic
covers) has not been evaluated by UL.
ES 2200 System Tags
ES 2200 System Tags (Figure 3.1 and 3.2) are
small wristwatch-sized devices worn by a
resident or attached to an asset. When a
resident or patient enters a Tx Activation
Field, the Tag sends a signal to the zone
Controller, via the Receiver. The zone
Controller processes this information for
appropriate control action or response (such
as sounding alarms, locking doors, and/or
deactivating elevators).
ES System 2200 Tags also contain a visual
pulse LED. Tags are activated/deactivated
with an S-TAD unit. Available in SB
(slotted back) or LT (long term) tag case
styles.
The ES 2200 System Tag band is made of
nylon-reinforced vinyl with nylon mesh. The
band is designed to resist tearing caused by
pulling or chewing on the band. However, if
the band becomes frayed or torn it will need
to be replaced. In long-term applications, the
band should be replaced periodically for
cleanliness.
IS 3200 System Tags
In addition to the functionality of an ES
2200 System Tag, IS 3200 System Tags
(Figure 3.1 and 3.2) are preprogrammed with
a number and assigned to a specific resident
or asset (via the Tag Test Station and
Accutech Software). Once assigned, the
computer associates a name, room number
and any other pertinent information about
the resident/asset with that Tag number.
IS 3200 System Tags also contain a visual
pulse LED. Tags are activated/deactivated
with an S-TAD unit. Available in SB
(slotted back) or LT (long term) tag case
styles.

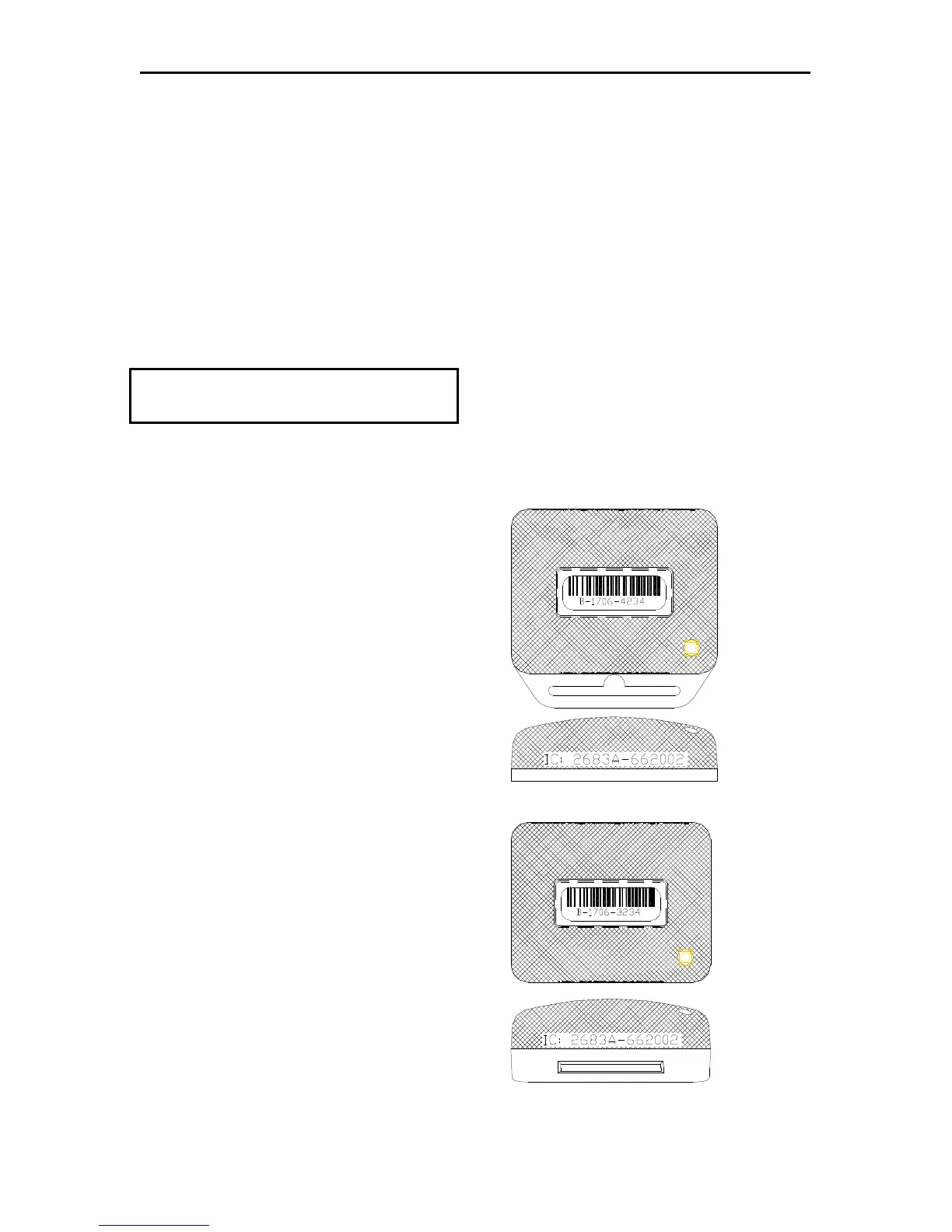

Figure 3.1 SB Tag case style
Figure 3.2 LT Tag case style
