2-8 System Components User Manual
Figure 2.23
Graphic Display Panel (GDP)
Graphic Display Panel (GDP)

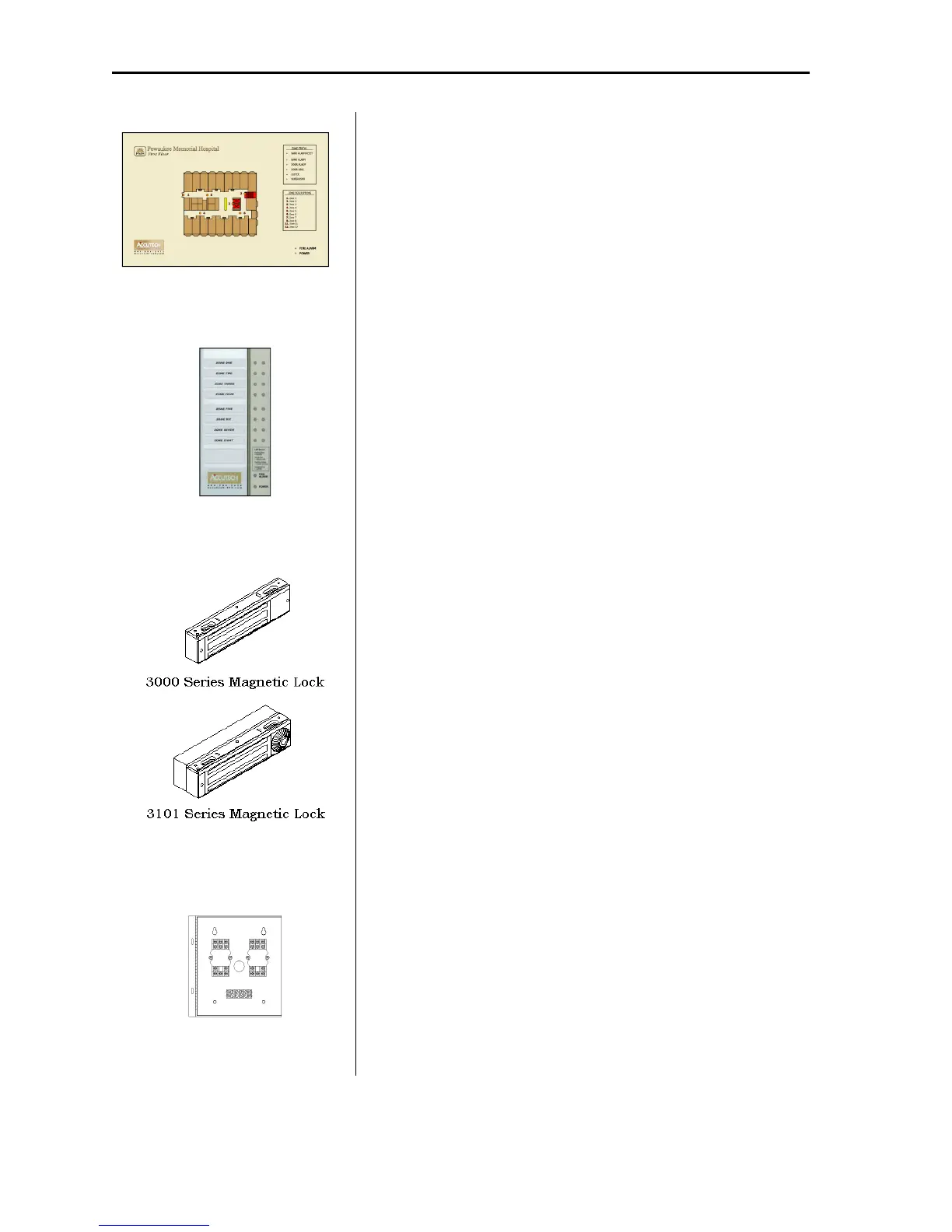

The Graphic Display Panel (GDP) (Figure 2.23) provides the staff
with a visual representation of the floor being monitored. GDPs
are custom-made to a facility’s floor plan and notify staff when
an alarm or event occurs in a monitored zone through a piezo
buzzer and alarm-specific LEDs.
Figure 2.24
Staff Alert Panel (SAP)
Staff Alert Panel (SAP)
The Staff Alert Panel (SAP) (Figure 2.24) notifies staff when an
alarm condition occurs in a monitored zone through a piezo
buzzer and alarm-specific LEDs.
Figure 2.25 Magnetic Locks
Magnetic Locks
Magnetic Locks (Figure 2.25) prevent unescorted egress.
The 3000 Series Magnetic Lock features:
1500-pound holding force
12V to 24V AC/DC
Unlocks instantly if the facility’s fire panel is activated
The 3101 Series Magnetic Lock features:
1200-pound holding force
12V AC/DC
Unlocks instantly if the facility’s fire panel is activated
NFPA101 Life Safety Code conformity (Delay Egress Circuitry)
a selectable nuisance delay
an Accutech-exclusive electromagnetic coil
an Accutech-exclusive firmware chip
Figure 2.26 Elevator Deactivation
Circuitry
Elevator Deactivation Circuitry
Elevator Deactivation Circuitry (Figure 2.26) is designed to
prevent someone (or an asset) wearing an Accutech tag from
using an elevator to leave a monitored floor. Using Relays
enclosed in the Elevator Deactivation Relay Cabinet, the Elevator
Company is able to interface with the Accutech System.
