1-15Chapter 1: The LC1400 System
~2’
from
floor

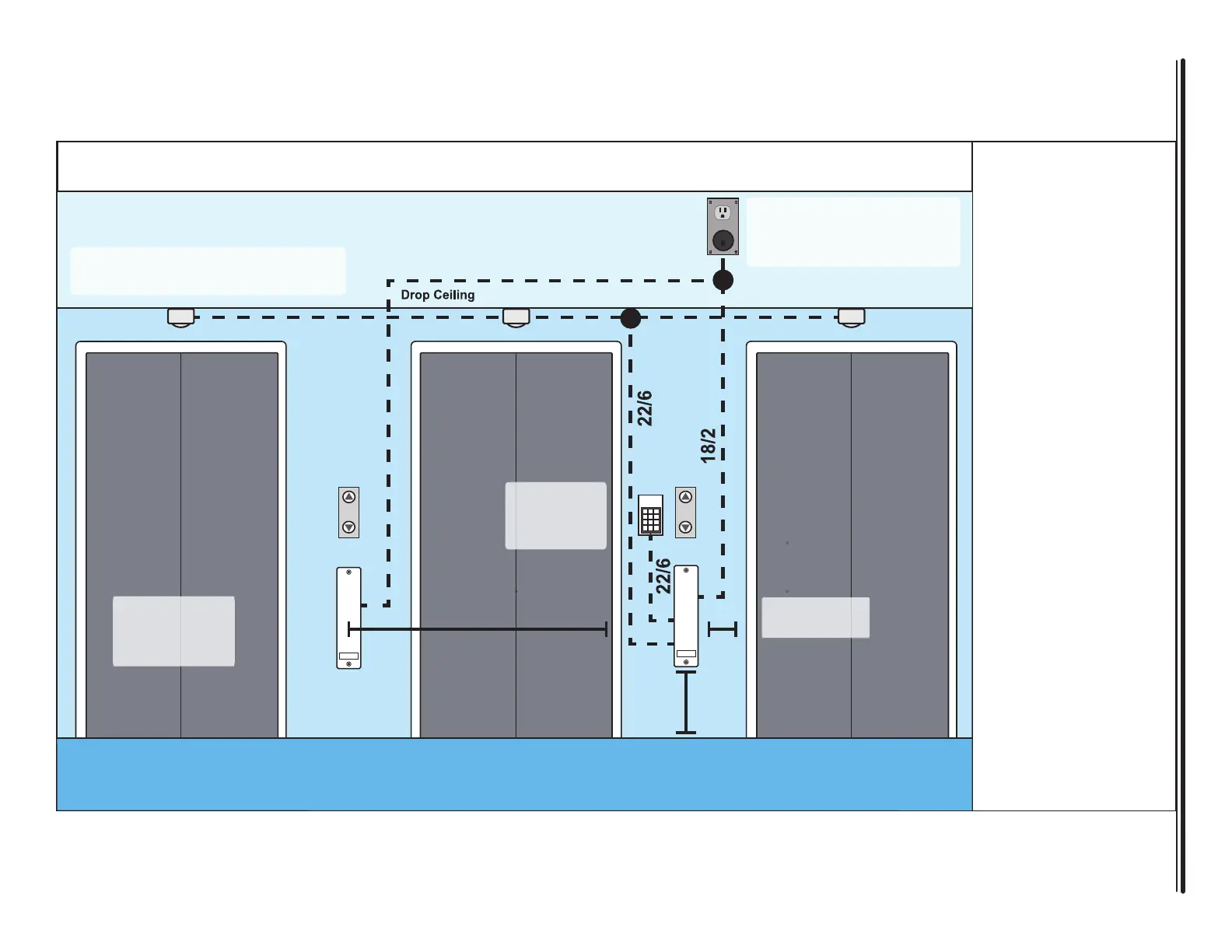

Typical LC1400 Configuration - Triple Elevator
15VDC/2A Plug-in
Power Supply
Part #500224
Passive Infrared Readers
Part #300302
KP103
Keypad
Part #650209
LC1400T
Part #662022
LCT-TX
Only
Part #672022
Min
3”
from
frame
Must be
less
than
4.5’
Important:
15VDC/2A Plug-in Power
Supply
(Part #500224):
•Installed above drop ceiling
Passive Infrared Readers
(Part #300302)
• Position facing down toward
floor
• Mounted at corner of wall
and ceiling
LC1400T / LCT-TX
•Not designed for ceilng
mount.
•Position at least 3” away from
any metal.
LC1400 Hallway/Elevator Kit
(Part #800128):
•LC1400T (1)
•LCT_TX (1)
•Keypad (1)
•Passive Infrared Reader (1)
•Cable Kit (1)
•15VDC/2A Power Supply (1)
Note: Two additional PIRs must
be added to this kit for this
configuration.
To Next Page
