Chapter 1: The LC1400 System1-16
Passive
Infrared
Reader
Part #300302
KP103
Keypad
Part #650209
Min 3”
wood block
Standoff due
to metal walls.

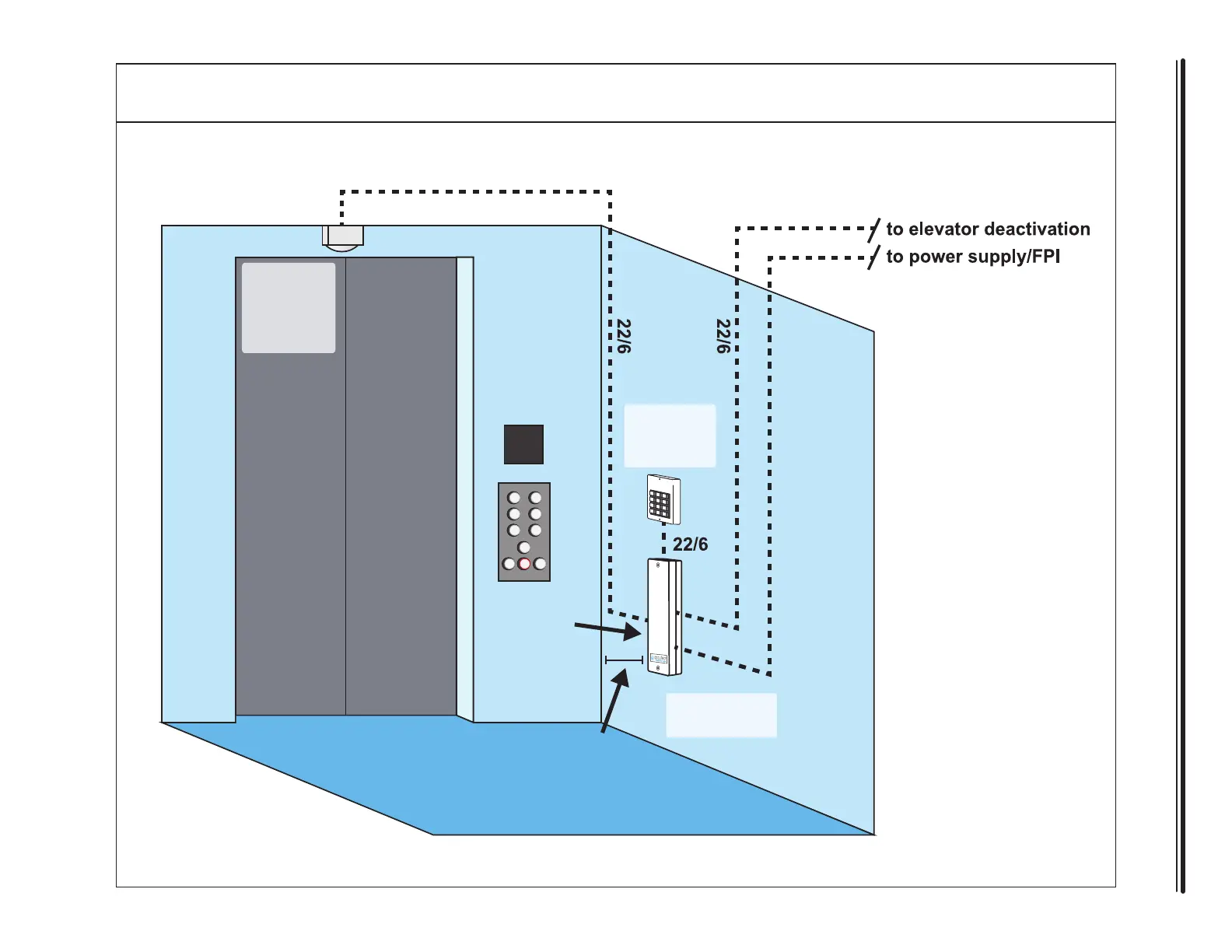

Typical LC1400 Conguration - Single Elevator Interior
*All cable requires shielding when inside elevator
Keep LC1400T
and Keypad as close to corner
of wall as possible to avoid being
in the way of wheelchairs,
carts, beds, etc.
18/4
LC1400T
Part #662022
LC1400 Hallway/Elevator Kit
(Part #800128):
•LC1400T (1)
•LCT-TX (1)
•Keypad (1)
•Passive Infrared Reader (1)
•Cable Kit (1)
•15VDC/2A Power Supply (1)
To Next Page
