1-17Chapter 1: The LC1400 System
Important:
15VDC/2A Plug-in Power
Supply
(Part #500224):
•Installed above drop ceiling
Magnetic Door Position
Switch
(Part #650514):
•Position on latch side of top
of door
LC1400T
•Not designed for ceilng
mount.
•Position at least 3” away
from any metal.
•Recommended distance
from door: 3” - 6” (Max. 18”)
LC1400 Single Door Kit
(Part #800126):
•LC1400T (1)
•Keypad (1)
•Magnetic Switch (1)
•Cable Kit (1)
•15VDC/2A Power Supply (1)
Note: A Lexan Standoff must
be added to this kit for this
configuration.

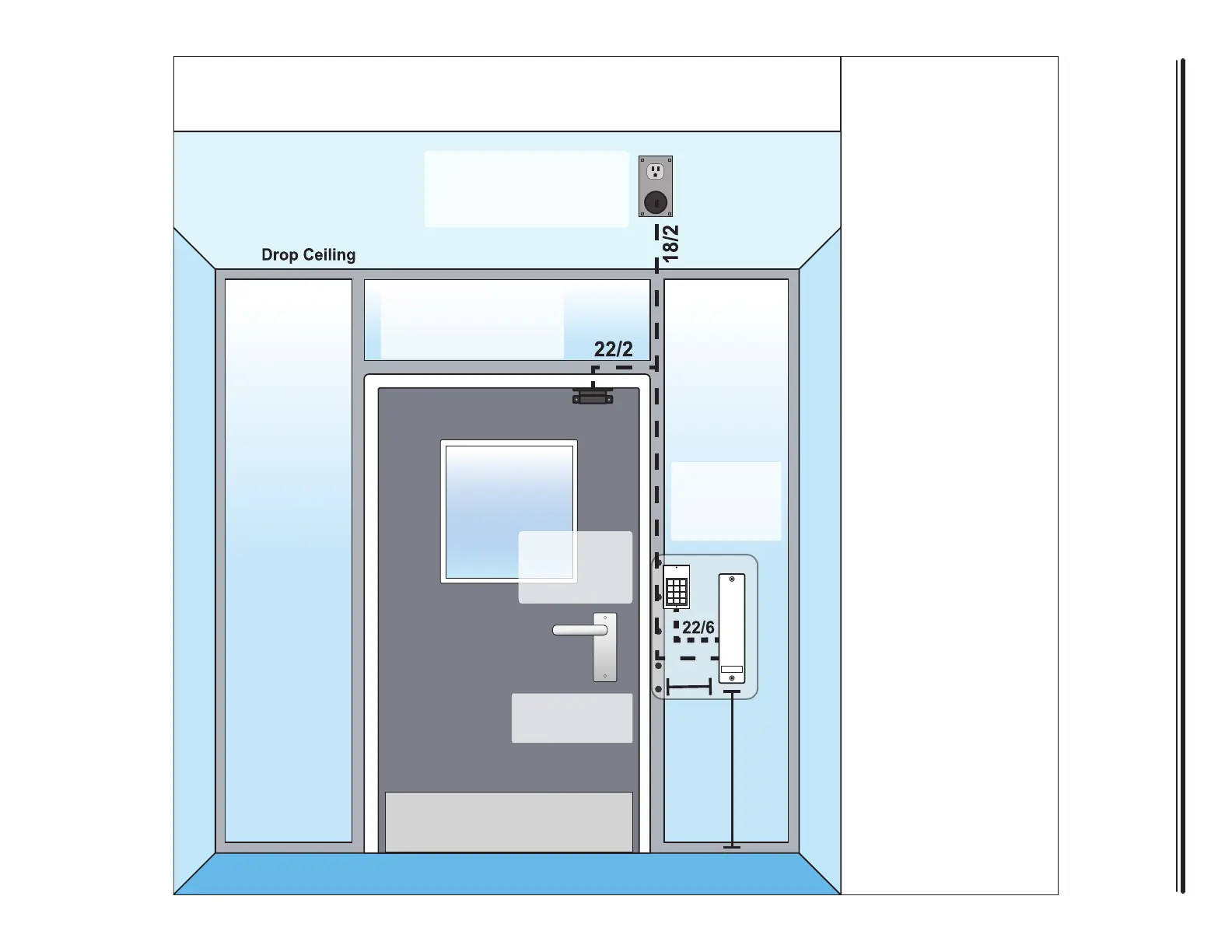

Typical LC1400 Configuration - Single door with
Outer Windows
LC1400T
Part #662022
KP103
Keypad
Part #650209
Lexan
Standoff
Part #200628
Magnetic Door
Position Switch
Part #650514
~2’
from
floor
Min
3”
from
frame
15VDC/2A Plug-in
Power Supply
Part #500224
Accutech
