Accutech LC1400 User Manual

Chapter 1: The LC1400 System1-18
Important:
15VDC/2A Plug-in Power
Supply
(Part #500224):
•Installed above drop ceiling
Magnetic Door Position
Switch
(Part #650514):
•Position on latch side of top
of door
LC1400T / LCT-TX
•Not designed for ceilng
mount.
•Position ferrite bar inside
enclosure at least 3” away
from any metal.
•Recommended distance
from door: 3” - 6” (Max. 18”)
-Position ~2” from floor
LC Double Door Kit
(Part #800122):
•LC1400T (1)
•LCT-TX (1)
•Keypad (1)
•Magnetic Switch (2)
•Cable Kit (1)
•15VDC/2A Power Supply (1)
Two Lexan Standoffs not
included and must be
purchased seperately.
LCT-TX
Only
Part #672022

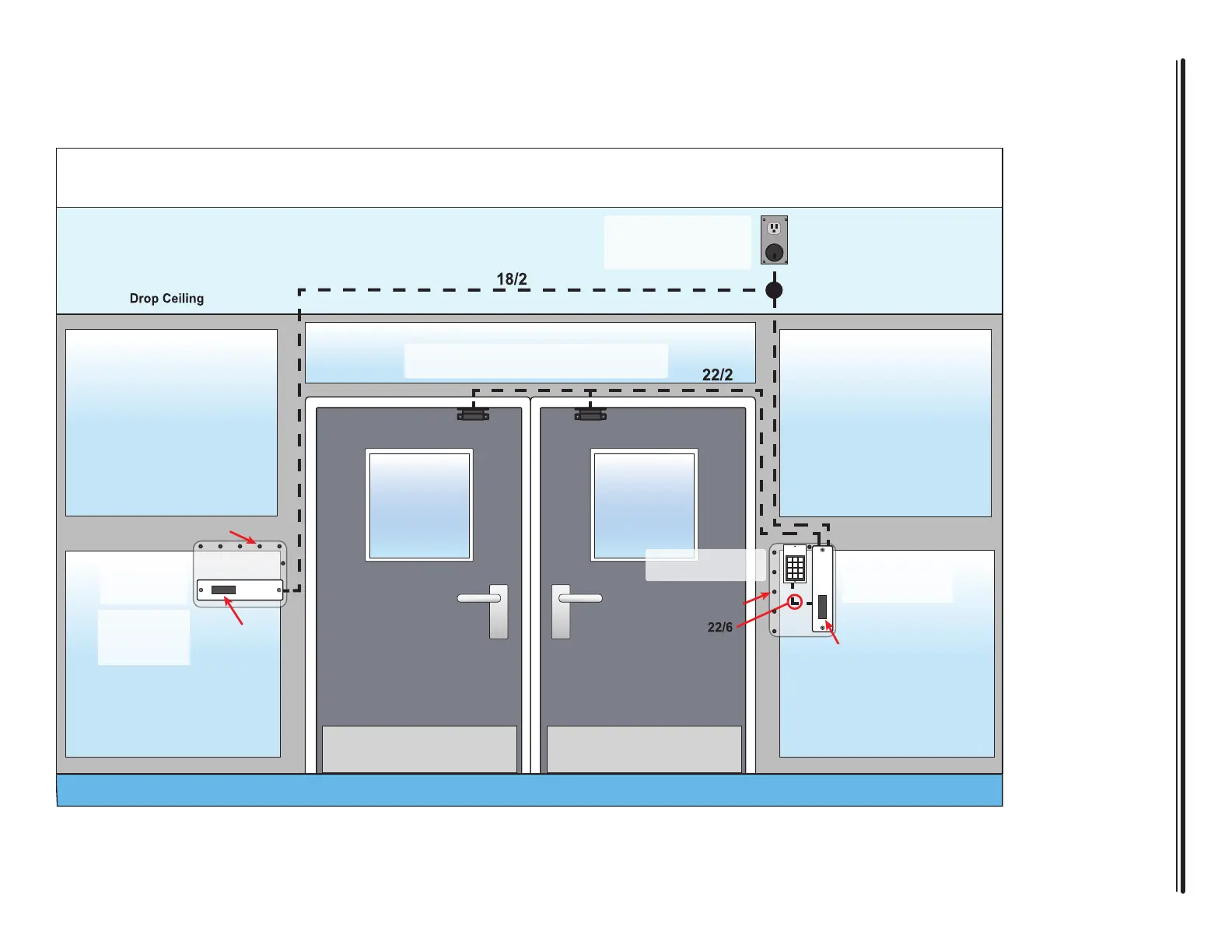

Typical LC1400 Configuration - Double Door with Outer Windows
LC1400T
Part 662022
KP103 Keypad
Part #650209
Lexan
Standoff
Part #200628
Magnetic Door Position Switches
Part #650514
15VDC/2A Plug-in
Power Supply
Part #500224
AccutechAccutech
Ferrite Bar inside
enclosure must be
min 3” from metal
frame
Ferrite Bar
inside
enclosure
must be
min 3” from
metal frame
Mounting Screws
Mounting Screws
