1-19Chapter 1: The LC1400 System

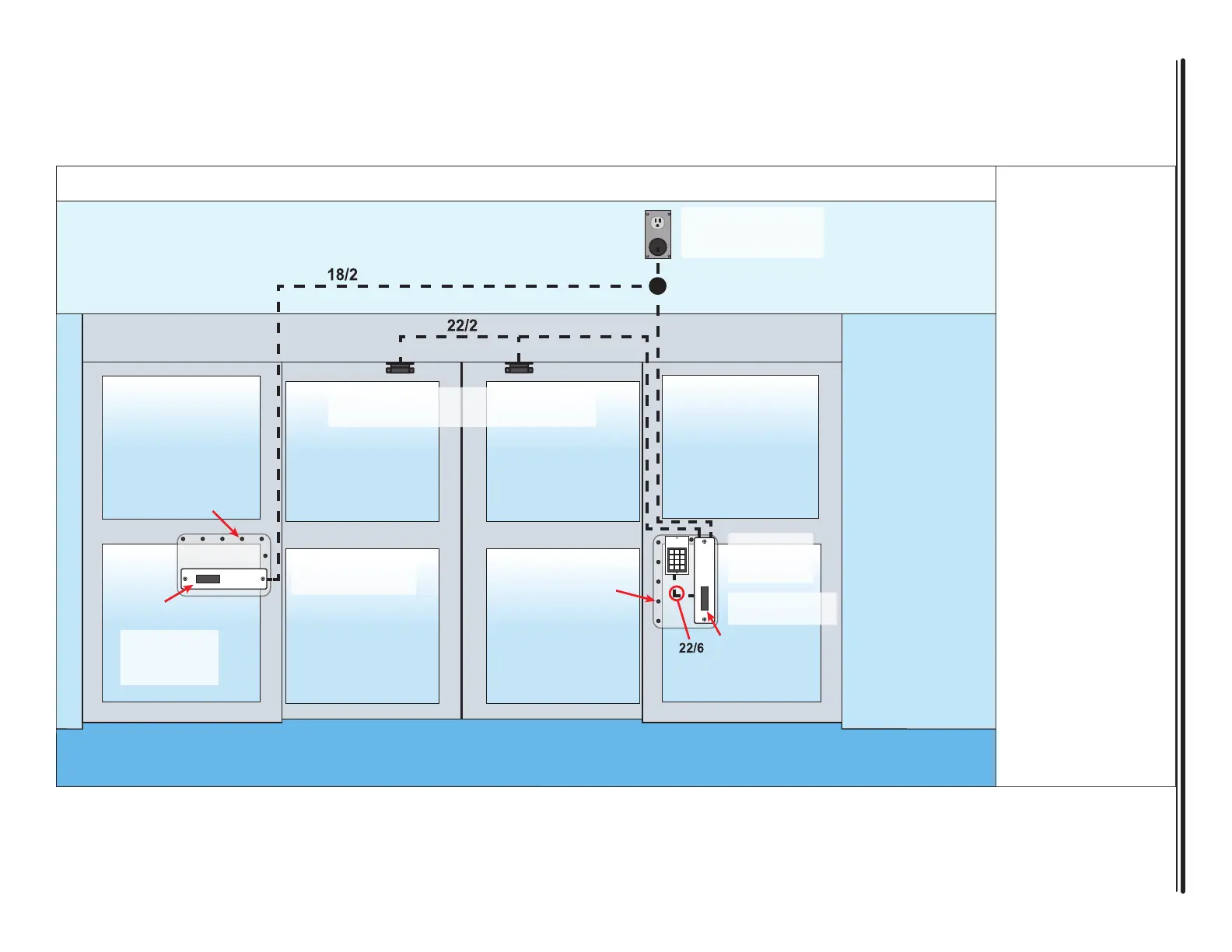

Typical LC1400 Configuration - Double Sliding Doors
LC1400T
Part #662022
Lexan Standoff
Part #200628
KP103
Keypad
Part #650209
15VDC/2A Plug-in
Power Supply
Part #500224
Magnetic Door Position Switches
Part #650514
Ferrite Bar inside
enclosure must be
min 3” from metal
frame
Mounting Screws
Mounting Screws
Ferrite Bar
inside
enclosure
must be
min 3” from
metal frame
LCT-TX
Only
Part #672022
Accutech
Accutech
Important:
15VDC/2A Plug-in Power
Supply
(Part #500224):
•Installed above drop ceiling
Magnetic Door Position
Switches
(Part #650514):
•Position on latch sides of top
of doors
LC1400T / LCT-TX
•Not designed for ceilng mount.
•Position ferrite bar inside
enslosure at least 3” away from
any metal.
•Recommended distance from
door: 3” - 6” (Max. 18”)
Lexan Standoff
(Part #200628):
•Mount at breakaway door on
oposite side of sliding glass
doors.
LC1400 Double Door Kit
(Part #800127):
•LC1400T (1)
•LCT-TX (1)
•Keypad (1)
•Magnetic Switch (2)
•Cable Kit (1)
•15VDC/2A Power Supply (1)
Two Lexan Standoffs not
included, and must be
purchased seperately.
To Next Page
