DRAIN VALVE
1. Unplug the Unit.
2. Once any water inside the cooking
chamber is cool, drain it from the
chamber.
3. Verify that the drain valve is cool before
proceeding with repair.
4. Turn the unit upside-down and remove
its legs. (Unbolt from stand and then
turn unit upside-down if applicable.)
5. Remove Bottom Cover by removing the
Sheet Metal Screws holding it in place.
(Remove Drain Pan Rails if applicable.)
6. Remove the Drain Handle Cover Plate,
and the insulation surrounding the Drain
Valve.
7. Remove the Drain Pipe from the Drain
Valve.
8. Remove the Drain Valve.
9. Re-install in reverse order. Ensure
Sealant is re-applied to all pipe
threading.

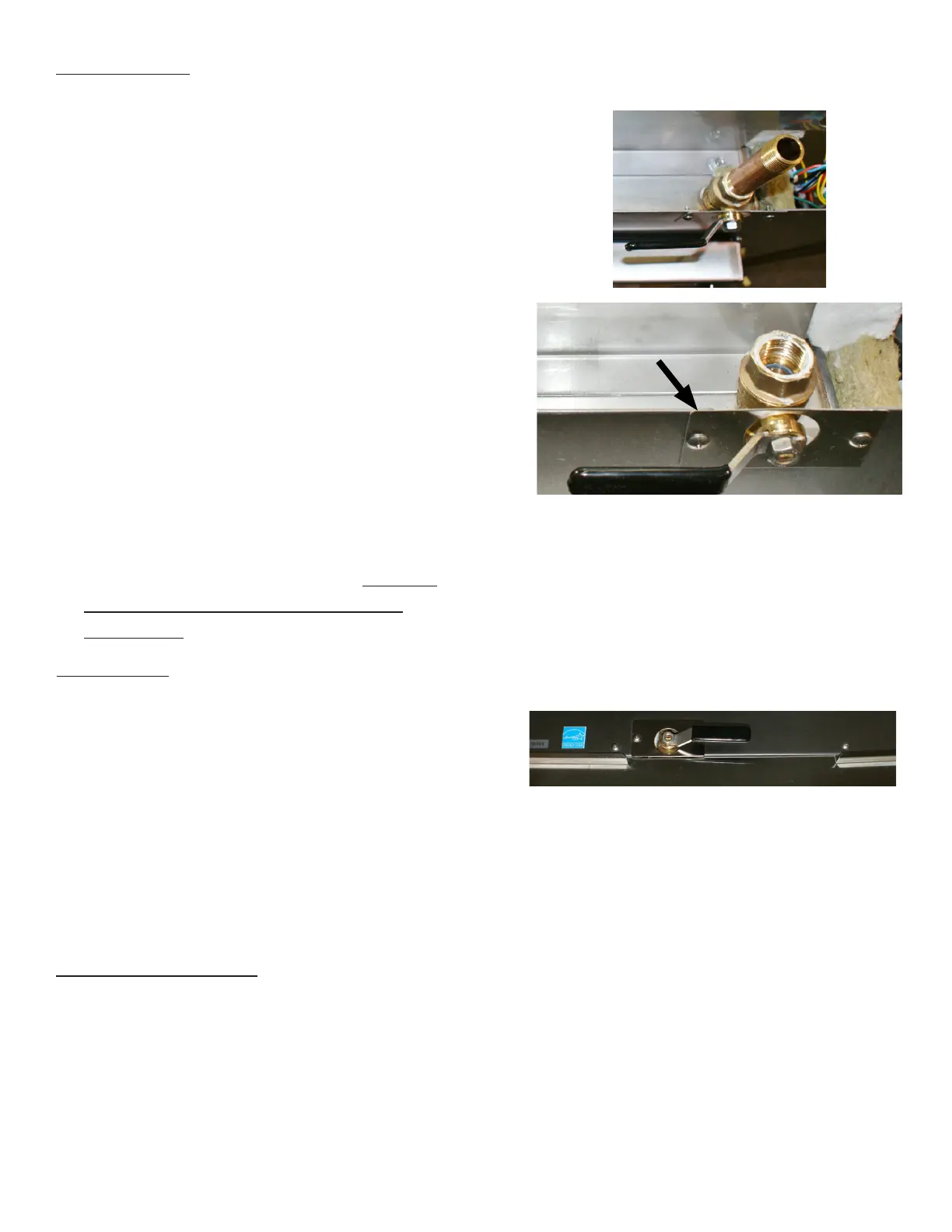

Drain Cover
Plate
DRIP EDGE
1. Unplug the Unit.
2. Remove the 4 Sheet Metal Screws at the
bottom of the Front Panel.
3. Slide the Drip Pan(s) out from between
the Front Panel and the Bottom Panel.
(Ensure the split Drip Pans are sloped
towards the center of the steamer.)
4. Re-install in reverse order.
Split Drip Edge
FIG 4.2G
FIG 4.2H
CONDENSATE TRAY
1. Power Unit o and allow to cool
2. Wipe condensate tray out with a cloth.
3. Pull Condensate tray out from pan rails.
4. Re-install in reverse order.
